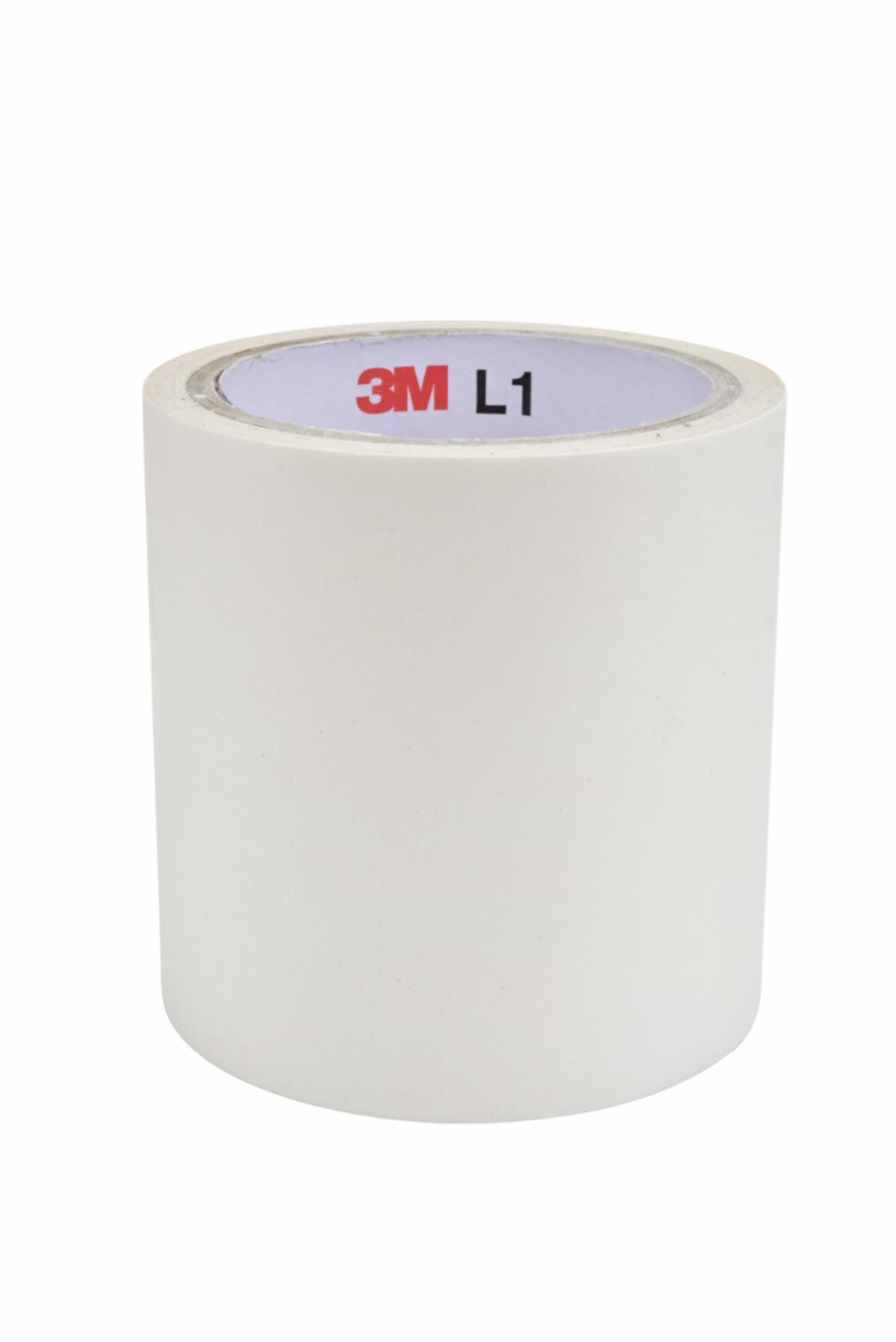

3M™ Double Coated Adhesive Tape L1+DCP

Options available
| Select product options for IDs.

Double-coated PET carrier provides added dimensional stability during lamination

Withstands temperatures up to 200°F / 93°C

Modified acrylic adhesive offers good initial tack and peel

View more details

Frequently viewed resources

Tech Data Sheet (0B)

Ask a 3M Expert

Specifications

Details

Highlights

Double-coated PET carrier provides added dimensional stability during lamination
Withstands temperatures up to 200°F / 93°C
Modified acrylic adhesive offers good initial tack and peel
White 74 lb. densified kraft (DK) liner for excellent processingq
1.5 mil on each side of 0.50 mil polyester (PET) carrier provides good adhesion to many open cell foam substrates

3M™ Double Coated Adhesive Tape L1+DCP is a 3.5 mil double-coated polyester (PET) tape that provides added dimensional stability and improved handing during laminating or die cutting processes, particularly on thin or flexible substrates. Adhesive coat weight of 1.5 mils on each side of a 0.50 mil PET carrier provides good adhesion to many foam substrates.

PET Carrier Boosts Dimensional Stability during Lamination
Designed for difficult bonding applications, 3M™ Double Coated Adhesive Tape L1+DCP features 1.5 mil of adhesive on each side of a 0.50 mil PET carrier. Withstanding temperatures of up to 200°F / 93°C , this 3.5 mil tape delivers high peel performance and bonds well to polyurethane (PU) foam, cross-linked polyethylene (PE) foam and microcellular urethane foam.

Recommended Applications:

Automotive interior bonding
Large area lamination

Double Coated Tapes Provide Solutions for Many Bonding Applications
In general, double coated (often referred to as double sided) adhesive tape is composed of a film or nonwoven tissue carrier coated on both sides with a pressure sensitive adhesive. These adhesive tapes can be applied by hand or with a wide web laminator.

Bringing Better Ideas to the Surface through Science and Innovation
In our 3M Industrial Adhesives and Tapes Division, we apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, our technologies help customers like you deliver competitive products to the market faster and more efficiently.
