3M™ Adhesive Transfer Tape L2+T5

3M Product Number L2+T5
Products
  • Withstands temperatures up to 225ºF (107ºC)
  • High initial tack to many open and closed cell foams
  • Excellent peel adhesion and shear strength
  • Bonds well to polyurethane (PU) ether, PU ester, cross-linked polyethylene foam, EPDM foam, neoprene foam, nitrile foam, microcellular foam
 More...
View all details
For industrial/occupational use only. Not for consumer sale or use.
Overall Width (Imperial)
Overall_Width_Imperial
Overall Width (Metric)
Overall_Width_Metric
Products Available
Available options:
 Overall Width (Imperial) and Overall Width (Metric)
All Options
  • Overall Length (Imperial)
    Overall Length (Metric)
    Overall Width (Imperial)
    Overall Width (Metric)
  • 3M™ Adhesive Transfer Tape L2+T5, Clear, 60 in x 250 yd, 5 mil, 3 rolls per pallet
    Overall Length (Imperial)
    250 yd
    Overall Length (Metric)
    228.6 m
    Overall Width (Imperial)
    60 in
    Overall Width (Metric)
    1524 mm
  • 3M™ Adhesive Transfer Tape L2+T5, Clear, 54 in x 250 yd, 5.0 mil, 1 Roll/Case
    Overall Length (Imperial)
    250 yd
    Overall Length (Metric)
    228.6 m
    Overall Width (Imperial)
    54 in
    Overall Width (Metric)
    1371.6 mm
Close
Details
  • Withstands temperatures up to 225ºF (107ºC)
  • High initial tack to many open and closed cell foams
  • Excellent peel adhesion and shear strength
  • Bonds well to polyurethane (PU) ether, PU ester, cross-linked polyethylene foam, EPDM foam, neoprene foam, nitrile foam, microcellular foam

3M™ Adhesive Transfer Tape L2+T5 is a 5-mil transfer tape that offers maximum conformability and good adhesion to open and closed cell foam surfaces. It features an 83 lb. tan unprinted polycoated kraft liner for superior processing.

Recommended for Lamination to Many Open and Closed Cell Foams

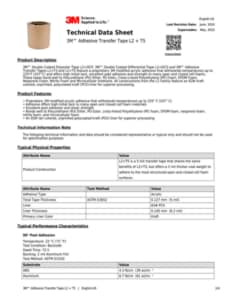

3M™ Adhesive Transfer Tape L2+T5 features 5.0 mils (.12 mm) of adhesive coated on a 6.2 mils (.14 mm), 83 lb. polycoated kraft paper liner. This adhesive transfer tape (PDF, 407.6 Kb) is recommended for lamination to many open and closed cell foams, where adhesive conformability and wet-out is valued over dimensional stability during lamination. It offers initial high tack to many open and closed cell foams and can withstand temperatures up to 225°F (107°C). With excellent peel adhesion and shear strength, it offers a reliable bond on polyurethane (PU) ether, PU ester, cross-linked polyethylene foam, EPDM foam, neoprene foam, nitrile foam and microcellular foam.

Recommended Applications

  • Foam lamination

Understanding Adhesive Transfer Tapes
3M adhesive transfer tapes are pressure sensitive adhesives coated on a release liner, without a scrim or carrier. These adhesive tapes are more conformable than double coated adhesive tapes for applications with textured or irregular surfaces. For application, the tape is positioned, adhesive side down, to a surface and the liner is removed, exposing the backside of the adhesive to the joining surface.

Bringing Better Ideas to the Surface through Science and Innovation
In our 3M Industrial Adhesives and Tapes Division, we apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, our technologies help customers like you deliver competitive products to the market faster and more efficiently.

Click here for more information on 3M Design Solutions. (PDF, 44.94 Mb)
