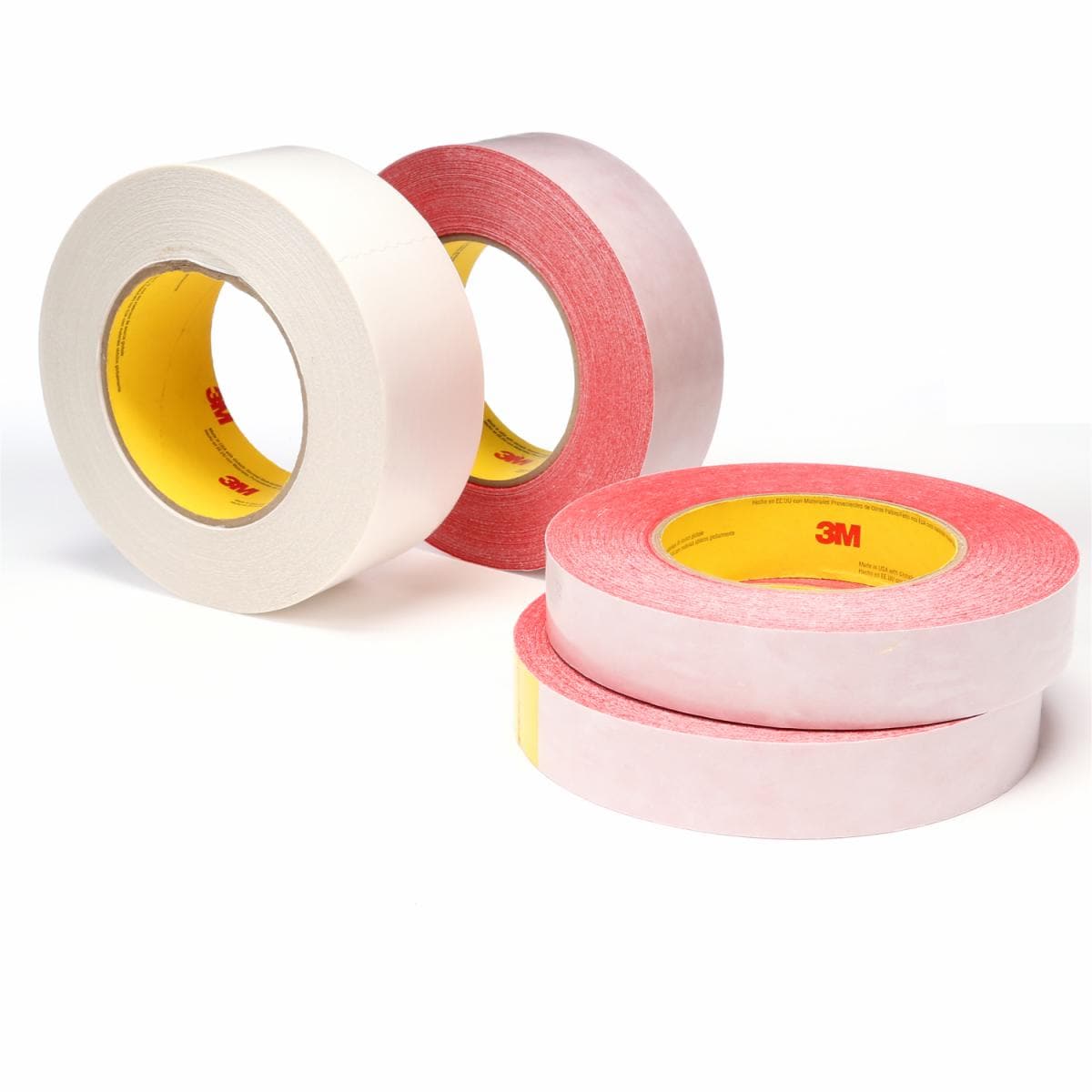

3M™ Double Coated Tape 9737

3M Product Number 9737R
16  Products
  • Ideal performance in high speed splicing applications
  • High tack acrylic adhesive performs well across broad temperature range
  • Excellent peel, tack and shear strength to withstand rigorous splicing applications
  • Versatile adhesion bonds well to kraft and coated papers, as well plastic
 More...
View all details
For industrial/occupational use only. Not for consumer sale or use.
Overall Length (Imperial)
Overall_Length_Imperial
Overall Length (Metric)
Overall_Length_Metric
Overall Width (Imperial)
Overall_Width_Imperial
Overall Width (Metric)
Overall_Width_Metric
Product Color
Product_Color
16 Products Available
Available options:
 Overall Length (Imperial), Overall Length (Metric), Overall Width (Imperial), Overall Width (Metric) and Product Color
All Options
  • Product Form
    Overall Length (Imperial)
    Overall Length (Metric)
    Overall Width (Imperial)
    Overall Width (Metric)
    Product Color
  • 3M™ Double Coated Tape 9737R, Red, 19 mm x 55 m, 3.5 mil, 64 rolls per case
    Product Form
    Roll
    Overall Length (Imperial)
    60.15 yd
    Overall Length (Metric)
    55 m
    Overall Width (Imperial)
    0.74 in
    Overall Width (Metric)
    19 mm
    Product Color
    Red
  • 3M™ Double Coated Tape 9737, Clear, 54 in x 250 yd, 3.5 mil, 9 rolls per pallet
    Product Form
    Roll
    Overall Length (Imperial)
    250 yd
    Overall Length (Metric)
    228.6 m
    Overall Width (Imperial)
    54 in
    Overall Width (Metric)
    137 cm
    Product Color
    Transparent
  • 3M™ Double Coated Tape 9737, Clear, 60 mm x 55 m, 3.5 mil, 20 rolls per case
    Product Form
    Roll
    Overall Length (Imperial)
    60.15 yd
    Overall Length (Metric)
    55 m
    Overall Width (Imperial)
    2.36 in
    Overall Width (Metric)
    60 mm
    Product Color
    Transparent
  • 3M™ Double Coated Tape 9737, Clear, 54 in x 60 yd, 3.5 mil, 1 roll per case
    Product Form
    Roll
    Overall Length (Imperial)
    60 yd
    Overall Length (Metric)
    54.86 m
    Overall Width (Imperial)
    54 in
    Overall Width (Metric)
    137 cm
    Product Color
    Transparent
  • 3M™ Double Coated Tape 9737R, Red, 36 mm x 55 m, 3.5 mil, 32 rolls per case
    Product Form
    Roll
    Overall Length (Imperial)
    60.15 yd
    Overall Length (Metric)
    55 m
    Overall Width (Imperial)
    1.42 in
    Overall Width (Metric)
    36 mm
    Product Color
    Red
  • 3M™ Double Coated Tape 9737R, Red, 24 mm x 55 m, 3.5 mil, 48 rolls per case
    Product Form
    Roll
    Overall Length (Imperial)
    60.15 yd
    Overall Length (Metric)
    55 m
    Overall Width (Imperial)
    0.95 in
    Overall Width (Metric)
    24 mm
    Product Color
    Red
  • 3M™ Double Coated Tape 9737, Clear, 12 mm x 55 m, 3.5 mil, 96 rolls per case
    Product Form
    Roll
    Overall Length (Imperial)
    60.15 yd
    Overall Length (Metric)
    55 m
    Overall Width (Imperial)
    0.47 in
    Overall Width (Metric)
    12 mm
    Product Color
    Transparent
  • 3M™ Double Coated Tape 9737, Clear, 36 mm x 55 m, 3.5 mil, 32 rolls per case
    Product Form
    Roll
    Overall Length (Imperial)
    60.15 yd
    Overall Length (Metric)
    55 m
    Overall Width (Imperial)
    1.42 in
    Overall Width (Metric)
    36 mm
    Product Color
    Transparent
  • 3M™ Double Coated Tape 9737, Clear, 72 mm x 55 m, 3.5 mil, 16 rolls per case
    Product Form
    Roll
    Overall Length (Imperial)
    60.15 yd
    Overall Length (Metric)
    55 m
    Overall Width (Imperial)
    2.83 in
    Overall Width (Metric)
    72 mm
    Product Color
    Transparent
  • 3M™ Double Coated Tape 9737R, Red, 48 mm x 55 m, 3.5 mil, 24 rolls per case
    Product Form
    Roll
    Overall Length (Imperial)
    60.15 yd
    Overall Length (Metric)
    55 m
    Overall Width (Imperial)
    1.9 in
    Overall Width (Metric)
    48 mm
    Product Color
    Red
  • 3M™ Double Coated Tape 9737, Clear, 24 mm x 55 m, 3.5 mil, 48 rolls per case
    Product Form
    Roll
    Overall Length (Imperial)
    60.15 yd
    Overall Length (Metric)
    55 m
    Overall Width (Imperial)
    0.95 in
    Overall Width (Metric)
    24 mm
    Product Color
    Transparent
  • 3M™ Double Coated Tape 9737R, Red, 60 in x 250 yd, 3.5 mil, 9 rolls per pallet (1 roll per case)
    Product Form
    Roll
    Overall Length (Imperial)
    250 yd
    Overall Length (Metric)
    228.6 m
    Overall Width (Imperial)
    60 in
    Overall Width (Metric)
    1524 mm
    Product Color
    Red
  • 3M™ Double Coated Tape 9737, Clear, 48 mm x 55 m, 3.5 mil, 24 rolls per case
    Product Form
    Roll
    Overall Length (Imperial)
    60.15 yd
    Overall Length (Metric)
    55 m
    Overall Width (Imperial)
    1.9 in
    Overall Width (Metric)
    48 mm
    Product Color
    Transparent
  • 3M™ Double Coated Tape 9737, Clear, 60 in x 250 yd, 3.5 mil, 1 roll per case
    Product Form
    Roll
    Overall Length (Imperial)
    250 yd
    Overall Length (Metric)
    228.6 m
    Overall Width (Imperial)
    60 in
    Overall Width (Metric)
    1524 mm
    Product Color
    Transparent
  • 3M™ Double Coated Tape 9737, Clear, 19 mm x 55 m, 3.5 mil, 64 rolls per case
    Product Form
    Roll
    Overall Length (Imperial)
    60.15 yd
    Overall Length (Metric)
    55 m
    Overall Width (Imperial)
    0.74 in
    Overall Width (Metric)
    19 mm
    Product Color
    Transparent
  • 3M™ Double Coated Tape 9737, Clear, 60 in x 60 yd, 3.5 mil, 1 roll per case, Plastic Core
    Product Form
    Roll
    Overall Length (Imperial)
    60 yd
    Overall Length (Metric)
    54.86 m
    Overall Width (Imperial)
    60 in
    Overall Width (Metric)
    1524 mm
    Product Color
    Transparent
Close
Details
  • Ideal performance in high speed splicing applications
  • High tack acrylic adhesive performs well across broad temperature range
  • Excellent peel, tack and shear strength to withstand rigorous splicing applications
  • Versatile adhesion bonds well to kraft and coated papers, as well plastic
  • Good moisture resistance to ensure performance in a variety of situations
  • Red options available for visible splicing applications

3M™ Double Coated Tape 9737 is a double-sided tape mounted on a thin polyester carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It is mounted on 55 lb. densified kraft paper liner for easy release and manipulation during application.

Red Double Coated Tape 9737
Red option allows for easier visibility in splicing
High Performance Adhesion
Our 3M™ Double Coated Tape 9737 is a 3.5 mil double-sided tape mounted on a 55 lb. densified kraft paper liner. In addition, it has a thin polyester carrier with a pressure sensitive acrylic adhesive that offers a balance of high initial adhesion and good holding power. It offers excellent temperature performance in various applications. When it comes to longevity, this tape will perform well up to 300°F/149°C in the short term, and up to 260°F/127°C for days or weeks. Results may vary depending on machine and web tensions, line speeds, nature of paper surface and application pressure. It adheres well to kraft and coated papers, and is commonly used for high performance splicing on paper, films and other continuous web processes. Notably, this product is offered in two colors — clear and red. The red version can be used for visible splicing applications.

Recommended Applications
  • High-speed flying splices
  • Zero speed splices
  • Core starting
  • Splicing films, foils and corrugated paper

Clear Double Coated Tape 9737
Easy to release and manipulate during application
What is Double Coated Tape?
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in web processing, construction, fabrication, arts and hobby.
