3M™ Dual Lock™ Reclosable Fastener SJ3268, Pop-In Piece Part, Stem Density 400, Black, 26 mm x 26 mm

  • 3M Product Number SJ3268
  • 3M ID B40068984

Interlocking, mushroom-shaped stems snap together for strong, fast and easy attachment

Can be opened and re-closed in high cycle applications

Provides hidden component attachment, preventing disruption on the show surface

View more details

Details

Highlights
  • Interlocking, mushroom-shaped stems snap together for strong, fast and easy attachment
  • Can be opened and re-closed in high cycle applications
  • Provides hidden component attachment, preventing disruption on the show surface
  • Strong holding power reduces the rattling and vibration of components
  • Resistant to high temperatures and solvents
  • Does not require special tools or processing equipment for installation
  • Can be used to attach components before they enter the final assembly plant, helping to reduce the number of parts and assembly time
  • Audibly snaps together to form a secure, dependable and repeatable attachment
  • Mates with other stem densities to achieve a variety of engagement and disengagement forces

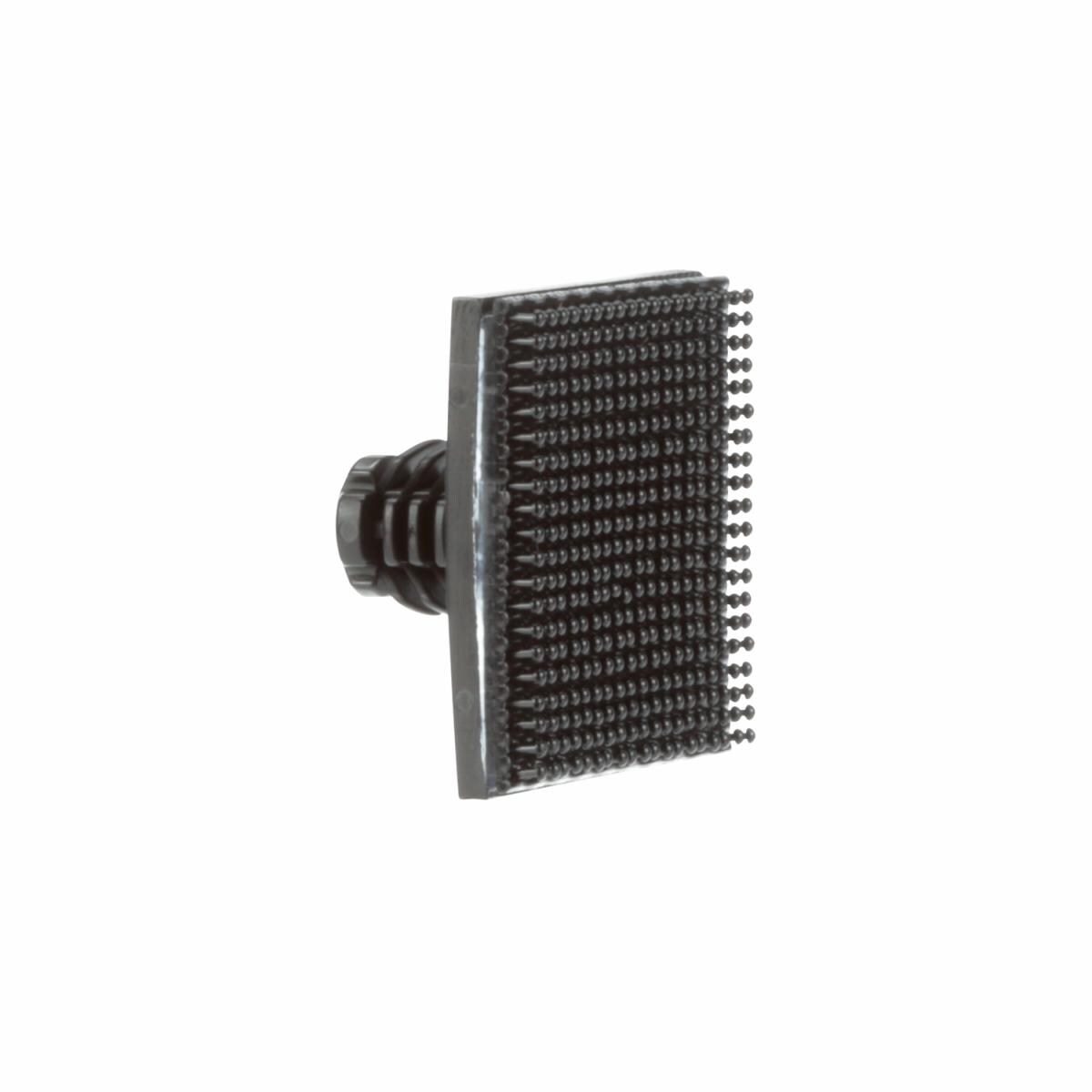

3M™ Dual Lock™ Reclosable Fastener SJ3268 is a black, polypropylene reclosable fastener with a pop-in pine tree base, and a square top with a stem density of 400 stems per square inch.

Illustration of Polypropylene fastener
Interlocking mushroom-shaped polyolefin stems
3M™ Dual Lock™ Reclosable Fastener SJ3268 is a black, polypropylene reclosable fastener with a pop-in pine tree base, and a square top with a stem density of 400 stems per square inch. Pop-in parts attach without the use of pressure sensitive adhesive, and come with a variety of bases that can be inserted into holes of precise dimension. They are easy to install and require no special equipment or skills.

This fastener overcomes the often difficult alignment and installation problems of screws and hidden fasteners, offering simple installation with no special tools required. 3M™ Dual Lock™ Reclosable Fasteners are positive-locking, blind fasteners designed for attaching automotive trim components. The products feature mushroom-shaped polyolefin stems that snap together, forming a high tensile closure. Dual Lock fasteners are used primarily to secure rigid and semi-rigid surfaces such as trim or door panels, instrument panel bezels, headliners and other automotive interior and exterior trim.

How It Works
This pop-in fastener is designed to be popped into a slot of a specific dimension where attachment is desired. Its polypropylene pine tree base grips the inside of the hole and holds tight. The fastener can then be mated and engaged to a second Dual Lock fastener attached to a piece of trim or other part to firmly secure the parts together.

When two pieces of 3M™ Dual Lock™ Reclosable Fasteners are pressed together, the stems flex and the mushroom heads slide past each other. After passing the opposing mating piece, the stems snap back into their original position and the opposing mushroom heads interlock. These fasteners can provide high tensile strength but can be opened by simply cleaving or peeling open the closure.

Combinations of stem densities and the engaged area provide adjustable and proportional engagement and disengagement force to meet application requirements.
400 stems/inch2 (62 stems/cm2)
Alignment and re-alignment are easy and no special tools are required. This means that they can be used to attach components before they enter the final assembly plant, helping to reduce the number of parts and assembly time.

Stem Densities
Combinations of stem densities and the engaged area provide adjustable and proportional engagement and disengagement force to meet application needs. Dual Lock fasteners are offered in three different densities (stems per square inch): 170, 250 and 400. Our Dual Lock fastener SJ3268 has 400 stems per square inch, offering the tightest hold, and can be mated to Type 170 or 250. It should not be mated with another Type 400 fastener because the hold would be so tight that detachment would likely result in damage to the parts.

Recommended Applications
3M™ Dual Lock™ Reclosable Fasteners can replace conventional mechanical fasteners in a wide range of assembly and attachment applications where reclosability or serviceability is desired. Dual Lock™ fasteners are used primarily to secure rigid and semi-rigid surfaces such as trim or door panels, instrument panel bezels, headliners and other automotive interior and exterior trim. Some examples of applications include:
  • Vehicle headliners
  • Attaching accessories and equipment
  • Attaching window and door trim panels
  • Vibration and sound damping control
  • CHMSL cover plates
  • Center console flanges
  • Interior trim
  • Sunroof rings

3M Science Delivers Closures You Can Count On
3M™ Dual Lock™ Reclosable Fasteners are ideal for many applications where a high strength, reclosable fastening system is required. 3M engineers have uniquely combined physics and materials science to bring the automotive industry reliable fasteners that supply high performance even after exposure to high moisture levels and wide temperature ranges. For applications that require a pop-in piece and multiple closures, look no further than the long-lasting durability of our 3M™ Dual Lock™ Reclosable Fastener SJ3268. It is yet another outstanding example of how 3M technologies advance operations in the automotive industry, providing both ease of use and superior results.

Learn more about 3M™ Dual Lock™ Reclosable Fasteners (PDF, 2.95 Mb)
