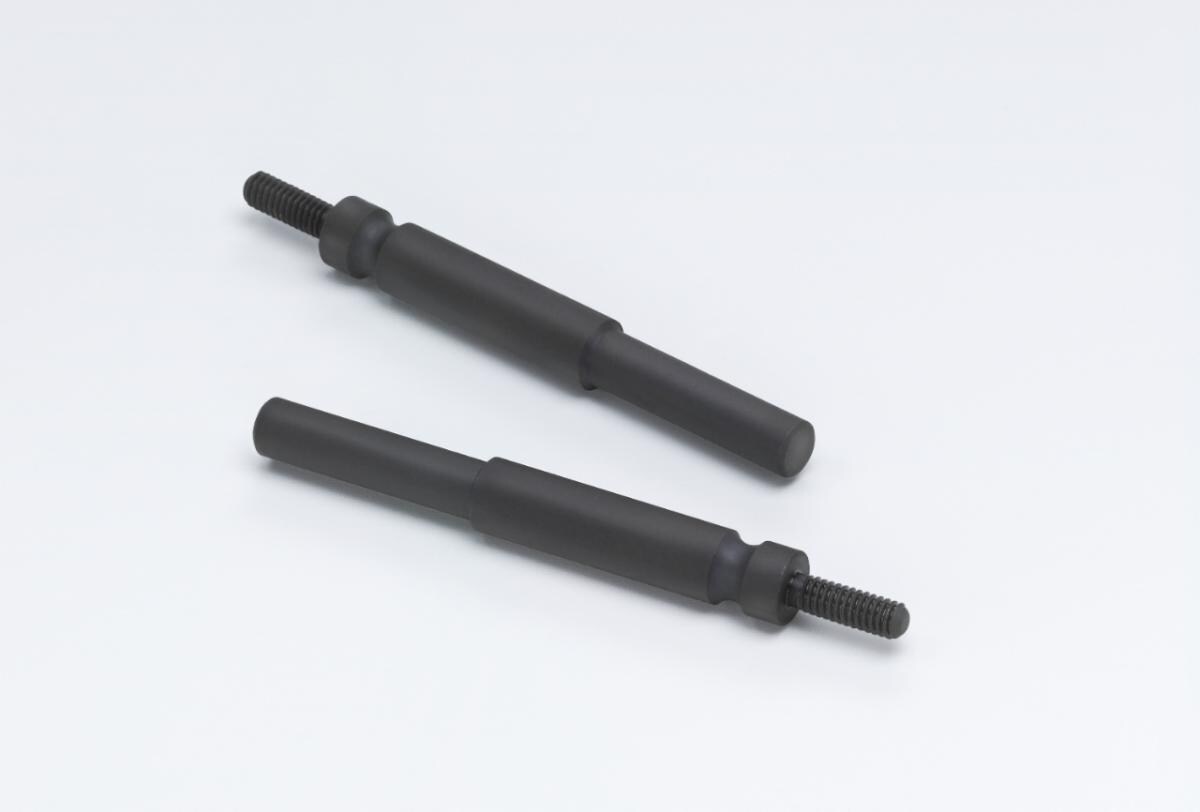

3M™ Square/Cross Pad Mandrel

3M(TM) Square Cross Pad Mandrel 14307, 1/4 in x 8-32 External

1 of 2

Hover to zoom

Mandrel secures a square pad, cross pad, or cross buff to a rotary tool
1/4-inch shank fits rotary power tool with a 1/4-inch collet assembly
External threaded shank must match the internal threaded inserts of the square or cross pad
Models in 3 external thread sizes

View all details

For industrial/occupational use only. Not for consumer sale or use.

Overall Width (Imperial)

Overall_Width_Imperial

Overall Length (Imperial)

Overall_Length_Imperial

Thread Size

Thread_Size

3 Products Available

Available options:

Overall Width (Imperial), Overall Length (Imperial) and Thread Size

Specifications

Attribute Name	Value
Alternative Sale Availability	6. This item is for industrial use only and there are no VOC restrictions.
Attachment Type	Threaded
Brand	3M™
CA Metalworking Solutions Level 2	Abrasive Tools and Accessories
Equipment - Machines	Die Grinders
Form Type	Square/Cross Pad
Function/Attachment Style	Mechanical Attachment
Industries	Metalworking
Market	Facilities Management
Max RPM	24100
Net Weight (Imperial)	0.05 lb, 0.06 lb
Net Weight (Metric)	22.68 g, 27.22 g
Overall Height (Imperial)	0.2 in, 0.3 in
Overall Height (Metric)	0.51 cm, 0.76 cm
Overall Length (Imperial)	0.2 in, 0.3 in, 3 in
Overall Length (Metric)	0.51 cm, 0.76 cm, 76.2 mm
Overall Width (Imperial)	4 in, 4.02 in
Overall Width (Metric)	10.16 cm, 10.21 cm
Product Type	Mandrel
Segment	Maintenance
Shank Size	0.25 in
Shank Size (metric)	6.35 mm
Thread Size	1/4-20 EXT, 3-48 EXT, 8-32 EXT
Type	Regular

Product Details

Mandrel secures a square pad, cross pad, or cross buff to a rotary tool
1/4-inch shank fits rotary power tool with a 1/4-inch collet assembly
External threaded shank must match the internal threaded inserts of the square or cross pad
Models in 3 external thread sizes
Length is 3 inches
Max rpm is 24,100

The 3M™ Square/Cross Pad Mandrel secures a square pad, a cross pad, or a cross buff to a rotary tool with a 1/4-inch collet assembly. The external threaded shank must match the internal threaded inserts of the pad or buff to be used. This useful accessory is available in three external thread sizes – 3-48, 8-32 and 1/4-20 external.

Assembles Securely, Reliably, Quickly
Used for securing a square pad, a cross pad or cross buff to your 3M™ Die Grinder, the 3M™ Square/Cross Pad Mandrel allows you to make optimum use of your power tool by enabling it to accomplish more of the tasks you need to address.

This mandrel has a 1/4-inch shank that is engineered to fit your rotary power tool securely and allow for quick assembly. We make it available in 3 external thread sizes for running at a maximum rpm of 24,100.

Designed to handle all your cylindrical polishing, buffing, shaping and deburring needs.

Do More with One Tool
Our 3M™ Square/Cross Pad Mandrel allows you to use multiple type of abrasive products with one tool.

Square pads are ideal for fast grinding and blending of channels, fillets, corners and spotting on flat surfaces. As they rotate, the corners exert a fast biting action and gradually wear down to expose fresh abrasive material.

Cross pads are used for close tolerance polishing of small radii and channels, deburring the ends and insides of tubing and other special applications.

Cross buffs polish, clean, satin finish, denib and defuzz interior diameters of metal components.

Maximize the Value of Your 3M Power Tools
Engineered to work effectively with your 3M rotary tools, we design our accessories to perform to the highest standards, to allow you to do more, more cost-efficiently.
