3M™ Tabbing and Splicing Tape 5699, Clear, 0.10 mm is designed for use with 3M™ Acrylic Plus Tapes. It consists of a silicone adhesive on a polyester backing.
Recommended for Liner Removal
3M™ Tabbing and Splicing Tape 5699, Clear, 0.10 mm is a pressure sensitive adhesive backed film that provides a strong bond to 3M™ Acrylic Plus Tapes. Our tape provides a reliable means of liner removal in a production environment. This tape provides high tack and good strength to liners and can be used for manual applications without special equipment.
3M™ Tabbing Tapes are available in standard widths up to a maximum of 1200 mm (48 inches) in increments of 3.2 mm (1/8 inches). Length tolerance on all widths is ± 0.8 mm (1/32 inches).
Recommendations for Use
See more about 3M™ Tabbing and Splicing Tape 5699
- Before tabbing the tape, make sure the tape liner edge is cut square so the tab makes contact with the leading edge of the liner. Also, tabs perform better if they are positioned at an angle over the corner.
- Tabs made with 3M™ Tabbing and Splicing Tape 5699 function best after at least a 24-hour room temperature dwell after lamination.
- 3M™ Tabbing and Splicing Tape 5699 can be used to produce undertabs (by placing the tab between the liner and tape), resulting in a more robust tabbing solution.

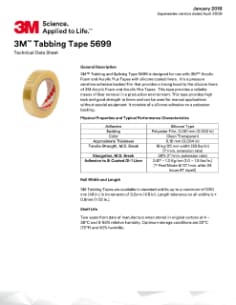

(PDF, 34.6 Kb)
