3M™ Stikit™ Disc Pad

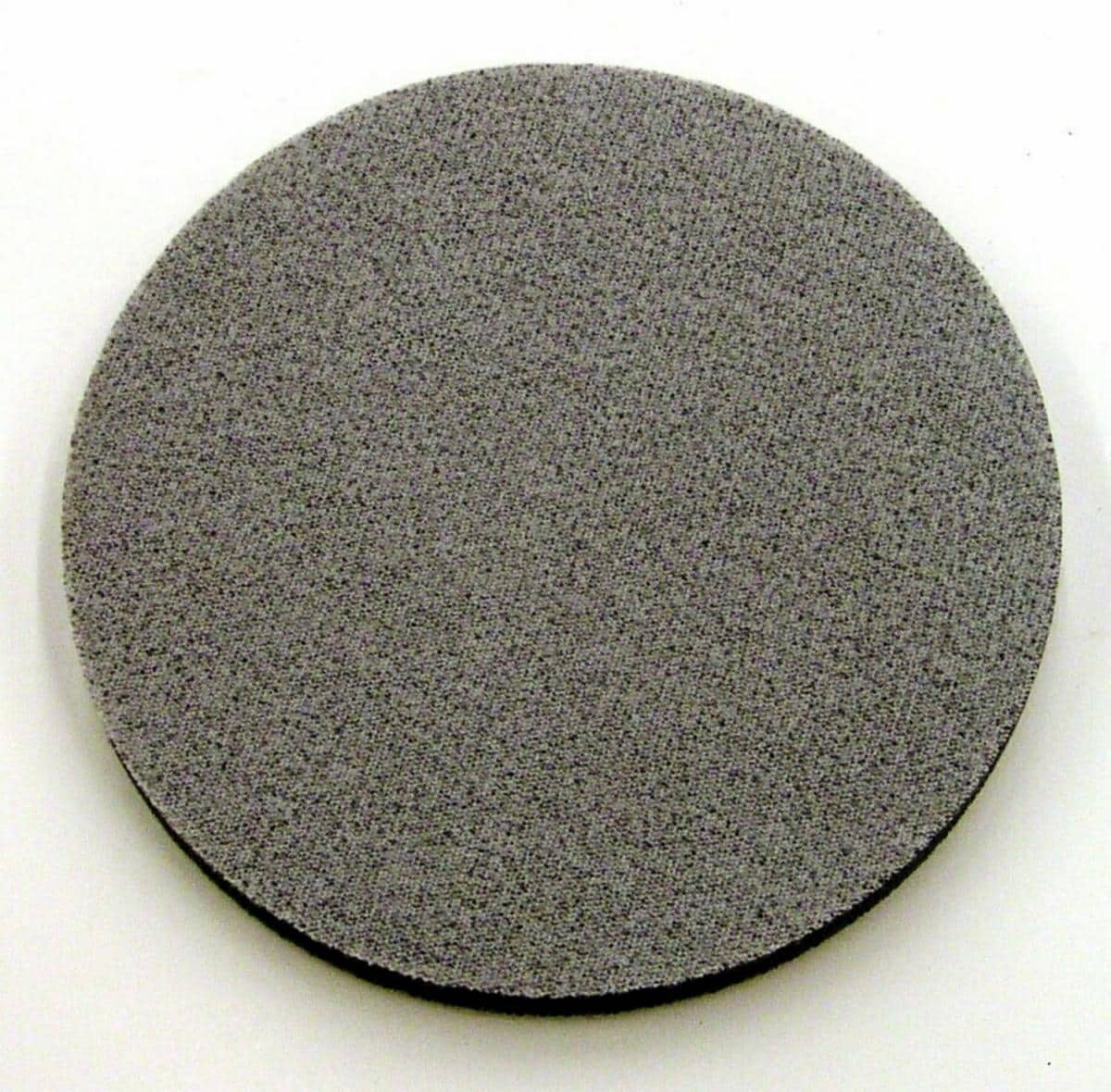

3M(TM) Stikit(TM) Soft Interface Disc Pad 02795, 5 in. x 1/2 in

1 of 2

Hover to zoom

Provides excellent disc attachment yet allows quick, easy disc removal
Back up pads enable use of 3M™ Stikit™ discs (sold separately) on a disc, random orbital, or rotary sander
Variety of densities provides flexibility for varied finishes
Dust Free (D/F) disc pads allow dust extraction capability

View all details

For industrial/occupational use only. Not for consumer sale or use.

Overall Width (Imperial)

Overall_Width_Imperial

Overall Length (Imperial)

Overall_Length_Imperial

Overall Diameter (Imperial)

Overall_Diameter_Imperial

Max RPM

Max_RPM

Thread Size

Thread_Size

10 Products Available

Available options:

Overall Width (Imperial), Overall Length (Imperial), Overall Diameter (Imperial), Max RPM, Thread Size, Density Rating, Equipment - Machines and Overall Thickness (Imperial)

Specifications

Attribute Name	Value
Abrasive Attachment Type	PSA
Alternative Sale Availability	6. This item is for industrial use only and there are no VOC restrictions.
Application	Finishing, Polishing, Surface Preparation
Brand	Stikit™
Color Family	Black, Red, Yellow
Density Rating	Medium, Soft
Equipment - Machines	Disc Sanders, Random Orbital Sanders
Form Type	Fabricated, Molded, Molded - Vacuum
Front Color	Black, Blue, Red, Silver
Function/Attachment Style	Adhesive Back
Hook Type	2
Industries	Aerospace, AOEM, Composite, Cutting Tool Manufacturing, General Industrial, Marine, Metalworking, MRO, Paint Preparation, Primary Metal, Transportation & Heavy Equipment, Woodworking
Market	Aerospace
Maximum Speed	10000 mps, 12000 mps, 7500 mps
Max OPM	10000, 12000
Max RPM	10000, 12000, 7500
Net Weight (Imperial)	0.22 lb, 0.28 lb, 0.31 lb, 0.34 lb, 3.5 lb
Net Weight (Metric)	127.01 g, 140.61 g, 154.22 g, 1587.57 g, 99.79 g
Number of Holes	4, 5, 6
Overall Diameter (Imperial)	5 in, 6 in
Overall Diameter (Metric)	127 mm, 152.4 mm, 76.2 mm
Overall Length (Imperial)	0.56 in, 14.2 in
Overall Length (Metric)	1.43 cm, 36.07 cm
Overall Thickness (Imperial)	0.5 in, 0.75 in, 1.25 in
Overall Thickness (Metric)	12.7 mm, 19.05 mm, 31.75 mm
Overall Width (Imperial)	10.7 in, 6 in
Overall Width (Metric)	15.24 cm, 27.18 cm
Product Color	Black, Red, Yellow
Product Type	Back-up Pad
Shape	15 Degree, 30 Degree, 45 Degree
Thread Size	5/16-24 EXT, 5/8-11 INT
Type	Dust Control, Regular

Product Details

Provides excellent disc attachment yet allows quick, easy disc removal
Back up pads enable use of 3M™ Stikit™ discs (sold separately) on a disc, random orbital, or rotary sander
Variety of densities provides flexibility for varied finishes
Dust Free (D/F) disc pads allow dust extraction capability
Variety of attachment interfaces allow use with common power tools

3M™ Stikit™ Disc Pads hold 3M Stikit discs for use with disc, random orbital, and rotary sanders. They have a tough vinyl face that provides excellent disc adhesion yet allows quick, easy disc removal. A variety of lightweight, shock-resistant pads are available in 3-, 5- and 6-inch diameters.

Disc pads have a vinyl face material which drives 3M™ Stikit™ Discs with Pressure Sensitive Adhesive backings

Disc Pads Drive the Action
In low profile, standard profile and low profile finishing models, the 3M™ Stikit™ Disc Pads provide well-balanced backup to drive the disc and transfer the power of the sanding device to the work surface. The Low Profile is most aggressive and recommended for flat sanding operation and coarse grade abrasive products. The Standard Profile disc pad has a 45 degree tapered edge for flexibility. It allows the sanded area to be feather edged or more easily blended and is recommended for use with medium grade abrasive products. The Low Profile Finishing provides the best finish. It is the least aggressive disc pad. Use on flat surfaces or contoured surfaces with finer grade abrasive products.

Stikit™ Disc Pads are available in dust-free versions as well for cleaner air and finer finishing results. Abrasive discs cut better and last longer when dust isn't loading the cutting surface of the abrasive. These are part of the dust-management system which feature the same multi-hole pattern in the abrasive disc and the disc pad, enabling dust extraction when used with self-generated vacuum or central vacuum tools.

Stikit™ Attachment
The 3M Stikit™ system was designed for convenient changes between abrasive grades or applications. Stikit™ abrasives come ready to use with a pressure sensitive adhesive coating on the backside so that attaching them to the hand pad is as simple as pressing on a sticker. Yet they remove cleanly without adhesive residue left on the back up pad surface. This makes for fast change-outs, saving time, and prolongs the life of abrasives.

Learn more about Stikit Line of Coated Abrasive Products (PDF, 20.55 Mb)
