3M™ Adhesive Transfer Tape 9675

  • Options available
  • | Select product options for IDs.

5.0 mils (.127 mm) thick tape provides high bond to low surface energy substrates and powder coated paints

83 lb. polycoated kraft lay flay liner ideal for flatbed die-cutting applications

Excellent chemical resistance and shear and peel strength even at elevated temperatures

View more details
Frequently viewed resources

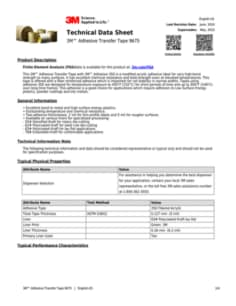

Tech Data Sheet (PDF, 99KB)

Details

Highlights
  • 5.0 mils (.127 mm) thick tape provides high bond to low surface energy substrates and powder coated paints
  • 83 lb. polycoated kraft lay flay liner ideal for flatbed die-cutting applications
  • Excellent chemical resistance and shear and peel strength even at elevated temperatures
  • Designed for short term temperature exposure up to 450°F (232°C) and long term 300°F (149°C)
  • Adhesive is fiber reinforced for roll stability in narrow widths and to resist oozing
  • Low odor for improved working environment

3M™ Adhesive Transfer Tape 9675 leverages the power of 3M™ High Performance Acrylic Adhesive 350 and is mounted on a tan, 83 lb. polycoated kraft paper liner for moisture resistance. This transfer tape is an excellent solution bonding high and low surface energy materials. It can also be used for joining materials that have rougher surfaces.

Join High and Low Surface Energy Materials
3M™ Adhesive Transfer Tape 9675 is a 5.0 mils (.127 mm) thick transfer tape consisting of our 3M™ Adhesive 350, a modified high performance acrylic adhesive designed for applications requiring high shear strength. The adhesive is a mounted on a tan colored, 83 lb. polycoated kraft liner with a green 3M logo. This liner is moisture resistance and ideal for flatbed die-cutting when a heavy duty liner is needed. This tape is a high performance, high temperature, solvent-free industry standard tape with excellent chemical (such as gasoline, oil, sodium chloride, mild acids, alkaloids and more) and moisture resistance. It is a fiber reinforced adhesive, a feature that is important for roll stability in narrow widths. This tape is ideal for joining materials that have rougher surfaces.


3M™ Adhesive Transfer Tape 9675
3M™ Adhesive Transfer Tape 9675 is an excellent solution bonding high and low surface energy materials

Recommended Applications

  • Bonding high and low surface energy materials and powder coated paints
  • Narrow width automated dispensing
  • Flatbed die-cutting where heavy duty liner is needed
  • Bonding foams to low surface energy materials (LSE) while offering elevated temperature performance
  • Gasketing
  • Labeling

High Temperature Adhesion
3M™Adhesive 350 is a high-tack, high performance acrylic adhesive system featuring high initial adhesion to metals and high surface energy plastics. It offers excellent humidity, water, solvent, chemical and short term heat resistance. The adhesive is designed to provide exceptional shear strength, even at elevated temperatures. Shear strength is a measure of resistance to a sliding force along a plane that is parallel to the direction of the force. Adhesive 350 is formulated for temperate exposure up to 450°F/232°C for short periods of time and up to 300°F/149°C for extended time frames.

What are Adhesive Transfer Tapes?
In general, 3M adhesive transfer tapes are rolls of pressure sensitive adhesive pre-applied to a special release liner. The tape consists of adhesive only, and does not have any type of backing material. For application the tape is positioned adhesive side down to a surface and the liner is removed, exposing the backside of the adhesive to receive the secondary substrate.












Image of finite element modeling showing stress points on interacting gearwheels
Get Data for Finite Element Analysis

Pressure Sensitive Adhesive properties are frequency and temperature sensitive. 3M has developed Material Data Cards (MDCs) for common 3M PSAs for use with many commercially available FEA software applications. Learn more.

REQUEST A 3M MATERIAL DATA CARD

Typical properties
