3M™ Flap Wheel 244D

3M Product Number 244D
24  Products
  • General-purpose wheel for grinding, polishing, sanding and finishing
  • Aluminum oxide mineral cuts sharp, lasts long and finishes fine
  • X-weight cotton cloth backing is both durable and malleable to minimize gouging and marring
  • Offered in Type 83 (T83) or Type 84 (T84) mounting systems
 More...
View all details
For industrial/occupational use only. Not for consumer sale or use.
Overall Width (Imperial)
Overall_Width_Imperial
Overall Diameter (Imperial)
Overall_Diameter_Imperial
24 Products Available
Available options:
 Overall Width (Imperial) and Overall Diameter (Imperial)
All Options
Close
Specifications
Attribute Name
Value
Abrasive Material
Aluminum Oxide
Alternative Sale Availability
6. This item is for industrial use only and there are no VOC restrictions.
Application
Finishing, Grinding
Attachment Type
Shaft, Threaded
Backing Material
Rayon Cloth
Backing Weight
X Weight
Brand
3M™
CA Metalworking Solutions Level 2
Castings and Forging, Deburring & Surface Conditioning
Center Hole Diameter (Imperial)
0.25 in
Center Hole Diameter (Metric)
6.35 mm
Center Hole Thread Size
1/4"-20
Equipment - Machines
Die Grinders, Inline Sanders, Manual Backstand
Face Width (Imperial)
0.5 in, 1 in
Face Width (Metric)
12.7 mm, 25.4 mm
Form Type
Flap, Flap Wheel
For Use On
Carbon Steel
Grit
120, 60, 80
Industries
Marine, Metalworking
Market
Maritime, Facilities Management
Max RPM
20000, 25000, 30000
Net Weight (Imperial)
0.21 lb, 0.53 lb, 0.71 lb, 0.8 lb, 0.88 lb, 1.12 lb, 1.25 lb, 1.56 lb, 1.98 lb
Net Weight (Metric)
0.1 kg, 0.24 kg, 0.32 kg, 0.36 kg, 0.4 kg, 0.51 kg, 0.57 kg, 0.71 kg, 0.9 kg
Overall Diameter (Imperial)
1 in, 1.5 in, 2 in, 2.5 in, 3 in
Overall Diameter (Metric)
25.4 mm, 38.1 mm, 50.8 mm, 63.5 mm, 76.2 mm
Overall Width (Imperial)
0.25 in, 0.5 in, 1 in
Overall Width (Metric)
12.7 mm, 25.4 mm
Position
Better, Good
Product Form
Wheel
Segment
Maintenance
Shank Diameter (Imperial)
0.25 in
Shank Size
0.25 in
Shank Size (metric)
6.35 mm
Substrate
Carbon Steel
Substrate Category
Metal
Wheel Type
Type 83, T84
Details
  • General-purpose wheel for grinding, polishing, sanding and finishing
  • Aluminum oxide mineral cuts sharp, lasts long and finishes fine
  • X-weight cotton cloth backing is both durable and malleable to minimize gouging and marring
  • Offered in Type 83 (T83) or Type 84 (T84) mounting systems
  • Cloth-backed abrasive resists tearing and stands up to edges

3M™ Flap Wheel 244D is a general-purpose flap wheel designed for grinding, polishing, sanding and finishing. Versatile aluminum oxide mineral cuts sharp, while the flap construction helps deliver fine finishes with individually-mounted abrasive flaps that continually lap the surface.



3M™ Flap Wheel 244D is offered in type 83 (T83) or type 84 (T84). The flap wheel is offered in both attachment styles, so operators can select the right wheel that aligns with their power tools

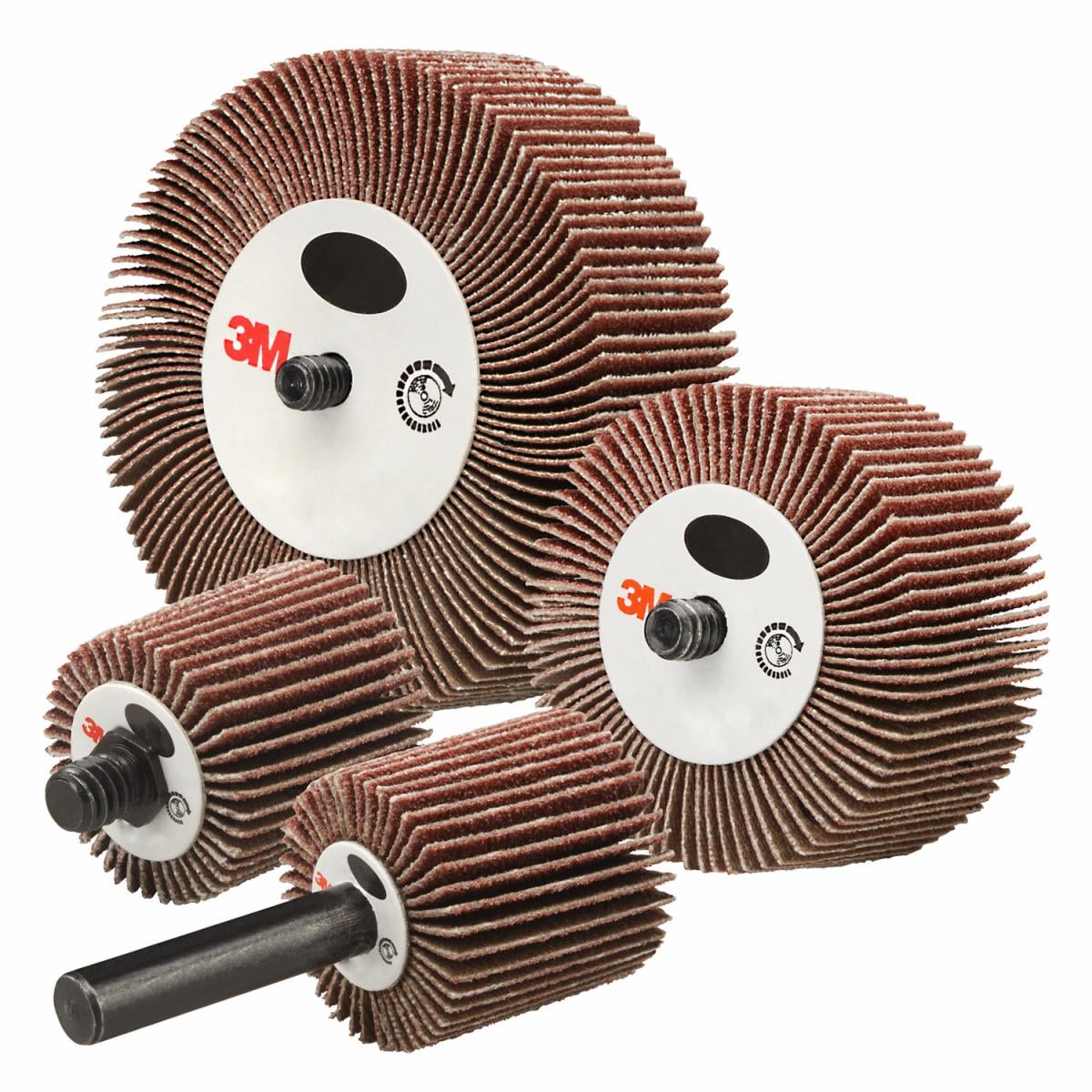

T83: 1/4" Straight (left) and T84: 1/4— 20 Threaded (right)

Type 83 vs. Type 84 Attachments
3M™ Flap Wheel 244D is offered in type 83 (T83) or type 84 (T84). The flap wheel is offered in both attachment styles, so operators can select the right wheel that aligns with their power tools. T83 has a 1/4" straight shaft that connects to a tool, such as a die grinder, and is locked in place with a collet. The longer shaft length of T83 may be desirable when operators need a bit of an extended reach between abrasive and workpiece. Conversely, T84 is a 1/4 - 20 threaded spindle mount, so it threads directly onto the tool. Its reach is shorter, which may be desirable when operators desire closer contact with the workpiece. Overall, this wheel may be attached to bench motors, die grinders and inline sanders.





Each flap on the 3M™ Flap Wheel 244D contains aluminum oxide mineral, which is resin bonded to an X-weight cotton cloth backing
Abrasive flaps offer a long lasting supply of fresh abrasives and load resistant design

Under the Microscope: Flaps with Aluminum Oxide and Rayon Cloth
Each flap on the 3M™ Flap Wheel 244D contains aluminum oxide mineral, which is resin bonded to an X-weight cotton cloth backing. The rayon cloth backing is flexible, firm and resistant to edge wear. Overall, cloth-backed abrasives are a good match for metalworking applications. Still, the cloth is malleable, so it can gently lap the workpiece without gouging the part. Additionally, among cloth backing weights, X weight tends to be heavy and stiff. This durable backing is what helps 3M™ Flap Wheel 244D effectively grind and polish. Aluminum oxide mineral is adhered to the flaps using a resin bond, which helps with heat resistance. As noted above, the mineral itself is a popular choice among industrial professionals, due to its fast cut rate, hardness and strength.

Altogether, coated abrasive flap wheels are the ideal choice for light grinding, blending, graining and scale removal on a variety of metals. The abrasive flaps offer a long-lasting supply of fresh mineral and a load-resistant design to help prolong abrasive service life and keep the wheel cutting sharp.
