- Adhesive backing allows for quick application and easy removal
- Convenient disc rolls eliminate the need to remove disc liners from individual discs
- Strong, C-weight paper backing provides extra durability when compared to lighter weight paper backings
- Aluminum oxide mineral is durable, cuts fast, and performs well on many surfaces
For industrial/occupational use only. Not for consumer sale or use.
Overall Diameter (Imperial)
Overall_Diameter_Imperial
Max RPM
Max_RPM
Grit
Grit
39 Products Available
Available options:
Overall Diameter (Imperial), Max RPM and Grit
Specifications
|
Attribute Name
|
Value
|
|---|---|
|
Abrasive Material
|
Aluminum Oxide
|
|
Alternative Sale Availability
|
6. This item is for industrial use only and there are no VOC restrictions.
|
|
Application
|
Finishing, Grinding, Sanding, Surface Preparation, Surface Preparation for Painting
|
|
Attachment Type
|
PSA
|
|
Backing Material
|
Paper
|
|
Backing Weight
|
C Weight
|
|
Brand
|
Stikit™
|
|
Coat Type
|
Open Coat
|
|
Color Family
|
Yellow
|
|
Equipment - Machines
|
Random Orbital Sanders
|
|
Form Type
|
Vacuum
|
|
For Use On
|
Aluminum, Carbon Steel, Composites, Fiberglass, Fibreglass, Gelcoat, Glass, Hard Composite, Paint, Soft Composite, Softwood, Solid Surface
|
|
Grit
|
P100, P120, P150, P180, P220, P240, P320, P400, P500, P80
|
|
Hole Configuration
|
500X, 600Z
|
|
Industries
|
Aerospace, AOEM, Composite, Cutting Tool Manufacturing, Marine, Metalworking, Paint Preparation, Transportation & Heavy Equipment
|
|
Market
|
Facilities Management
|
|
Maximum Speed
|
10000 rpm, 12000 rpm
|
|
Max RPM
|
10000, 12000
|
|
Net Weight (Imperial)
|
2.3 lb, 3.1 lb, 3.18 lb, 3.4 lb, 3.46 lb, 3.51 lb, 3.66 lb, 3.88 lb, 4.06 lb, 4.16 lb, 4.2 lb, 4.21 lb, 4.42 lb, 4.69 lb, 4.74 lb, 5.06 lb, 5.1 lb, 5.3 lb, 5.47 lb, 5.65 lb, 5.66 lb, 5.83 lb, 6.07 lb, 6.66 lb, 6.7 lb, 7.16 lb, 7.5 lb, 8 lb, 8.65 lb, 8.75 lb
|
|
Net Weight (Metric)
|
1.04 kg, 1.41 kg, 1.44 kg, 1.54 kg, 1.57 kg, 1.59 kg, 1.66 kg, 1.76 kg, 1.84 kg, 1.89 kg, 1.91 kg, 2 kg, 2.13 kg, 2.15 kg, 2.29 kg, 2.31 kg, 2.4 kg, 2.48 kg, 2.56 kg, 2.57 kg, 2.64 kg, 2.65 kg, 2.75 kg, 3.02 kg, 3.04 kg, 3.25 kg, 3.4 kg, 3.63 kg, 3.92 kg, 3.97 kg
|
|
Number of Vacuum Holes
|
5, 6
|
|
Overall Diameter (Imperial)
|
5 in, 6 in
|
|
Overall Diameter (Metric)
|
127 mm, 152.4 mm
|
|
Position
|
Better
|
|
Primary Application
|
Metalworking, Other Door Assembly Applications, Woodworking, Composite & Advanced Materials
|
|
Product Color
|
Gold
|
|
Product Form
|
Disc Roll
|
|
Segment
|
Maintenance
|
|
Substrate
|
Aluminum, Carbon Steel, Composite, Fiberglass, Gelcoat, Glass, Hard Composite, Paint, Soft Composite, Softwood, Solid Surface
|
|
Substrate Category
|
Composite, Metal, Paint & Primer, Wood
|
|
Vacuum Support
|
No, Yes
|
Product Details
- Adhesive backing allows for quick application and easy removal
- Convenient disc rolls eliminate the need to remove disc liners from individual discs
- Strong, C-weight paper backing provides extra durability when compared to lighter weight paper backings
- Aluminum oxide mineral is durable, cuts fast, and performs well on many surfaces
- Load-resistant coating helps prevent premature loading of the disc surface to maximize cut and extend the life of the abrasive grains

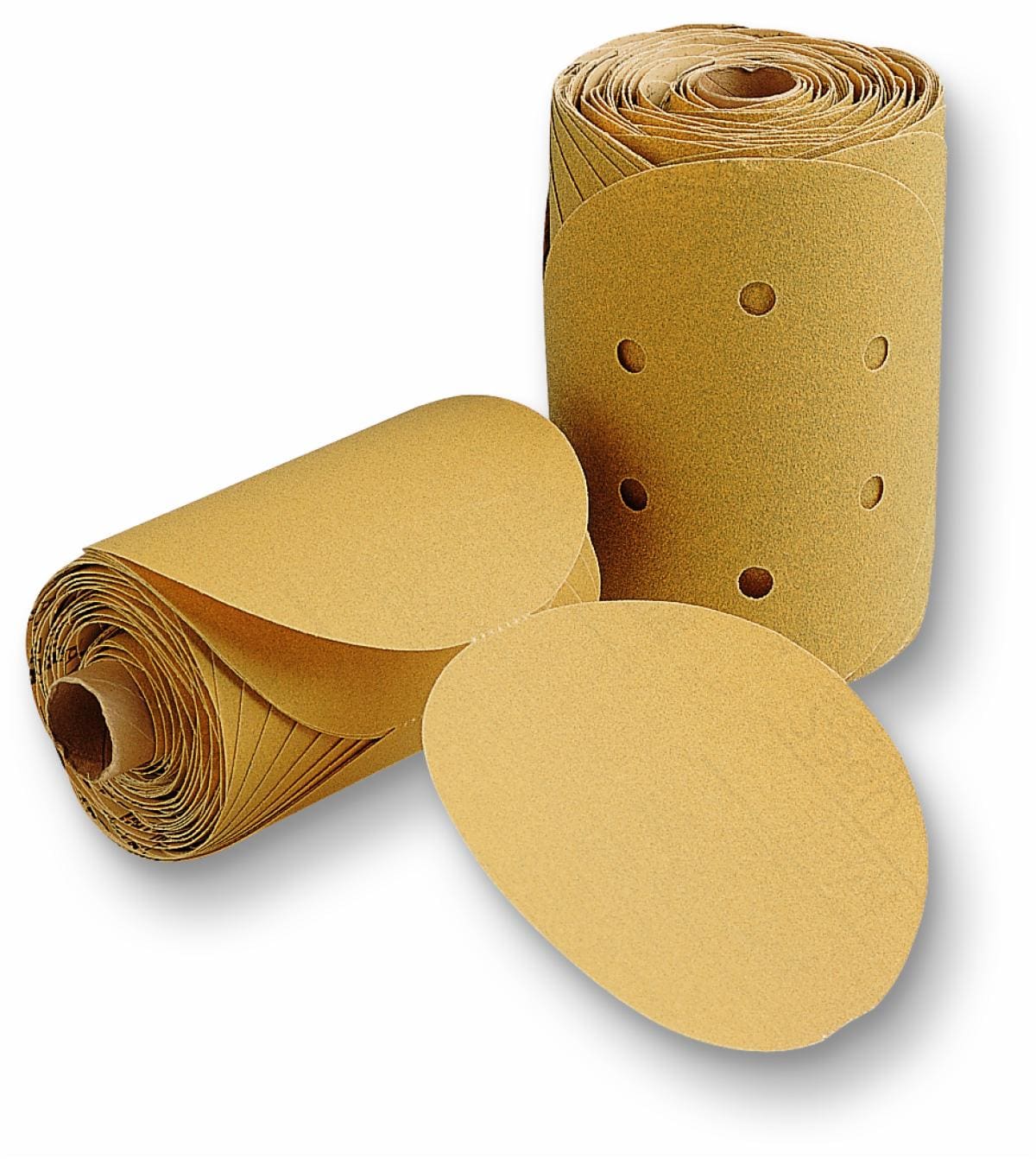

3M™ Stikit™ Paper Disc Roll 236U offers a versatile disc with a convenient adhesive backing ready for quick and easy attachment to a 3M™ Stikit™ backup pad (sold separately). The roll offers quick access to a disc and eliminates disc liners. The disc features a strong, C-weight paper backing that resists wear during aggressive sanding.
The open-coat construction and load-resistant coating help prevent clogging to maximize cut and the useful life of the disc. 3M™ Stikit™ Paper Disc Roll 236U can be used for sanding and finishing on many different surfaces, such as paint, primer, softwood, metal, plastic, hard and soft composites, and fiberglass.
Stikit™ Discs: Ready-to-Use
Our 3M™ Stikit™ discs are designed to handle a wide range of sanding and finishing needs. These high-quality, coated abrasive products come ready to use with a pressure sensitive adhesive coating on the backside so they conveniently press on to the backup pad, and remove cleanly, leaving an uncontaminated surface for the next disc. The Stikit™ disc should be used in conjunction with our 3M™ Stikit™ backup pad (also called a disc pad and sold separately) that is attached to a disc sander, random orbital sander, or stationary disc sander.
Benefits of Aluminum Oxide
Aluminum oxide is a popular choice among industrial professionals because of its fast cut-rate and long life. This mineral makes a tough, durable abrasive that self-fractures to expose fresh cutting edges, whereas traditional natural abrasives dull more quickly. Due to its fast cut-rate, hardness, and strength, it is widely used in grinding applications in addition to sanding and finishing applications. Aluminum oxide is suitable for a wide variety of materials in both woodworking and metalworking, including ferrous alloys.
Load-Resistant for Prolonged Sharp Cut and Service Life
3M™ Stikit™ Paper Discs feature a load-resistant coating that allows the disc to continue cutting even when sanding softwoods, paints, and other materials that would, otherwise, clog the surface of the disc and hinder sanding ability. An open coat means the abrasive grains are spaced slightly apart so that dust can escape rather than loading the cutting edge of the grains, thereby optimizing cut-rate and disc life.
Learn more about 3M™ Paper Disc 236U (PDF, 3 Mb)
