3M™ Shrouded Boardmount Header 1.27 mm (0.050 in) Pitch Latch and Eject 452 Series

  • 3M Product Number 452 Series
  • 3M ID B30000148
  • UPC 08887862410466

Helps enable design flexibility in wire-to-board and PLC controllers, especially for small devices

True half-size .050”/1.27mm pitch saves space without significant reduction in connections

Delivers high connection density to ribbon cable applications

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 371KB)

spinner


Details

Highlights
  • Helps enable design flexibility in wire-to-board and PLC controllers, especially for small devices
  • True half-size .050”/1.27mm pitch saves space without significant reduction in connections
  • Delivers high connection density to ribbon cable applications
  • Helps enable mass IDC termination for faster connection time
  • Available latching and ejection system helps enable reliable connections in challenging environments
  • Mates with 3M™ Ribbon Cable Wiremount Socket 1.27 mm (0.050") Pitch 451 Series
  • UL and CUL Listed

3M™ Shrouded Boardmount Header 452 Series maximizes design flexibility while minimizing PCB footprint for ribbon cable connections. Its .050 in. pitch delivers higher connection density in smaller spaces – allowing for many more connections per board and less cost per assembly. Unlike many other connectors the header features a true half-size board footprint, so it integrates easily into designs using the industry standard .100 in. for headers and sockets.

  • Icon of a circuit board representing high board density
    Higher Board Density
  • Icon of an arrow entering a gear representing simple integration
    Simple Integration
  • Icon of a shrinking square representing space savings
    Space Savings
  • Icon of arrows expanding on six axes representing versatility
    Versatility

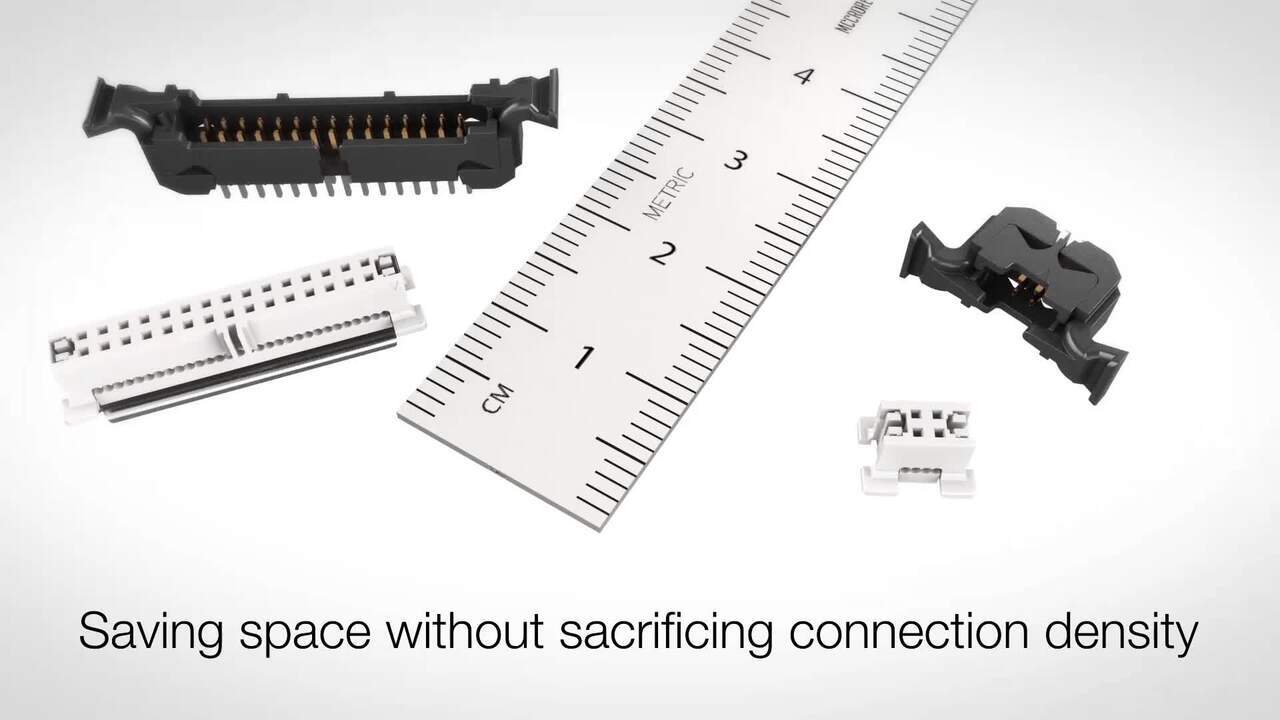

  • Image comparing the size of the boardmount header versus a dime
  • A complete space-saving solution

    3M™ Shrouded Boardmount Header 452 Series mates with the 3M™ Ribbon Cable Wiremount Socket 451 Series. The standard shrouded header protects pins and features center slot for polarization. It is available in multiple position counts up to 50. A standard shrouded header helps protect pins and features center slot for polarization, with or without optional friction latches which help reduce overall connection time and help prevent accidental disconnections yet allow for easy ejection of the socket when needed.

    The 3M header 452 series is available in vertical mount, right angle mount, thru-hole and SMT configurations, and works with several 3M cables. Available 30 μ" Au and Au flash available plating versions allow for various mating/unmating cycles. Optional strain relief helps guard against damage, especially against cable pulls.

Recommended application icon of a wire inserting into a board mount connector representing wire-to-board connecting
