- Industry standard compatible
- High temperature dielectric
- No lead wave and reflow solder compatible
- Unique lengths available
Specifications
|
Attribute Name
|
Value
|
|---|---|
|
Brand
|
3M™
|
|
Connector Style
|
Header
|
|
Contact Base Material
|
Copper Alloy
|
|
Current Rating
|
1 A
|
|
Insulation Material
|
Glass Filled LCP, Glass Filled Polyester (LCP)
|
|
Insulation Resistance
|
> 1 × 10^9 Mega Ohm at 250 VDC
|
|
Maximum Operating Temperature (Celsius)
|
105 Degree Celsius
|
|
Maximum Operating Temperature (Fahrenheit)
|
221 Degree Fahrenheit
|
|
Minimum Operating Temperature (Fahrenheit)
|
-67 Degree Fahrenheit
|
|
Tech Sheet Number
|
TS-0808
|
|
Voltage Rating
|
500 Vrms at Sea Level
|
Details
- Industry standard compatible
- High temperature dielectric
- No lead wave and reflow solder compatible
- Unique lengths available
- Maximizes use of PC board space
- Mates with boardmount and wiremount products
- End stackable feature
- Side stackable feature
- Pin Strip Headers are available in tape and reel with vacuum cap for automatic placement
- See Regulatory Information Appendix link for chemical compliance information
- For more information, refer to Data Sheet TS0808 (TS-0808)

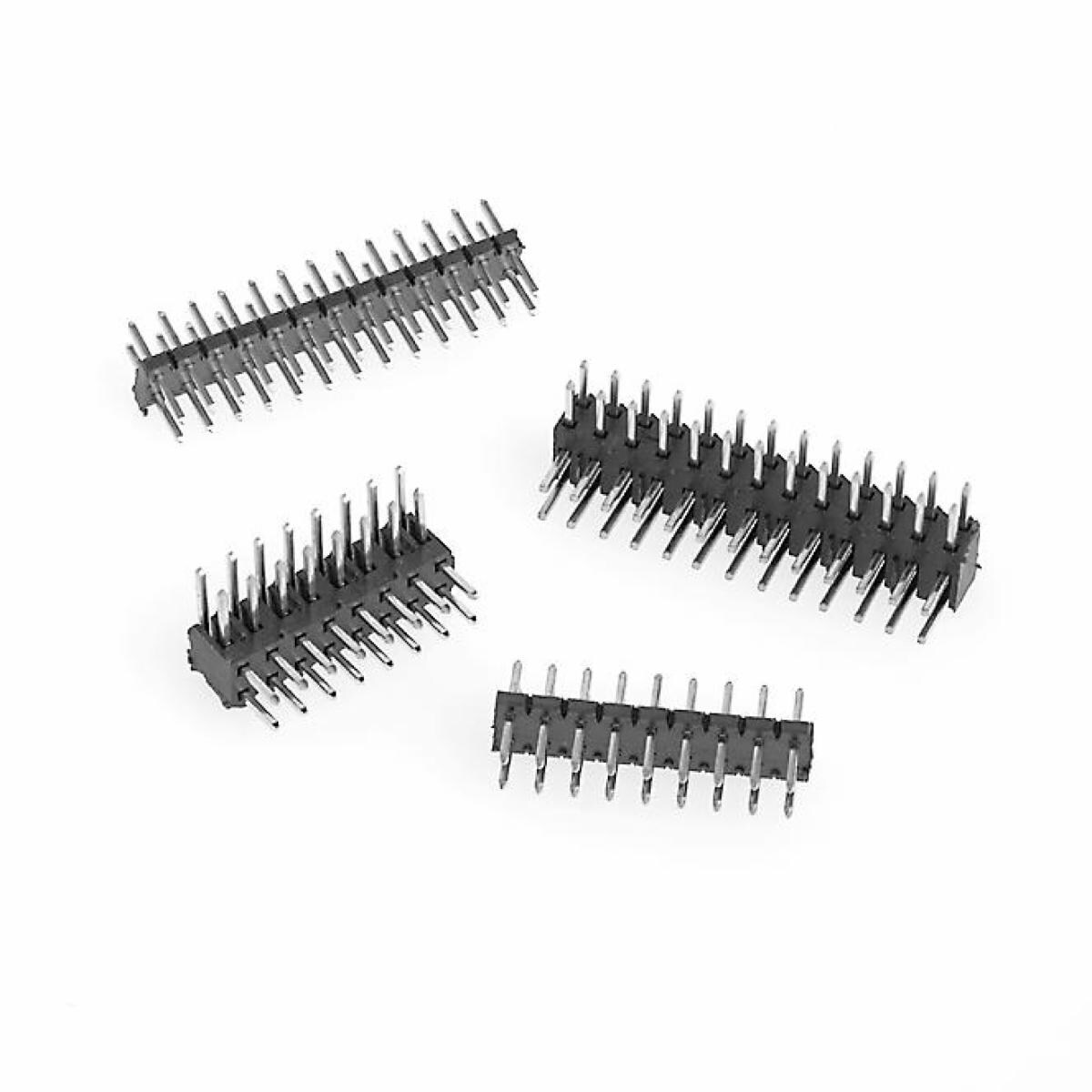

1512 Series, 2mm Header, Straight & Right Angle, Thru Hole and SMT
