- Connector is mirror-image version of 3310-0000 connector
- Eliminates contact numbering problems when connecting to both sides of pin field
- Positive locking metal "J" clip provides high cover retention
- Optional strain relief and pull tab available
Specifications
|
Attribute Name
|
Value
|
|---|---|
|
Brand
|
3M™
|
|
Connector Style
|
Receptacle
|
|
Contact Base Material
|
Copper Alloy
|
|
Current Rating
|
1 A
|
|
Features
|
Feed Through
|
|
Flammability
|
UL 94V-0
|
|
Insulation Material
|
Glass Filled Polyester (PBT)
|
|
Interface Style
|
Rectangular Socket
|
|
Market
|
Facilities Management
|
|
Markings
|
3M Logo, Part Identification Number and Orientation Triangle
|
|
Maximum Conductor Size (Imperial)
|
26 AWG (Stranded)
|
|
Maximum Operating Temperature (Celsius)
|
105 Degree Celsius
|
|
Minimum Conductor Size (Imperial)
|
28 AWG (Stranded)
|
|
Mounting Option
|
None
|
|
Overall Height (Imperial)
|
0.41 in
|
|
Overall Height (Metric)
|
10.4 mm
|
|
Overall Length (Imperial)
|
0.68 in
|
|
Overall Length (Metric)
|
17.3 mm
|
|
Overall Width (Imperial)
|
0.24 in
|
|
Overall Width (Metric)
|
6.1 mm
|
|
Segment
|
Electrical
|
|
Tech Sheet Number
|
TS-0096
|
|
Voltage Rating
|
1000 Vrms at Sea Level
|
|
Withstanding Voltage
|
1000 Vrms at Sea Level
|
Details
- Connector is mirror-image version of 3310-0000 connector
- Eliminates contact numbering problems when connecting to both sides of pin field
- Positive locking metal "J" clip provides high cover retention
- Optional strain relief and pull tab available
- RoHS compliant
- For more information, refer to Data Sheet TS0096 (TS-0096)

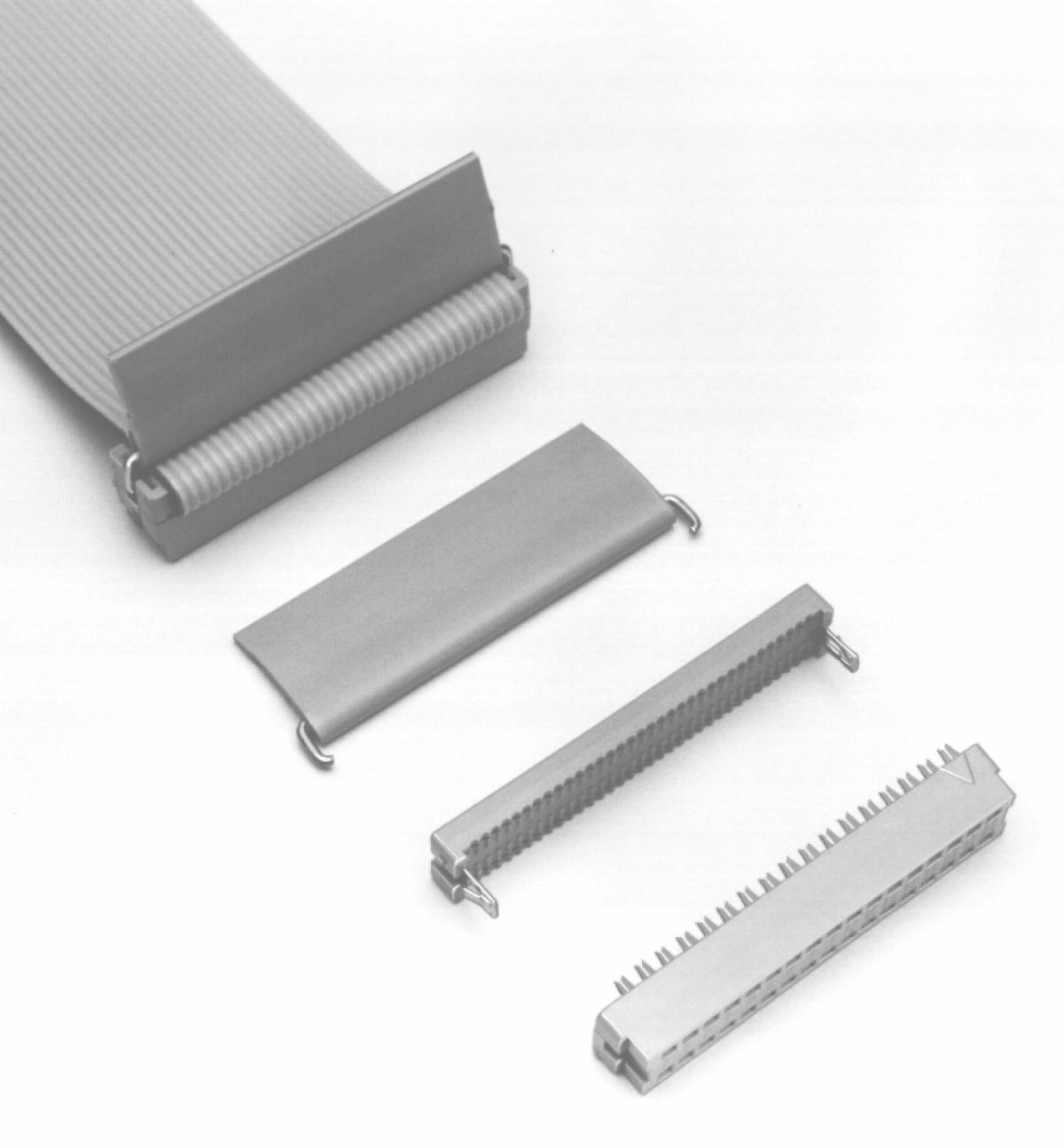

.100" × .200", .050" Pitch Cable, 34 Pos, Wiremount Backplane Connector
