- High temperature dielectric
- “No lead” reflow solder compatible
- Maximizes use of PC board space
- End stackable feature
Specifications
|
Attribute Name
|
Value
|
|---|---|
|
Tech Sheet Number
|
TS-2158
|
Details
- High temperature dielectric
- “No lead” reflow solder compatible
- Maximizes use of PC board space
- End stackable feature
- Mates with boardmount and wiremount products
- See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information
- For more information, refer to Data Sheet TS2158 (TS-2158)

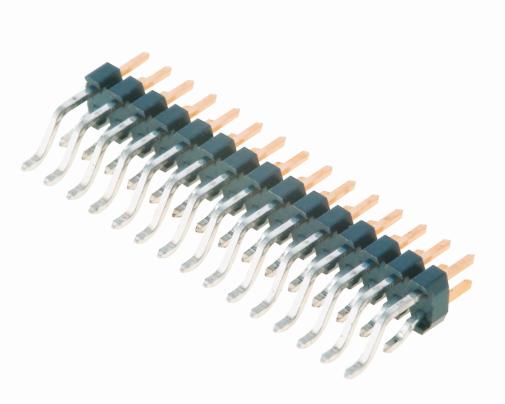

951 Series, 2mm Header, Single and Dual Row, Right Angle, SMT
