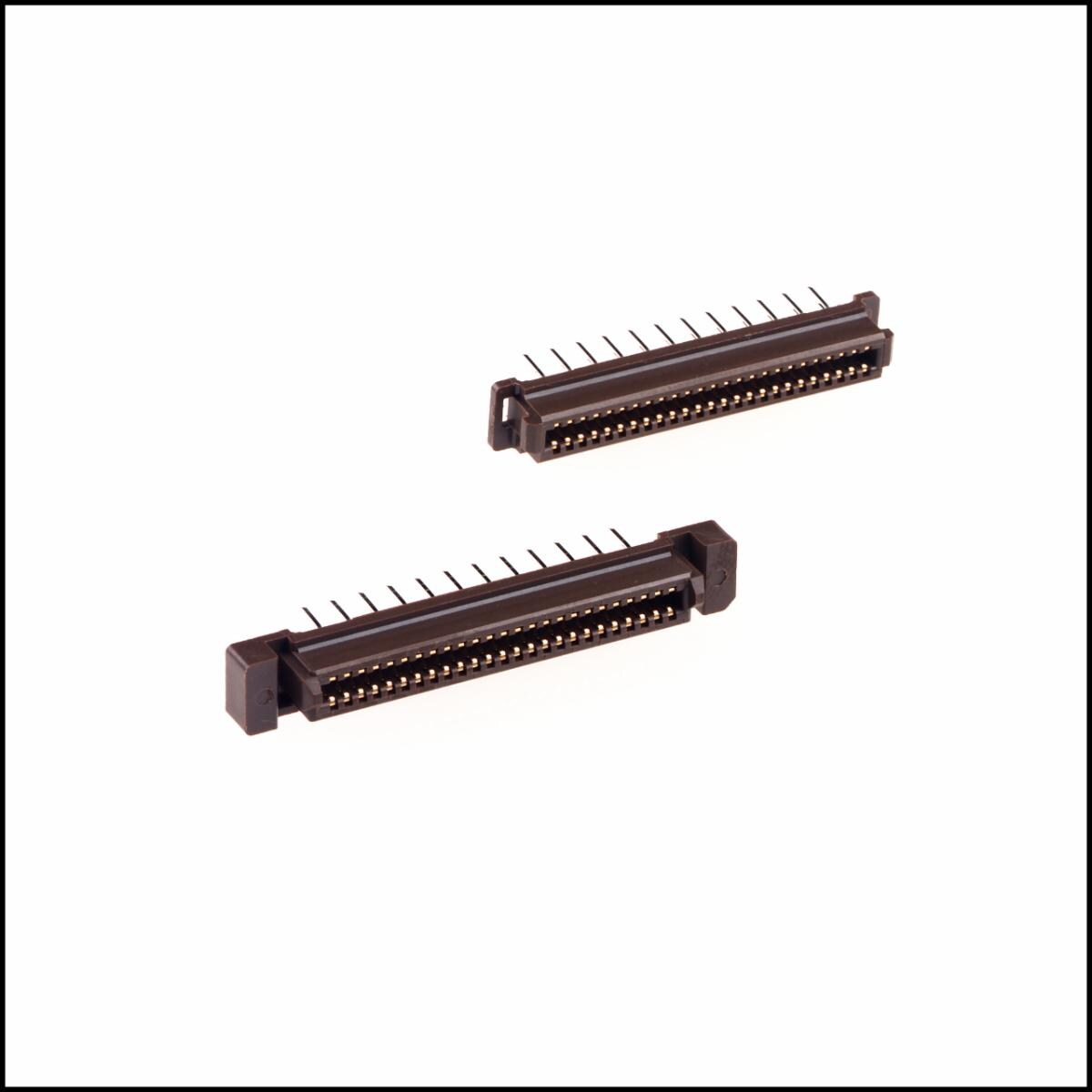

3M™ Pak 50 Low Profile Socket, P50L Series

3M Product Number P50L Series
3M ID B00046523
UPC 00051111740194

Low profile (7-12 mm) is ideal for through-hole board stacking

High temperature insulator allows IR and wave soldering

Guide posts help minimize misalignment

Frequently viewed resources

Details

Highlights

Low profile (7-12 mm) is ideal for through-hole board stacking
High temperature insulator allows IR and wave soldering
Guide posts help minimize misalignment
Vertical stacking connectors are available with and without flanges
Retention clips help stabilize connector during wave soldering

The 3M™ Pak 50 Low Profile Socket, P50L Series is a .050" vertical socket for board stacking applications requiring board mating heights of 7 mm up to 12 mm. Guide posts help minimize misalignment, allowing technicians to install the through-hole board-to-board socket accurately.

The .050” 3M™ Pak 50 Low Profile Socket, P50L Series features a high temperature insulator for IR and wave soldering, and are available with or without flanges. Retention clips help stabilize the connector during wave soldering.
