- Double wipe contact is reliable and failure free
- Loop hole on top of the contact provides easy removal for testing
- Color coded body for easy recognition of plating
- Available in strips of twenty for enhanced robotic handling capability
Specifications
|
Attribute Name
|
Value
|
|---|---|
|
Brand
|
3M™
|
|
Contact Base Material
|
Phosphor Bronze
|
|
Insulation Material
|
Glass Filled Polyester (PBT)
|
|
Insulation Resistance
|
>5 X 10^9 Ohms @ 500 Vdc
|
|
Interface Style
|
Rectangular Socket
|
|
Markings
|
3M Logo
|
|
Mounting Type
|
Boardmount
|
|
National Stock Number
|
5935014141054
|
|
Number of Positions
|
2
|
|
Tech Sheet Number
|
TS-0528
|
Details
- Double wipe contact is reliable and failure free
- Loop hole on top of the contact provides easy removal for testing
- Color coded body for easy recognition of plating
- Available in strips of twenty for enhanced robotic handling capability
- Open top contact allows easy probing and testing
- Gold plated versions are RoHS compliant
- For more information refer to Data Sheet TS0528 (TS-0528)

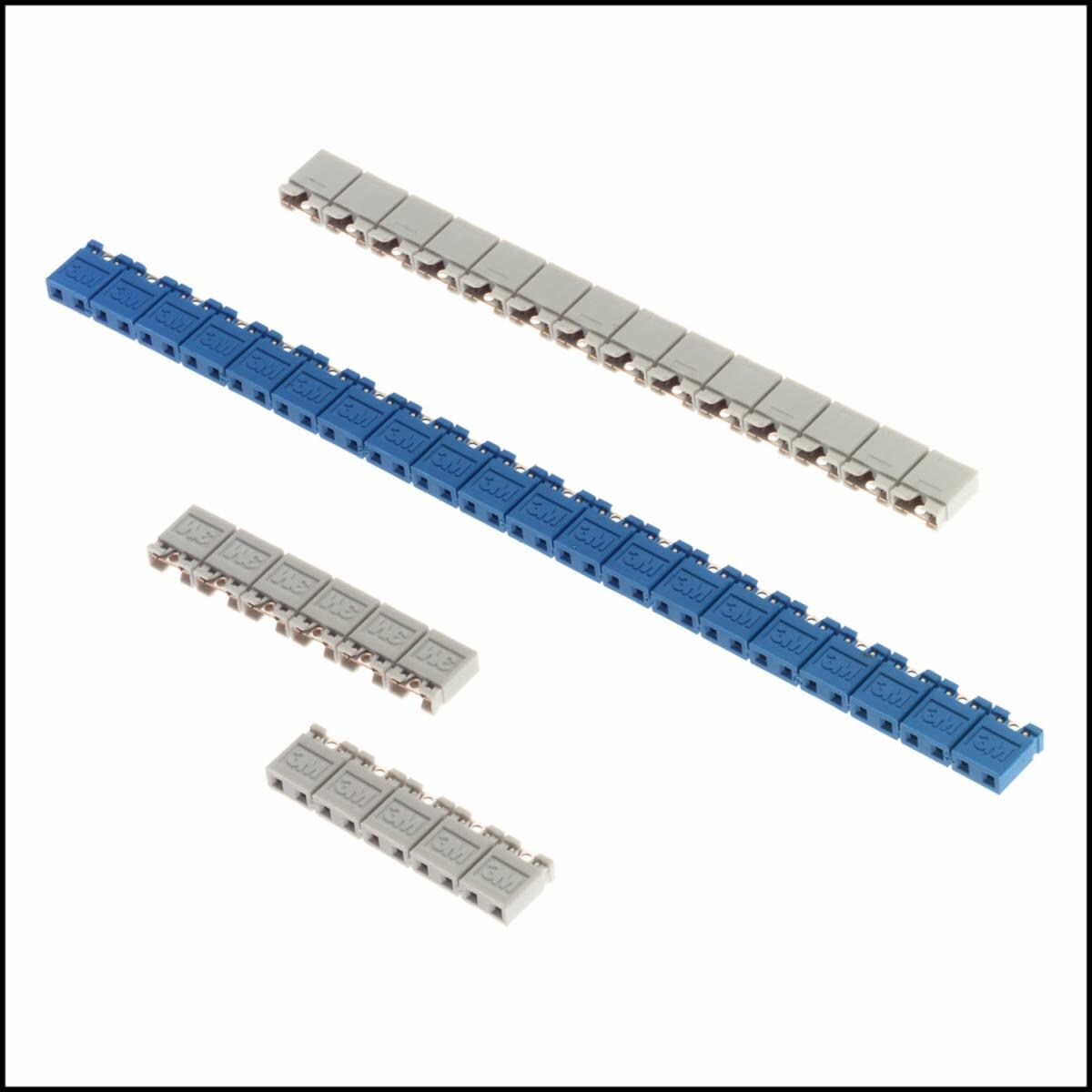

92995X Series Shunt, .100", Open top contact
