3M™ Wiremount Socket Preassembled 3000 Series

  • 3M Product Number 3000 Series
  • 3M ID B00038710
  • UPC 08887862428829

Industry standard IDC socket provides versatility to system design

Mates with 3M headers, plugs and pin strips for quick connect/disconnect efficiency

Accepts flat cable or discrete wire

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 515KB)

spinner


Details

Highlights
  • Industry standard IDC socket provides versatility to system design
  • Mates with 3M headers, plugs and pin strips for quick connect/disconnect efficiency
  • Accepts flat cable or discrete wire
  • Open or closed end covers available
  • Faster termination can help lower costs and improve productivity

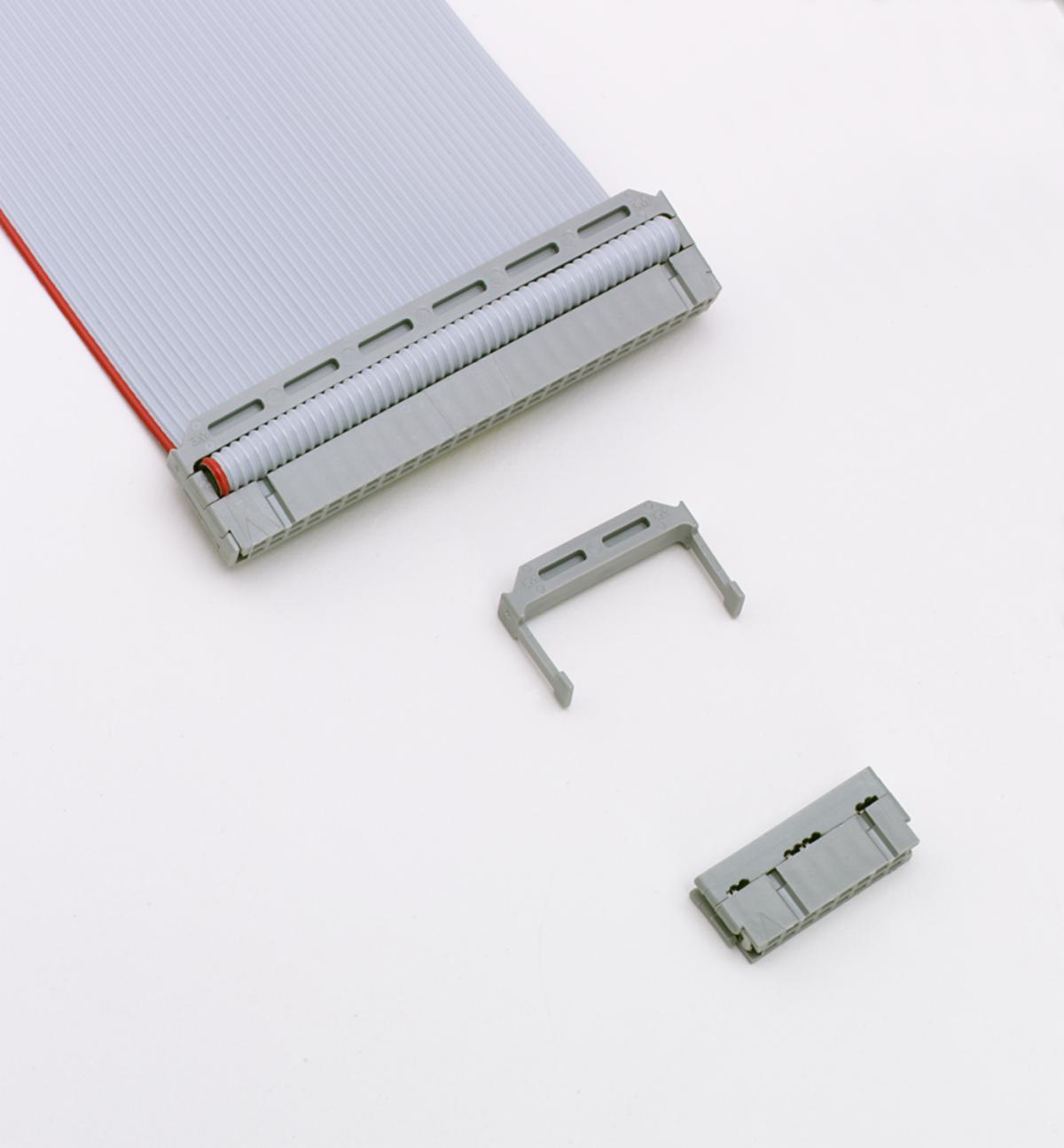

3M™ Wiremount Socket Preassembled 3000 Series are industry standard IDC sockets that mates with 3M headers, plugs, and pin strips for faster termination and quick connect/disconnect capability. The 3M socket 3000 series assemblies can provide lower applied cost and help improve productivity in efficient system design. The socket accepts flat cable or discrete wire and is available with open or closed end covers.

Sockets feature positive locking metal "J" clips for high cover retention. 3M™ Wiremount Socket Preassembled 3000 Series is available with plastic or low profile metal strain relief.
