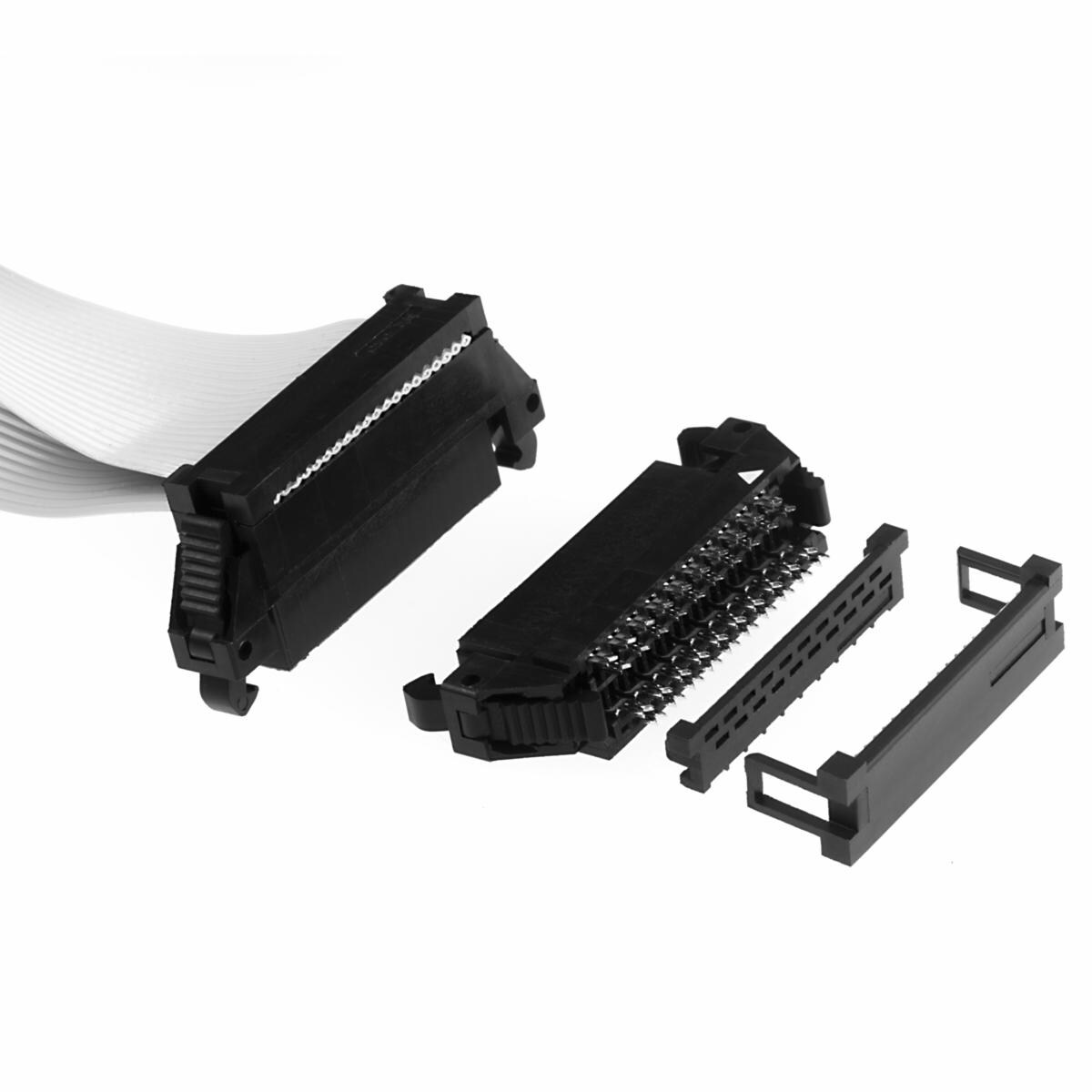

3M™ Pak 50 Wiremount Socket, P50 Series

  • P50 connector terminates two separate 1.27mm (50 mil) pitch flat ribbon cables
  • Accepts 28 AWG PVC cable (3M 3365 Series)
  • Latch/eject mechanism maintains a secure connection
  • Cable strain relief standard
 More...
View all details
Find A Part
spinner
Specifications
Attribute Name
Value
Brand
3M™
Compatible Wire Type
Ribbon Cable
Connector Style
Receptacle
Current Rating
0.5 A
Features
Closed End, Strain Relief
Insulation Material
LCP
Mating Contact Finish Material
Gold Flash
Maximum Operating Temperature (Celsius)
85 Degree Celsius
Minimum Operating Temperature (Celsius)
-55 Degree Celsius
Number of Contact Rows
2
Number of Contacts
20, 30, 50
Overall Height (Imperial)
0.85 in
Overall Height (Metric)
21.6 mm
Overall Length (Imperial)
1.251 in, 1.751 in
Overall Length (Metric)
33.05 mm, 44.48 mm
Overall Width (Imperial)
0.331 in
Overall Width (Metric)
8.4 mm
PCB Mounting Style
In-line Free Hanging
Pitch (Imperial)
0.05 in
Pitch (Metric)
1.27 mm
Product Series
P50
Row-to-Row Spacing (Imperial)
0.05 in
Row-to-Row Spacing (Metric)
1.27 mm
Size (Imperial)
0.331 in x 1.251 in, 0.331 in x 1.751 in
Size (Metric)
8.4 mm x 33.05 mm, 8.4 mm x 44.48 mm
Specifications Met
UL 94V-0
Tech Sheet Number
TS-1163
Withstanding Voltage
650 Vrms at Sea Level
Details
  • P50 connector terminates two separate 1.27mm (50 mil) pitch flat ribbon cables
  • Accepts 28 AWG PVC cable (3M 3365 Series)
  • Latch/eject mechanism maintains a secure connection
  • Cable strain relief standard
  • Tooling available for customer cable assembly termination
  • RoHS compliant
  • For more information, refer to Data Sheet TS1163 (TS-1163)

P50 Series, .050" Wiremount Socket, IDC, for .050" Pitch Cable
