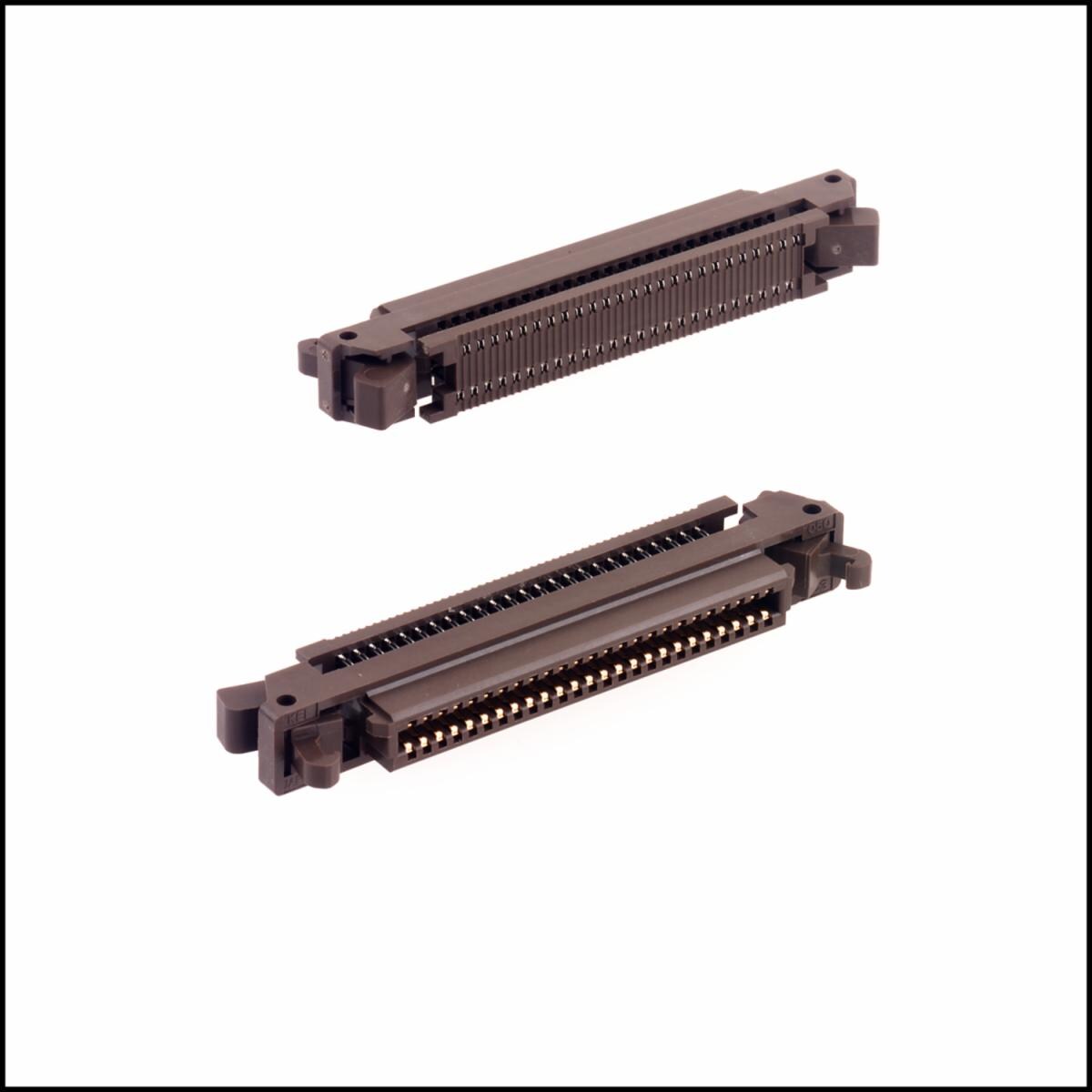

  6. 3M™ Pak 50 Low Profile Wiremount Socket, P25LE Series

3M™ Pak 50 Low Profile Wiremount Socket, P25LE Series

  • P25LE terminates 25 mil pitch, 30 AWG stranded wire, PVC insulated, flat ribbon cable
  • Low profile 11.8 mm mated height
  • P50LE mate offers surface mount, straight and right angle thru-hole options
  • Latch/eject mechanism maintains a secure connection
 More...
View all details
Find A Part
spinner
Specifications
Attribute Name
Value
Brand
3M™
Connector Style
Receptacle
Current Rating
0.5 A
Features
Feed Through, Strain Relief
Flammability
UL 94V-0
Insulation Material
Glass Filled Polyester (PBT)
Maximum Operating Temperature (Celsius)
85 Degree Celsius
Overall Height (Imperial)
0.402 in
Overall Height (Metric)
10.2 mm
Overall Length (Imperial)
1.096 in, 1.167 in, 1.417 in, 1.667 in, 1.917 in, 2.367 in, 2.667 in, 3.167 in
Overall Length (Metric)
27.83 mm, 29.63 mm, 31.78 mm, 42.33 mm, 48.68 mm, 60.11 mm, 67.73 mm, 80.43 mm
Overall Width (Imperial)
0.26 in, 6.6 in
Overall Width (Metric)
0.26 mm, 6.6 mm
Tech Sheet Number
TS-1142
Voltage Rating
300 Vrms at Sea Level
Details
  • P25LE terminates 25 mil pitch, 30 AWG stranded wire, PVC insulated, flat ribbon cable
  • Low profile 11.8 mm mated height
  • P50LE mate offers surface mount, straight and right angle thru-hole options
  • Latch/eject mechanism maintains a secure connection
  • Cable strain relief standard
  • Tooling available for customer cable assembly termination
  • RoHS compliant
  • For more information, refer to Data Sheet TS1142 (TS-1142)

P25LE, .050" Wiremount Socket, low profile, latch/eject mechanism, IDC, for .025" Pitch Cable
