- Industry standard compatible
- Mates with Pak 20 (2 mm x 2 mm) grid pin strips
- Low profile
- Preassembled covers
Specifications
|
Attribute Name
|
Value
|
|---|---|
|
Brand
|
3M™
|
|
Color Family
|
Gray
|
|
Connector Style
|
Receptacle
|
|
Current Rating
|
1.25 A
|
|
Features
|
Feed Through, Polarizing Key, Strain Relief
|
|
Flammability
|
UL 94V-0
|
|
Insulation Material
|
Glass Filled Polyester (PBT)
|
|
Maximum Operating Temperature (Celsius)
|
105 Degree Celsius
|
|
Overall Height (Imperial)
|
0.29 in, 0.37 in
|
|
Overall Height (Metric)
|
7.4 mm, 9.4 mm
|
|
Overall Length (Imperial)
|
0.45 in, 0.53 in, 0.84 in, 1.08 in, 1.63 in, 1.79 in, 2.03 in
|
|
Overall Length (Metric)
|
11.4 mm, 13.4 mm, 21.3 mm, 41.4 mm, 45.5 mm, 51.3 mm
|
|
Overall Width (Imperial)
|
0.16 in, 0.59 in, 0.67 in, 0.99 in, 1.77 in, 1.93 in, 2.17 in
|
|
Overall Width (Metric)
|
15 mm, 17 mm, 25.1 mm, 4.1 mm, 45 mm, 49 mm, 55 mm
|
|
Tech Sheet Number
|
TS-0523
|
|
Voltage Rating
|
500 Vrms at Sea Level
|
Details
- Industry standard compatible
- Mates with Pak 20 (2 mm x 2 mm) grid pin strips
- Low profile
- Preassembled covers
- Available with or without strain relief
- Available with optional centerbump polarity feature
- See Regulatory Information Appendix link for chemical compliance information
- For more information refer to Data Sheet TS0523 (TS-0523)

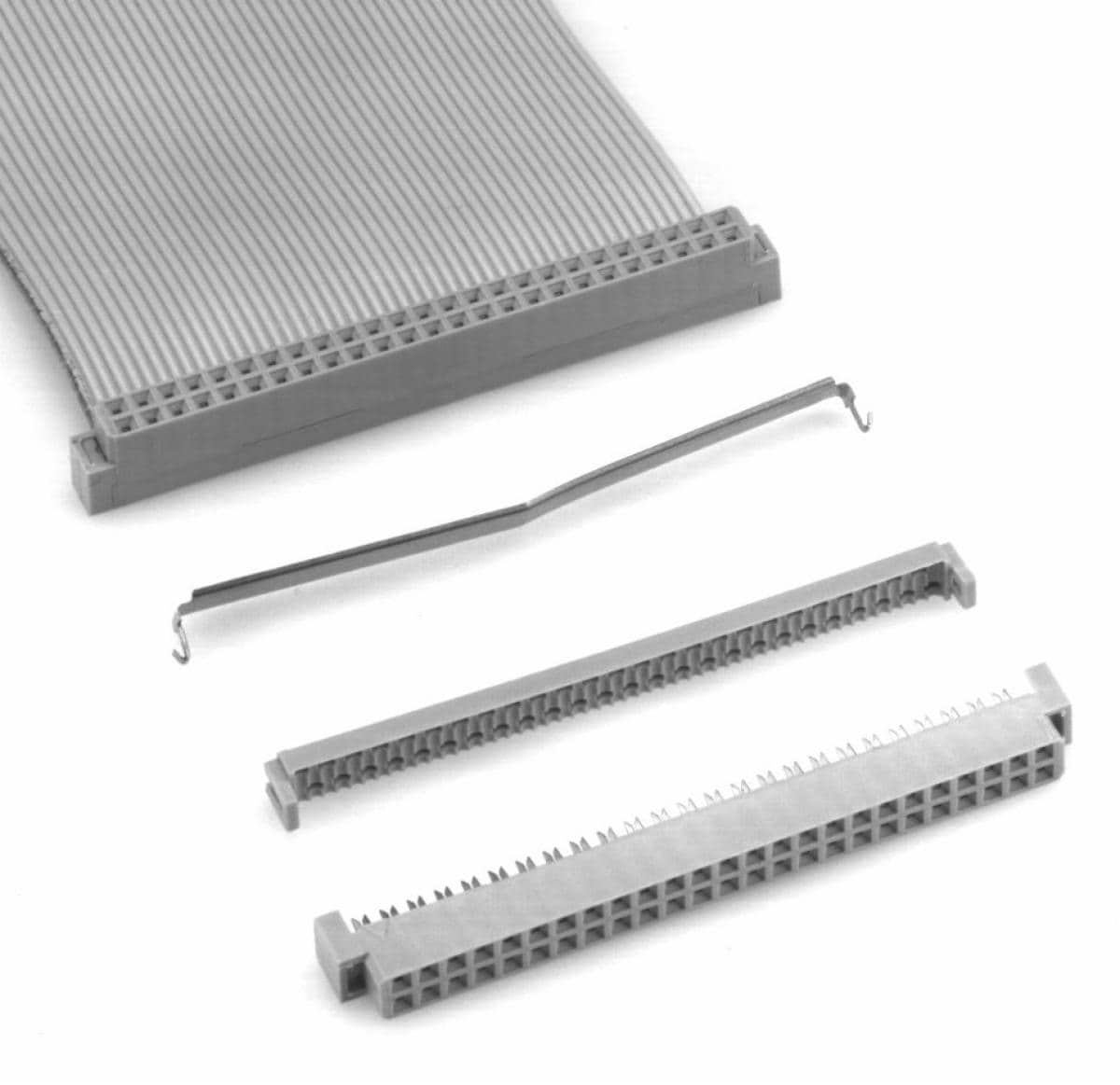

Series 1522, 2mm Wiremount Socket, IDC
