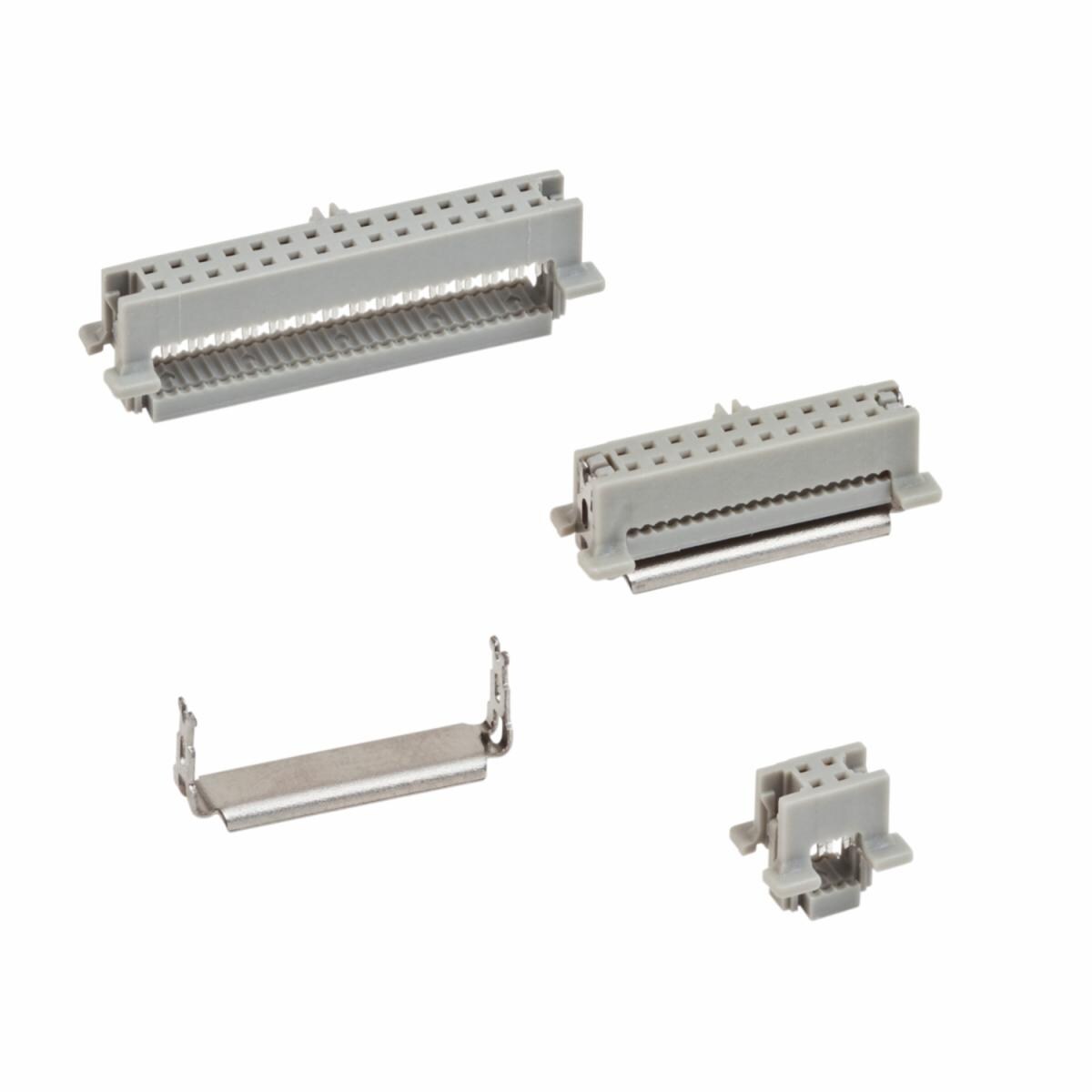

  7. 3M™ Ribbon Cable Wiremount Socket 1.27 mm (0.050 in) Pitch 451 Series

3M™ Ribbon Cable Wiremount Socket 1.27 mm (0.050 in) Pitch 451 Series

  • 3M Product Number 451 Series
  • 3M ID B00038568
  • UPC 08887862410305

Helps enable design flexibility in wire-to-board and PLC controllers, especially for small devices

True half-size .050”/1.27mm pitch saves space without significant reduction in connections

Delivers high connection density to ribbon cable applications

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 542KB)

spinner


Details

Highlights
  • Helps enable design flexibility in wire-to-board and PLC controllers, especially for small devices
  • True half-size .050”/1.27mm pitch saves space without significant reduction in connections
  • Delivers high connection density to ribbon cable applications
  • Helps enable cable end and feed through termination as well as mass IDC termination for faster connection time
  • Available friction latches help prevent accidental disconnection from box headers
  • Mates with 3M™ Shrouded Boardmount Header 1.27 mm (0.050 in) Pitch Latch and Eject 452 Series
  • UL and CUL Listed

3M™ Ribbon Cable Wiremount Socket 1.27 mm (0.050") Pitch 451 Series allows for much higher connection density in less board space. This 1.27 mm/.050" socket helps increase design flexibility – its small size makes for many more ribbon cable connections per board and less cost per assembly. Unlike many other connectors the header features a true half-size board footprint, so it integrates easily into designs using the industry standard .100 in. for sockets and headers. Friction latch configurations are available for increased protection against accidental disconnects when using a box header.

  • Icon of a circuit board representing high board density
    Higher Board Density
  • Icon of an arrow entering a gear representing simple integration
    Simple Integration
  • Icon of a shrinking square representing space savings
    Space Savings
  • Icon of arrows expanding on six axes representing versatility
    Versatility
  • Image comparing the size of the wiremount socket connector versus a dime
  • Part of a robust board-to-wire system at half size

    Versatile as well as space-saving for ribbon cable applications, 3M™ Ribbon Cable Wiremount Socket 1.27 mm (0.050") Pitch 451 Series is a robust connector in a small package. It features a socket body in multiple positions, along with a cover and an optional strain relief. Center polarization is available with or without optional friction latches. The UL & CUL Listed socket helps enable cable end and feed through termination as well as mass termination. Optional friction latches helps reduce overall connection time and help prevent accidental disconnections yet enable easy ejection of the socket when needed.

  • Insulation Displacement Connection

    This socket helps enable mass IDC termination of flat flex cables, saving installation time. Its top cover features cantilevered U-shaped contacts that accept .025” pitch ribbon cable. Simply inserting the cable into the cover and pushing it into the socket body makes stable, reliable metal-to-metal contact without the need to strip and crimp each connector.

  • Highly detailed rendering of the IDC termination of flat flex cables
Recommended application icon of a wire inserting into a board mount connector representing wire-to-board connecting
