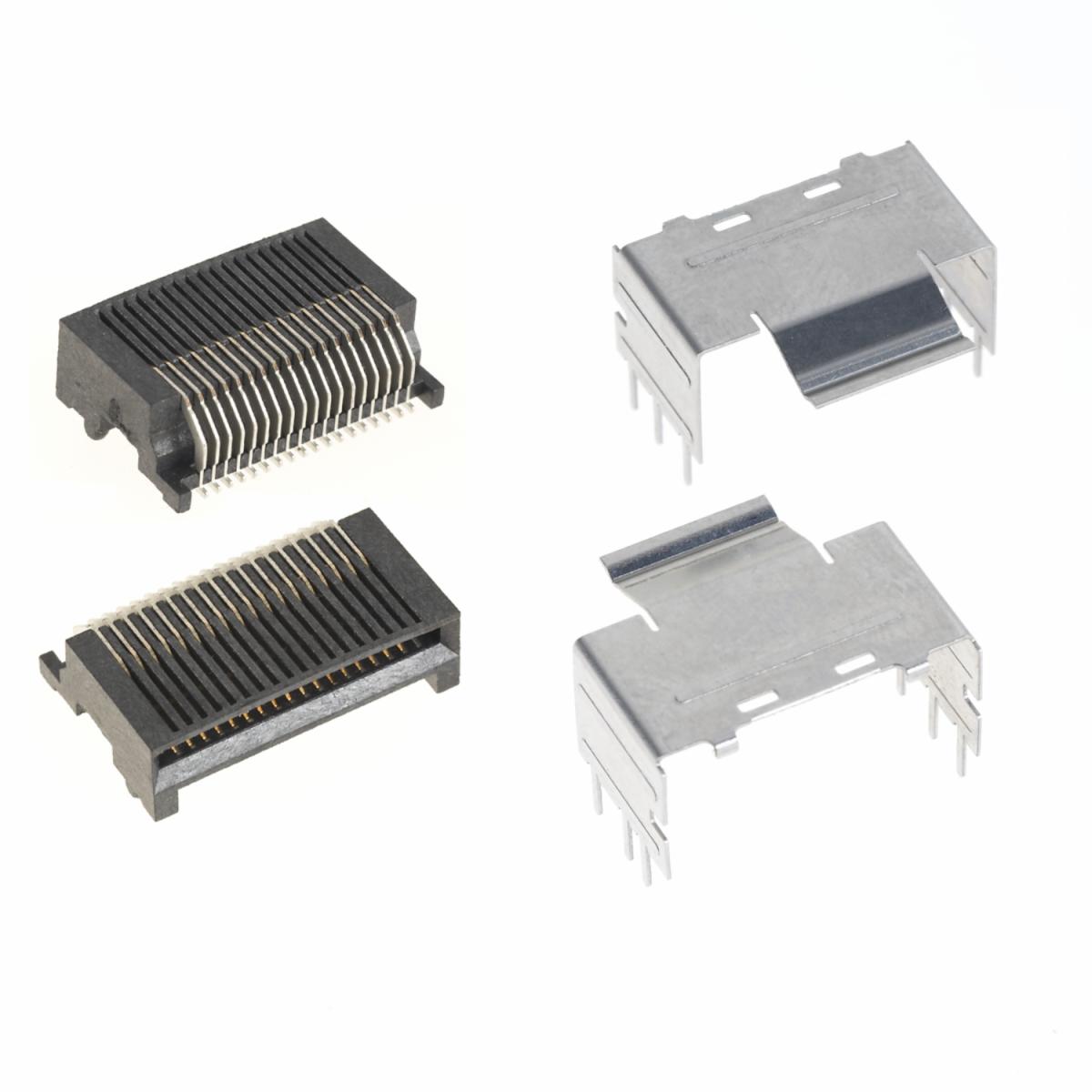

3M™ Mini Serial Attached SCSI (miniSAS) Connector/Shell, Right Angle, 8A36/8B36 Series

  • 3M ID B00036236

6 Gb/s input/output connector for server applications

Surfacemount termination on receptacle

Multiple tail types available for board assembly on shell guide

View more details
Frequently viewed resources
PDF (1) Copy 26Tech Data Sheet (POSTSCRIPT, 1MB)

spinner


Details

Highlights
  • 6 Gb/s input/output connector for server applications
  • Surfacemount termination on receptacle
  • Multiple tail types available for board assembly on shell guide
  • Multiple pin lengths for a range of board thicknesses on shell guide
  • Multiple backshell polarization options for cable assemblies on shell guide
  • Meets SFF-8086 Specification
  • Meets SAS Specification, SAS-1.1
  • See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information
  • For more information refer to Data Sheet TS2219 (TS-2219)

Internal Right Angle Receptacle/Right Angle Shell, Discrete
