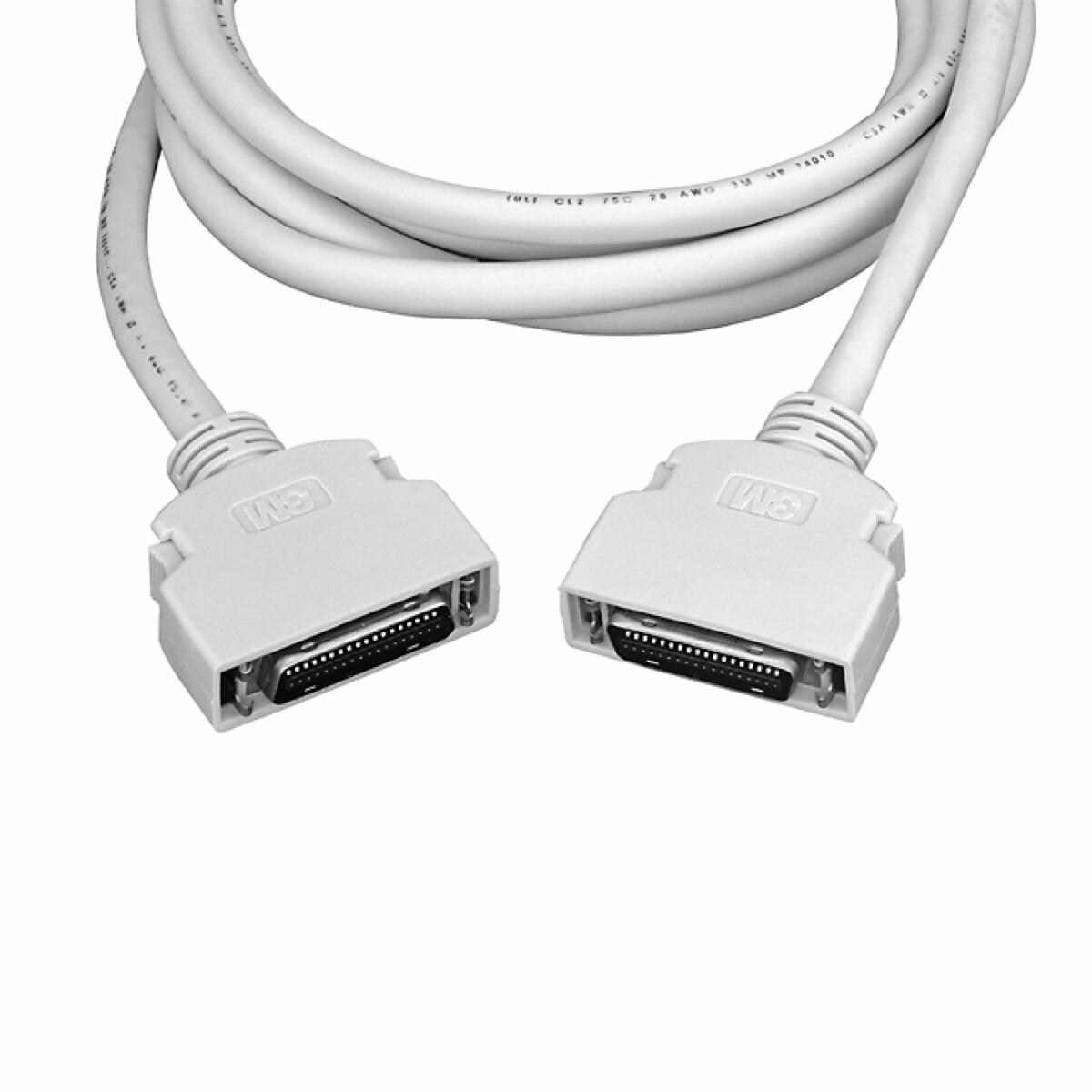

3M™ Mini Delta Ribbon (MDR) Cable Assembly, 14526-EZ5B-XXX-02C Series

  • Eight shielded differential pairs
  • Each differential twin-ax pair has a foil shield and drain wire
  • Entire cable bundle is shielded with foil and braid for additional signal protection
  • Rugged MDR Ribbon type contact
 More...
View all details
Find A Part
spinner
Typical Properties
Attribute Name
Value
Brand
3M™
Connector Style (End A)
Plug
Connector Style (End B)
Plug
Connector Type (End A)
MDR
Connector Type (End B)
MDR
Tech Sheet Number
TS-0866
Details
  • Eight shielded differential pairs
  • Each differential twin-ax pair has a foil shield and drain wire
  • Entire cable bundle is shielded with foil and braid for additional signal protection
  • Rugged MDR Ribbon type contact
  • Quick release latches
  • RoHS compliant
  • For more information refer to Data Sheet TS0866 (TS-0866)

.050" High Speed Digital Data Transmission - 26 position male, .5 to 5 meters
