  7. 3M™ Mini D Ribbon (MDR) Cable Assembly, 14H26-SZ3X-XXX-04C Series, 14H26-SZ3M-700-04C

3M™ Mini D Ribbon (MDR) Cable Assembly, 14H26-SZ3X-XXX-04C Series, 14H26-SZ3M-700-04C

  • 3M ID 7000007589

Flexible cable enables moving head applications.

For machine vision camera to frame grabber communications in applications where full CameraLink™ configuration is not necessary

Mates to popular 3M MDR 26 position receptacle

View more details
Frequently viewed resources

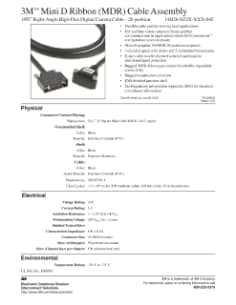

Tech Data Sheet (PDF, 691KB)

spinner


Details

Highlights
  • Flexible cable enables moving head applications
  • For machine vision camera to frame grabber communications in applications where full CameraLink™ configuration is not necessary
  • Mates to popular 3M MDR 26 position receptacle
  • 3 shielded quads with drains and 5 unshielded twisted pairs
  • Entire cable bundle shielded with foil and braid for additional signal protection
  • Rugged MDR ribbon type contact for reliable, repeatable connectivity
  • Rugged thumbscrew retention
  • EMI shielded junction shell
  • See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information
  • For more information refer to Data Sheet TS2259 (TS-2259)

.050” Right-Angle High-Flex Digital Camera Cable – 26 position
