3M(TM) Mini D Ribbon MDR Cable Assembly TS0757

Item 1 of 1

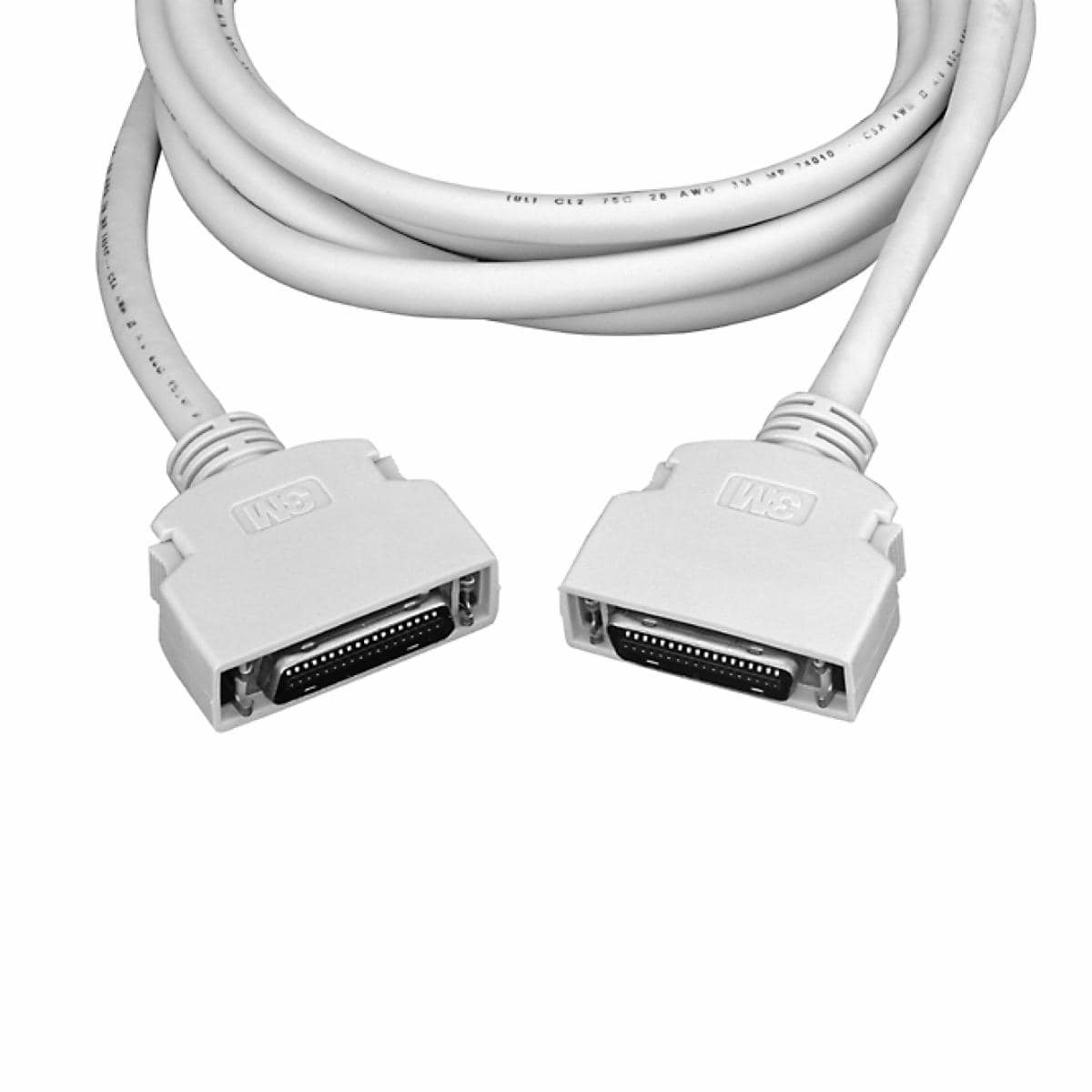

3M(TM) Mini D Ribbon MDR Cable Assembly TS0757

3M™ Mini Delta Ribbon (MDR) Cable Assembly, 14526-EZ8B-XXX-07C

3M(TM) Mini D Ribbon MDR Cable Assembly TS0757

1 of 1

Hover to zoom

Solution for Digital Displays, Datacom and Telecom applications
Supports LVDS FPD Link™, FlatLink™, ChannelLink™, PanelLink™/TMDS™ electrical interfaces
Each differential twin-ax pair has a foil shield and drain
Entire cable bundle is shielded with foil and braid for additional signal protection

View all details

Find A Part

Typical Properties

Attribute Name	Value
Brand	3M™
Connector Style (End A)	Plug
Connector Style (End B)	Plug
Connector Type (End A)	MDR
Connector Type (End B)	MDR
TDS Required	Yes
Tech Sheet Number	TS-0757

Details

Solution for Digital Displays, Datacom and Telecom applications
Supports LVDS FPD Link™, FlatLink™, ChannelLink™, PanelLink™/TMDS™ electrical interfaces
Each differential twin-ax pair has a foil shield and drain
Entire cable bundle is shielded with foil and braid for additional signal protection
Rugged MDR ribbon type contact
Quick release latches
RoHS compliant
For more information refer to Data Sheet TS0757 (TS-0757)

.050" High Speed Digital Data Transmission - 26 to 26 pos, .61 (2 ft) to 9 meters

Resources

Brochures

High Speed MDR Digital Data Tran (PDF, 326.1KB)

Data Sheets

3M™ MDR cable assy, 26 position, ts0757 (PDF, 221.3KB)

Product Selection Guides

3M™ MDR Connector Selection Guide (PDF, 556.7KB)
