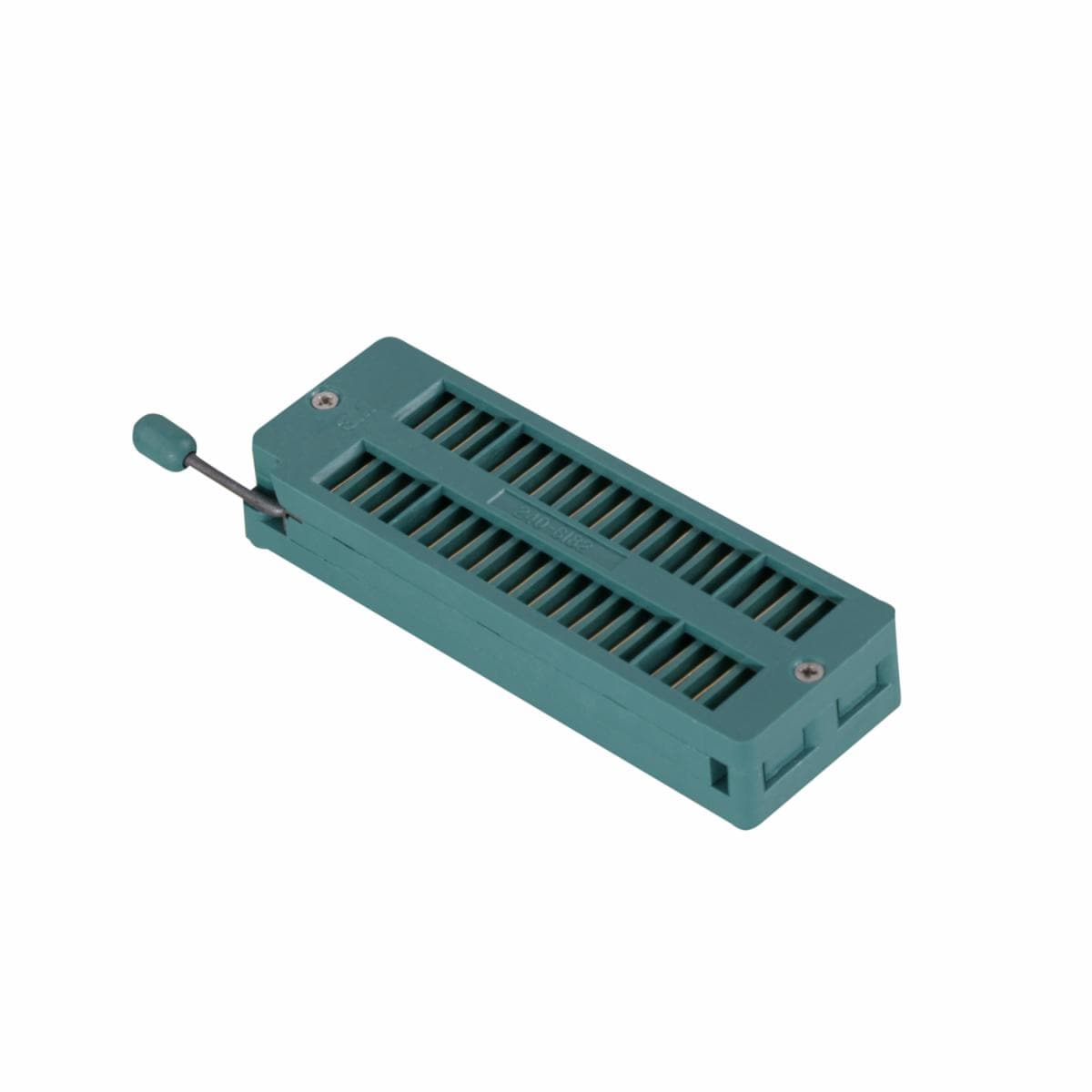

3M™ Textool™ Universal DIP Sockets

  • 3M ID B00035241
  • UPC 04901690065583,54901690089409,04901690078378,54901690065588,54901690082127,04901690089404,54901690078366,54901690086293,04901690078361,54901690078373,04901690082122,04901690086298

For DIP's with .100" (2.54 mm) lead spacing

Extra wide contact zone allows insertion of DIP's with distance between rows from .300" (7.62 mm) through .600" (15.24 mm)

Lever actuated zero insertion force mechanism

View more details
Frequently viewed resources

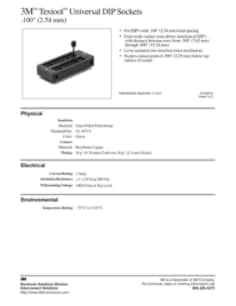

Tech Data Sheet (PDF, 693KB)

spinner


Typical properties

Details

Highlights
  • For DIP's with .100" (2.54 mm) lead spacing
  • Extra wide contact zone allows insertion of DIP's with distance between rows from .300" (7.62 mm) through .600" (15.24 mm)
  • Lever actuated zero insertion force mechanism
  • Socket contact point of .090" (2.29 mm) below top surface of socket
  • For more Information refer to Data Sheet TS0392 (TS-0392)

.100" (2.54 mm) Universal
