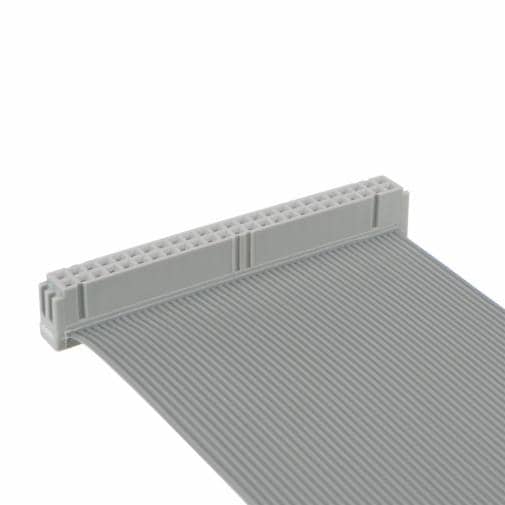

3M™ Molded Assembly 2M Series

  • 3M Product Number 2M Series
  • 3M ID B00035047
  • UPC 00076308710910

Excellent for robust long-term connections in high-vibration environments

Excellent for use with or without high flex cable applications

Molded one-piece design shields against elements

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 696KB)

spinner


Details

Highlights
  • Excellent for robust long-term connections in high-vibration environments
  • Excellent for use with or without high flex cable applications
  • Molded one-piece design shields against elements
  • Completed assemblies simplify parts management, virtually eliminate assembly costs
  • Molded-in strain relief creates low height profile for space savings
  • Compatible with standard 2 mm x 2 mm headers and board patterns
  • Available with PCB and DIP connectors
  • PCB connectors are available in multiple pin counts and orientations for versatility
  • Modular tooling allows customized designs

3M Molded Assembly 2M Series is used for applications requiring durable, long-lasting connections even in high-vibration environments and other difficult conditions. These fully customized connector/cable assemblies feature a rugged one-piece design and extra-strong beryllium copper contacts for extraordinary durability. Integrated strain reliefs and closed connector ends create a low height profile, maximizing use of board space and allowing for close stacking between components and boards.

  • Icon of a drawing compass representing design flexibility
    Design Flexibility
  • Icon of a shield representing durability
    Durability
  • Icon of a rotating gear representing process simplification
    Process Simplification
  • Icon of a vibration waves representing vibration tolerance
    Vibration Tolerance
  • 3D technical illustration with feature and benefit callouts of the Molded Assembly 2M Series
  • Features and benefits of 3M™ Molded Assembly 2M Series

    Molded cable/connector assemblies feature durable flat cables for long-term performance in some of the toughest environments. Cable is concealed inside the connector body, greatly reducing the possibility of dirt and moisture entering through the connector while virtually eliminating the need for cable house assembly and parts management. The insulation material on the 3M assembly 2M series completely encases the gas-tight insulation displacement area and is thermally fused to the connector body, providing exceptional strain relief against pulls and other exterior forces. Cables can be specified with molded-in strain relief at points along the cable as well.

    A. Gas-tight IDC area is encased in insulation

    B. Cable and connector are thermally fused for exceptional strain relief

    C. Individual contacts are isolated with thermoplastic cell walls

    D. Recesses accommodate adjacent posts in continuous rows

    The right cable/connector assembly for your application

    3M Molded Assembly 2M Series connectors can be fully customized to meet exact specifications. One-piece molded assemblies can be specified with a range of 3M cables as well as DIP and PCB connectors. Sockets mate with industry standard 2 mm x 2 mm headers and plugs, with an optional ear latching mechanism for mating to latch/eject headers. A center bump is available on sockets for polarized connections.  Cable assemblies use round conductor flat ribbon cable on industry standard .050” (1.27 mm) or 1 mm pitch.

Recommended application icon of a wire inserting into a board mount connector representing wire-to-board connecting

Typical properties

Resources

Email Us

  • All fields are required unless indicated optional

  • 3M takes your privacy seriously. 3M and its authorized third parties will use the information you provided in accordance with our Privacy Policy to send you communications which may include promotions, product information and service offers. Please be aware that this information may be stored on a server located in the U.S. If you do not consent to this use of your personal information, please do not use this system.

  • Submit
Thank you for requesting a demo! Logo

Thank you!

Your form was submitted successfully

Sorry Logo

Our apologies...

An error has occurred while submitting. Please try again later...

Related Products

Application Wire-to-board Connecting
Connector Style (End A) Plug, Receptacle
Connector Style (End B) Plug, Receptacle
Connector Type (End A) PCB, Socket
Connector Type (End B) PCB, Socket
Factory ISO Certification No ISO Certification information available
Number of Conductors 6 , 8 , 10 , 16 , 20 , 26 , 30 , 34 , 40 , 44 , 50
Pitch (Imperial) 0.079 in
Pitch (Metric) 2 mm
Tech Sheet Number TS-2753
eClass 14 Classification Group 27460202
