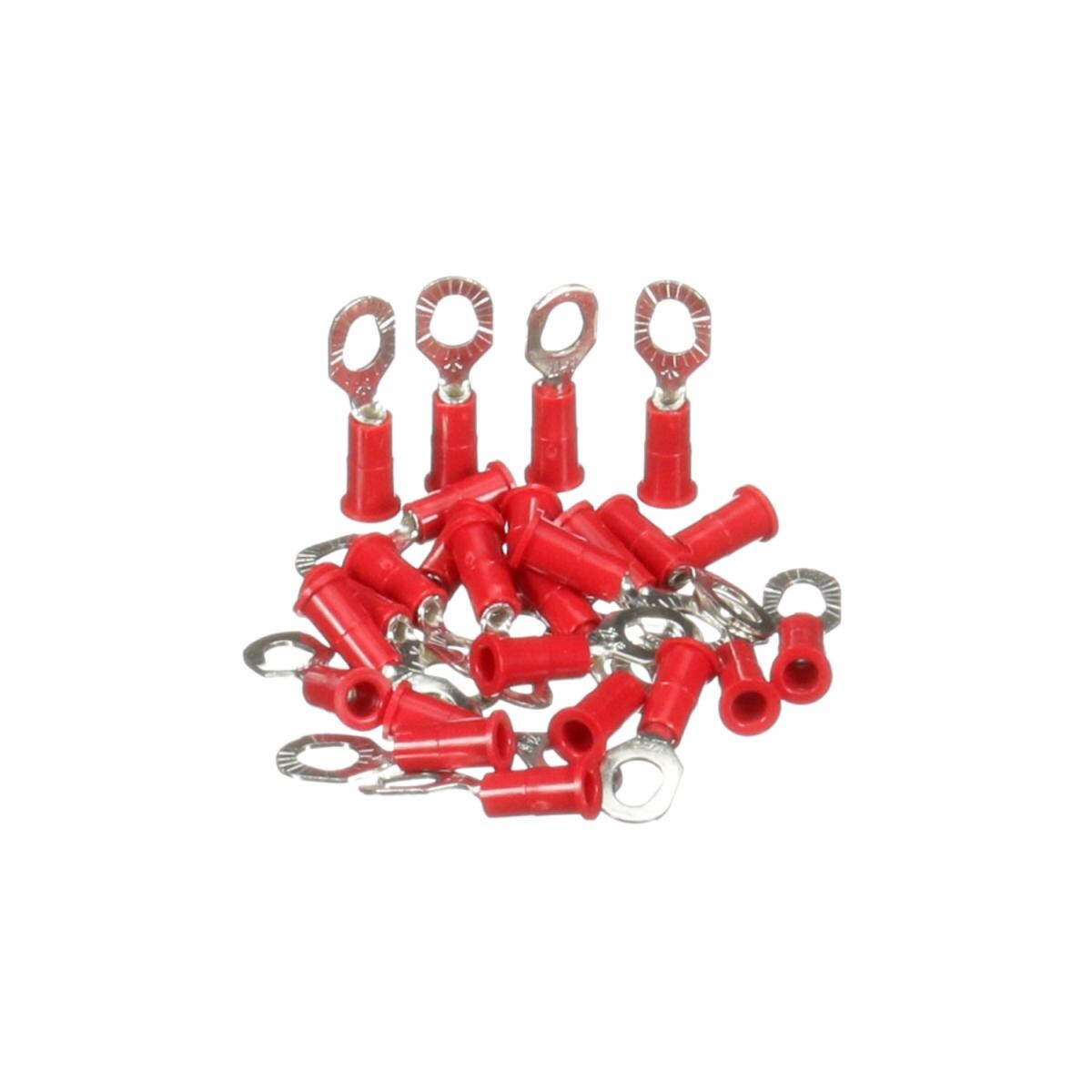

  6. 3M™ Scotchlok™ Vinyl Insulated Brazed Seam Multi-Stud Ring Tongues

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Multi-Stud Ring Tongues

Products
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Multi-stud style ring tongue fits around multiple stud sizes
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
 More...
View all details
For industrial/occupational use only. Not for consumer sale or use.
Overall Length (Imperial)
Overall_Length_Imperial
Overall Width (Imperial)
Overall_Width_Imperial
Products Available
Available options:
 Overall Length (Imperial) and Overall Width (Imperial)
All Options
Close
Specifications
Attribute Name
Value
Brand
Scotchlok™
Color Family
Blue, Yellow
Insulation Material
Vinyl
Maximum Conductor Size (Imperial)
10 AWG, 14 AWG, 18 AWG
Maximum Operating Temperature (Celsius)
105 Degree Celsius
Minimum Conductor Size (Imperial)
12 AWG, 16 AWG, 22 AWG
Overall Length (Imperial)
1.01 in, 1.19 in
Overall Length (Metric)
25.65 mm
Overall Width (Imperial)
0.34 in, 0.39 in
Overall Width (Metric)
8.63 mm
Product Color
Blue, Yellow
Terminal Type
Ring
Details
  • Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Multi-stud style ring tongue fits around multiple stud sizes
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

3M™ Scotchlok™ Vinyl Insulated Brazed Seam Multi-Stud Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

The ring tongue is the standard style of tongue. It is the safest and most reliable, since it cannot be removed unless mounting screw is removed.
