Attribute Name
|
Value
|
---|---|
Barrel Length (Imperial)
|
0.25 Inch
|
Barrel Style
|
Butted
|
Body Material
|
Copper Alloy, Stainless Steel
|
Brand
|
3M™, Scotchlok™
|
Connector Type
|
Butt
|
Insulation Material
|
Non-insulated, Nylon, Vinyl
|
Maximum Conductor Size (Imperial)
|
10 AWG, 12 AWG, 14 AWG, 18 AWG
|
Maximum Conductor Size (Metric)
|
1 mm², 2.5 mm², 4 mm², 6 mm²
|
Minimum Conductor Size (Imperial)
|
10 AWG, 12 AWG, 16 AWG, 22 AWG
|
Minimum Conductor Size (Metric)
|
.34 mm², 1.5 mm², 4 mm², 6 mm²
|
Overall Length (Imperial)
|
0.056 in, 0.56 in
|
Packaging
|
500 per bulk box
|
RoHS 2011/65/EU Compliant
|
Yes
|
RoHS EU Comments
|
RoHS 2011/65/EU compliant without exemption
|
Solution for
|
Wireless Network: Infrastructure Accessories
|
Terminal Style
|
High Temp
|
Units per Case
|
500
|
This terminal has a wire range of 16-14 AWG and case quantities of 500 per case.

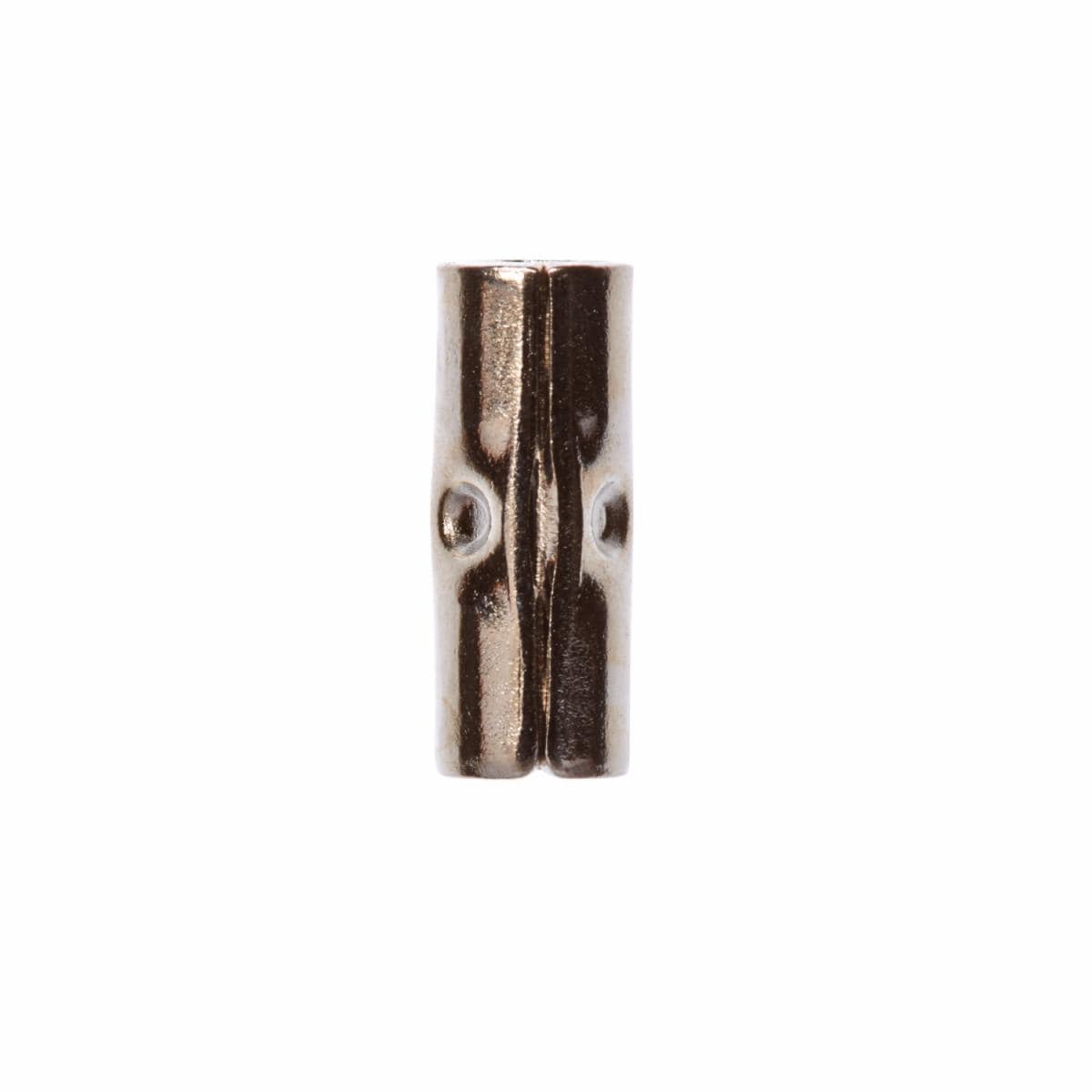

This butt connector uses chamfered barrel ends to provide fast easy wire insertion from both ends and a built in wire stop for correct positioning. It must be crimped at ends.
