- Mounts onto "3M™ Connector for CFast™ Card"
- Modular 'Snap on' design allows a shorter assembly time to the connector
- Use with connector for normal card polarization
- Meets the requirement of 10000 durability cycle as per CFA Standard.
Specifications
|
Attribute Name
|
Value
|
|---|---|
|
Brand
|
3M™
|
|
Card Type
|
Type I/II
|
|
Connector Style
|
Receptacle
|
|
Mounting Type
|
Boardmount
|
|
Tech Sheet Number
|
TS-2330
|
Details
- Mounts onto "3M™ Connector for CFast™ Card"
- Modular 'Snap on' design allows a shorter assembly time to the connector
- Use with connector for normal card polarization
- Meets the requirement of 10000 durability cycle as per CFA Standard.
- See Regulatory Information Appendix link for chemical compliance information
- For more information, refer to Data Sheet TS2330 (TS-2330)

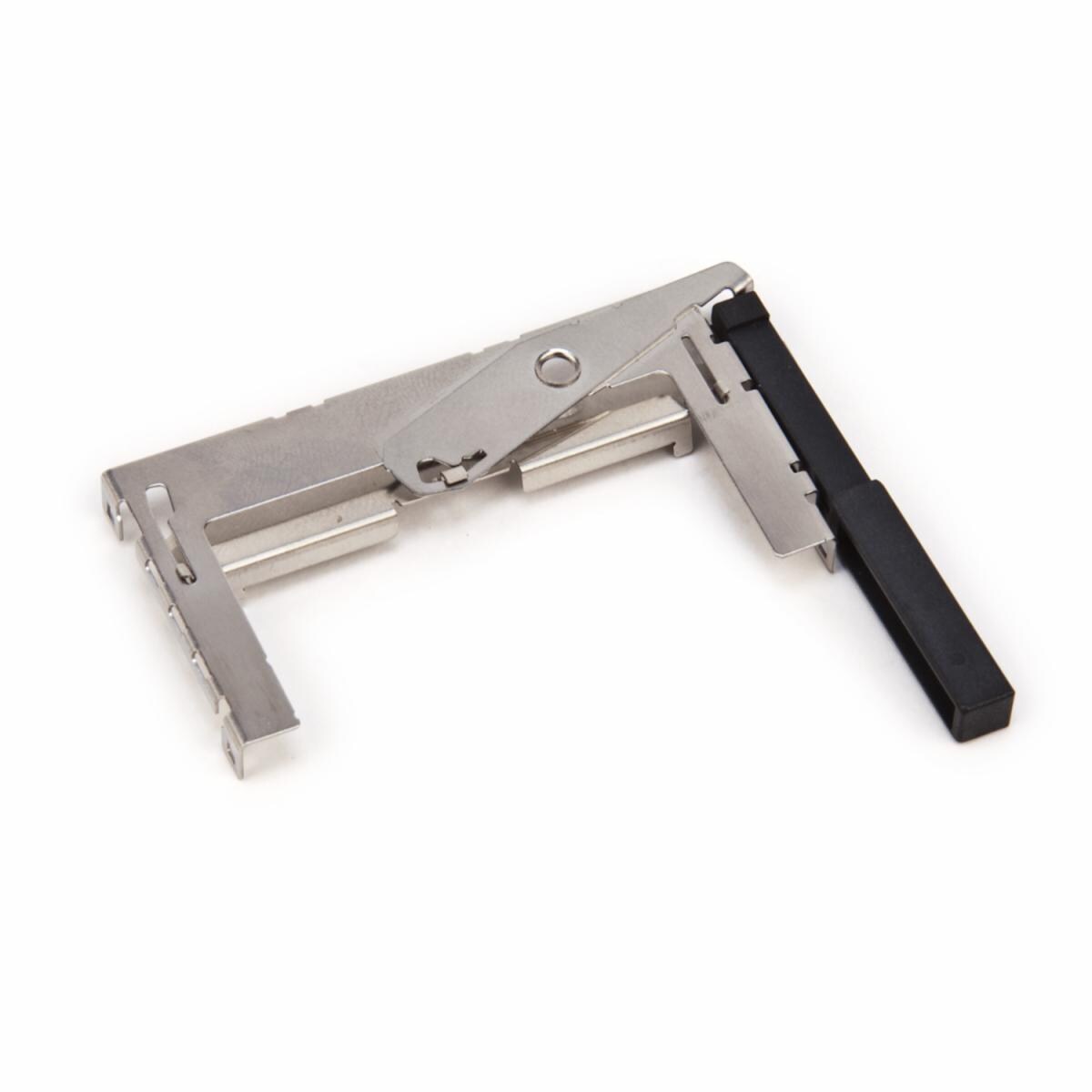

Accessory for 3M™ Connector for CFast Card
Resources
3D Models
- 7G24-B5A6-5, 3D Parasolid, rev. 01 (ZIP, 105.3KB)
- 7G24-B5A6-5, 3D IGES, rev. 01 (ZIP, 119.8KB)
- 7G24-B6A6-05, 3D IGES, rev. 01 (ZIP, 122.3KB)
- 7G24-B6A6-05, 3D Step, rev. 01 (ZIP, 94.2KB)
- N7G24-A0B2XX-10-3HT-igs, rev. 01 (ZIP, 443.6KB)
- N7G24-A0B2XX-10-3HT-x_t, rev. 01 (ZIP, 494.4KB)
- 7G24-B6A6-05, 3D Parasolid, rev. 01 (ZIP, 106.7KB)
- 7G24-B5A6-5, 3D Step, rev. 01 (ZIP, 90.6KB)
- N7G24-A0B2XX-10-3HT-stp, rev. 01 (ZIP, 197.4KB)
