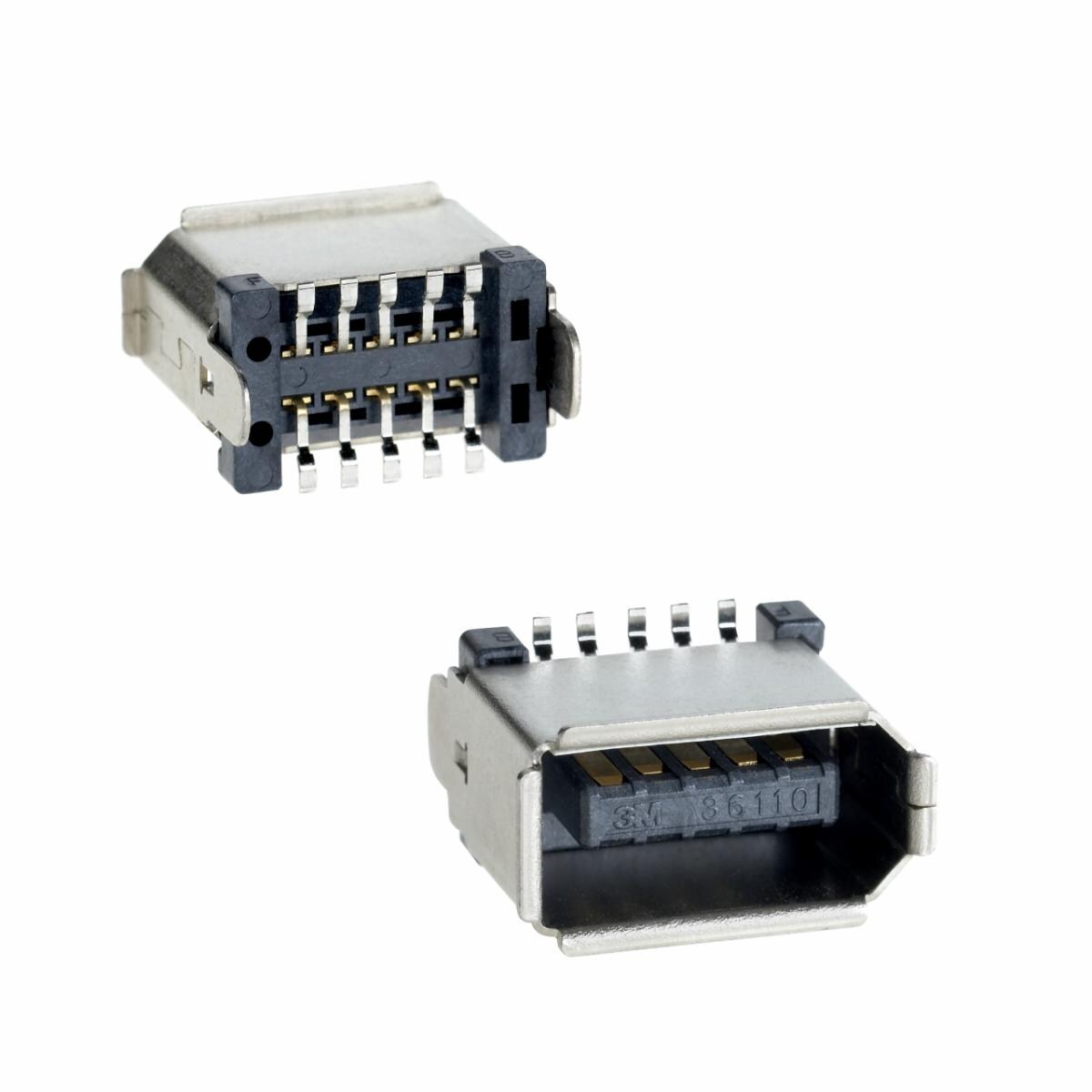

3M™ Shielded Compact Ribbon Connectors 36110-1110 PL, Silver, 100 ea/Case

  • 3M Product Number 361 Series
  • 3M ID 7000007590
  • UPC 04547452336326

Robust ribbon-style contact for reliable, repetitive plugging

Vertical orientation for design flexibility

Tabs on body provide lateral support to surface-mount solder joints and helps enable shield grounding

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 329KB)

spinner


Details

Highlights
  • Robust ribbon-style contact for reliable, repetitive plugging
  • Vertical orientation for design flexibility
  • Tabs on body provide lateral support to surface-mount solder joints and helps enable shield grounding
  • 360-degree shielding for excellent EMI protection
  • 10 contacts can carry signal or power (up to 1 amp per pin)
  • Polarized to provide proper cable insertion
  • Vibration resistant
  • Mates to 3M™ Shielded Compact Ribbon (SCR) Wiremount Receptacle

3M™ Shielded Compact Ribbon (SCR) Connectors 36110-1110PL provides 360-degree shielding for excellent EMI protection across various applications. It provides reliable and repetitive plugging and a vertical orientation for design flexibility. The robust ribbon-style contact delivers a secure and stable connection, while the tabs on the body provide lateral support to surface-mount solder joints and help enable shield grounding.

This pluggable connector assembly can carry signals or power up to 1 amp per pin, making it a versatile choice for different applications. 3M™ Shielded Compact Ribbon (SCR) Connectors 36110-1110PL is vibration resistant and polarized to ensure proper cable insertion. Mate it with a 3M™ Shielded Compact Ribbon (SCR) Wiremount Receptacle.
