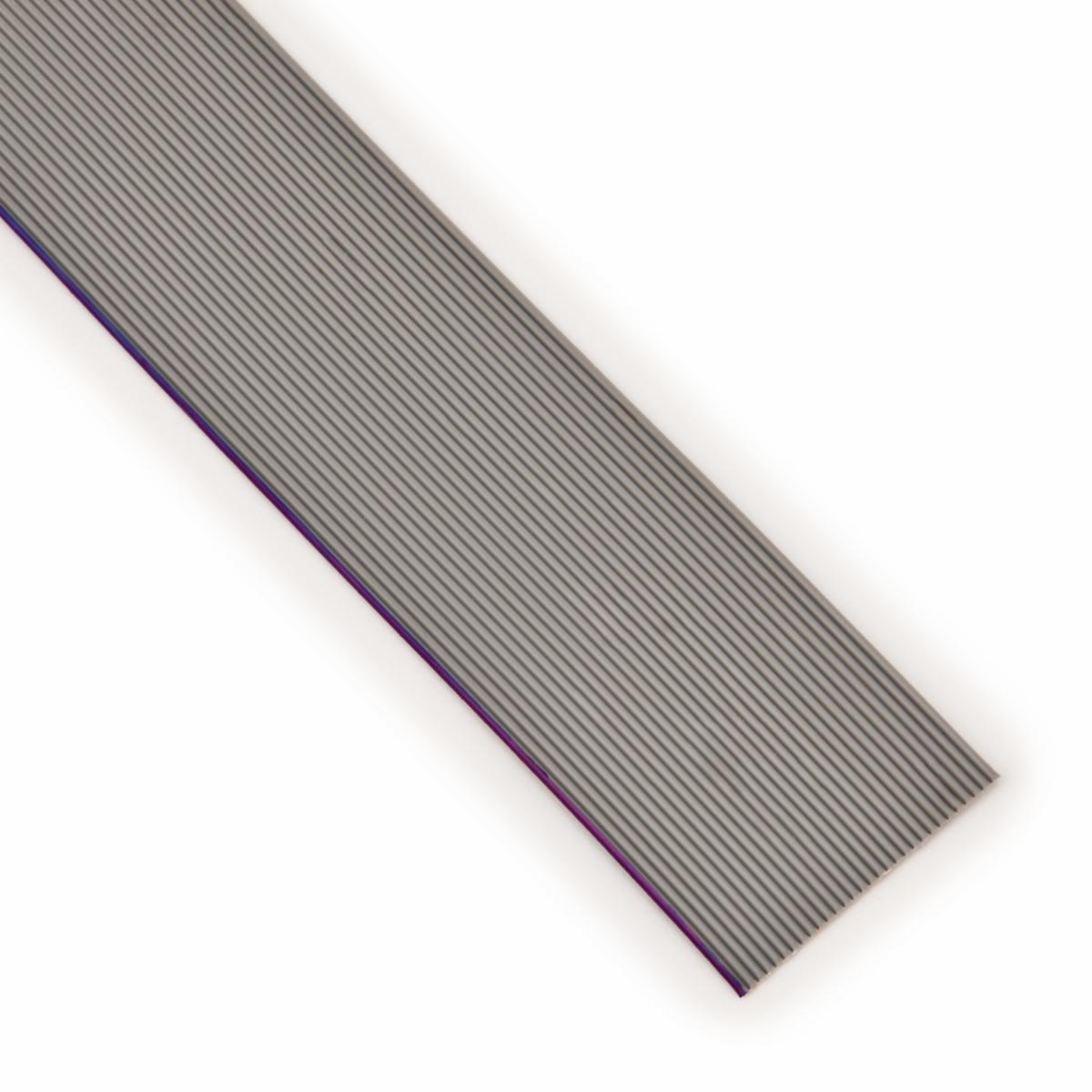

3M™ Round Conductor Flat Cable, HF625 Series

Part Number HF625/10
3M ID B00039572
UPC 50051111963956,00051111964231,50051111964403,50051111964205,00051111964392,50051111964328,51111963890,50051111964410,00051111963975,50051111964335,50051111963840,50051111964137,30051111964447,00051111964422,00051111964026,00051111964224,51111963975,50051111964052,50051111964250,00051111963937,00051111964309,51111963937,00051111963890,00051111964187,00051111964385,50051111964458,50051111963963,50051111963970,00051111964415,50051111963895,50051111964021,00051111964453,00051111964057,00051111964255,50051111964182,50051111964380,00051111963968,00051111963845,00051111964330,00051111964132,51111964040,50051111964304,50051111963932,50051111964427,50051111964229,50051111964113,50051111964311,51111964200,50051111964236,50051111964434,51111964125,51111964323,00051111963951,50051111964076,50051111964472,00051111964125,00051111964323,50051111964397,00051111964200,51111964408,00051111964408,00051111963999,50051111963901,50051111964359,00051111964040,51111964330,51111964132,51111964453,00051111964118,51111964057,00051111964316,51111964255,50051111963994,50051111964120,00051111964477,50051111964045,50051111964441,00051111964354,51111964415,00051111963906,51111963845,51111963968,00051111964439

Low Smoke Zero Halogen (LSZH). Insulation Advantages of LSZH insulation are the low smoke (IEC 61034-2:2005), and low toxicity of combustion gases (NF X 70-100-2:2006), reducing the risk to firefighters, and reducing the soot and corrosion damage to nearby equipment

Broad operating temperature range from -40°C to 105°C

28 AWG stranded conductors on 1mm pitch permits mass terminations to a broad line of metric IDC connectors

View more details

Frequently viewed resources

Tech Data Sheet (PDF, 854KB)

Typical properties

Details

Highlights

Low Smoke Zero Halogen (LSZH). Insulation Advantages of LSZH insulation are the low smoke (IEC 61034-2:2005), and low toxicity of combustion gases (NF X 70-100-2:2006), reducing the risk to firefighters, and reducing the soot and corrosion damage to nearby equipment
Broad operating temperature range from -40°C to 105°C
28 AWG stranded conductors on 1mm pitch permits mass terminations to a broad line of metric IDC connectors
Zippable for branching or discrete terminations
See Regulatory Information Appendix link for chemical compliance information
For more information, refer to Data Sheet TS2338 (TS-2338)

1 mm 28 AWG Stranded, Halogen Free PO
