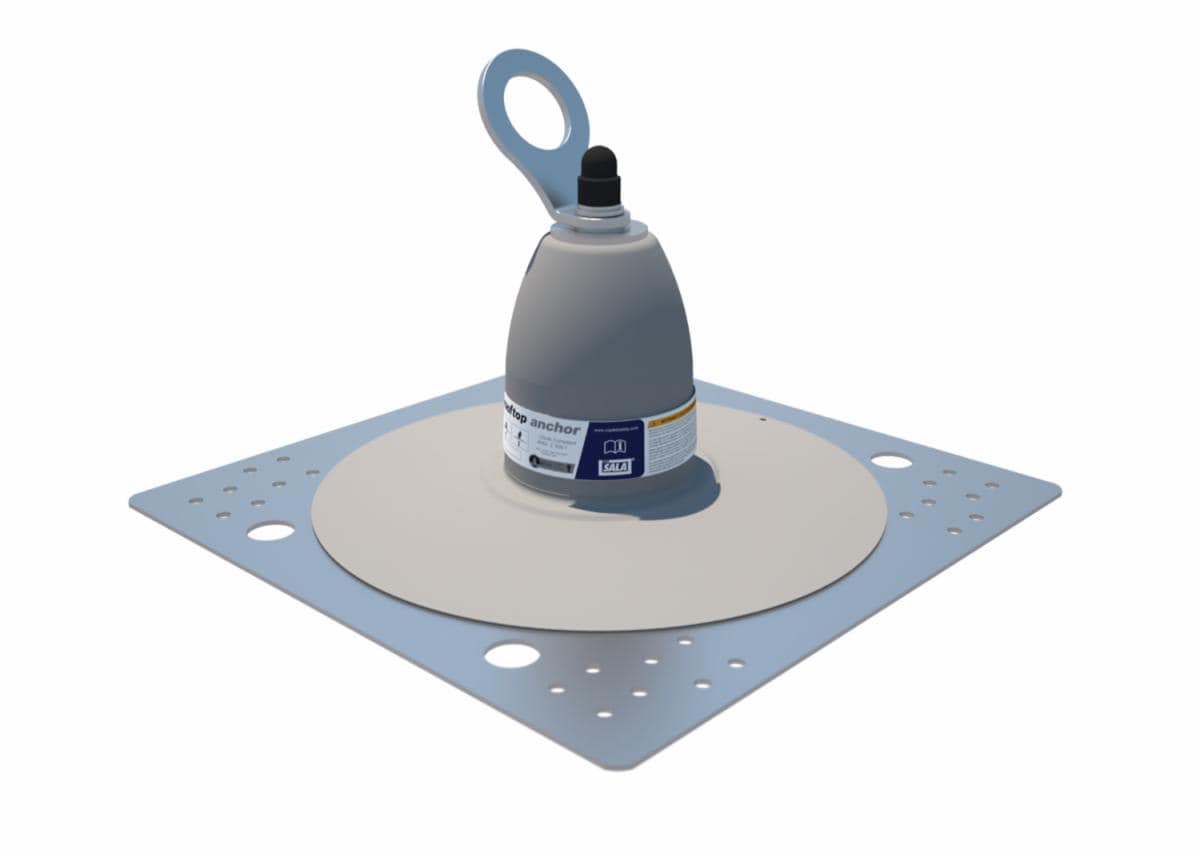

3M™ DBI-SALA® Roof Top Anchor 2100140

  • Part Number 2100140
  • 3M Product Number 2100140
  • 3M ID 70007440491
  • UPC 00840779013371,008407790133

Installs to single ply PVC membrane and built-up type roofs

Swiveling tie-off point for complete mobility

Compatible with various fall arrest connecting systems

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 577KB)

Specifications

Details

Highlights
  • Installs to single ply PVC membrane and built-up type roofs
  • Swiveling tie-off point for complete mobility
  • Compatible with various fall arrest connecting systems
  • Multi-person use with horizontal lifeline system
  • For use on flat or sloped (up to 3:12 pitch)
  • Fastens through membrane, insulation and into metal, wood or concrete
  • Multiple fastener options available
  • Exclusive design offers fast installation
  • Complete with shroud for PVC roofs offering maximum weather proofing
  • Aesthetic design compliments the roof
  • Thermal efficient design and construction
  • Load distributing design protects roof and user

Roof top anchor for PVC membrane and built-up roofs, with weather proofing shroud.

Our anchorage connectors are built from top quality materials guaranteeing high strength and durability to stand up to the toughest environments. Anchorage connectors are the unsung heroes of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage. Your choice of anchor depends on the type of work being done. Anchorages are sold by what they connect to (general/all purpose, steel, concrete, roof or specialty), whether they are fixed or mobile, and whether they are permanent or portable. They all must provide a secure point of attachment for a complete personal fall arrest system, and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2 to 1 safety factor.

Reviews

Related products

Anchor Install Type Permanent
Attachment Type Toggle Bolt
Brands DBI-SALA®
Case Quantity 1
Connected Safety ID Equipped No
Dimensions 16.00x16.00x9.00in
For Use With PVC Roofs
Install Type Permanent
Material Zinc Plated Steel
Product Color Silver
Product Type Roof Top Anchor - For PVC Roofs
Recommended Industry General Industrial, Construction, Mining, Oil & Gas
Specifications Met OSHA 1910.140, OSHA 1926.502
Weight (Imperial) 11.5 lb.
Weight Capacity 310 lbs. (141 kg)
Weight Capacity (Imperial) 310 lb.
Weight Capacity (Metric) 141 kg
