- Up to 5 Gbps data rates
- Low crosstalk at high frequencies
- 50/100 Ohm (single-ended /differential) impedance
- Modular/scalable format IEC 61076-4-101
Specifications
|
Attribute Name
|
Value
|
|---|---|
|
Brand
|
3M™
|
|
Contact Base Material
|
Copper Alloy
|
|
Durability
|
250 cycles with TR40B plating
|
|
Flammability
|
UL 94V-0
|
|
Insulation Material
|
High Temperature Thermoplastic (LCP)
|
|
Tech Sheet Number
|
TS-2633
|
|
Temperature Rating
|
-55 (Deg) C to +125 (Deg) C
|
|
Withstanding Voltage
|
750 Vrms
|
Details
- Up to 5 Gbps data rates
- Low crosstalk at high frequencies
- 50/100 Ohm (single-ended /differential) impedance
- Modular/scalable format IEC 61076-4-101
- 63 mated lines per linear inch
- End-to-end stackable with 5 row 3M™ CP2, HM and HSHM Headers
- For more information refer to Customer Drawing 78-5100-2633-5

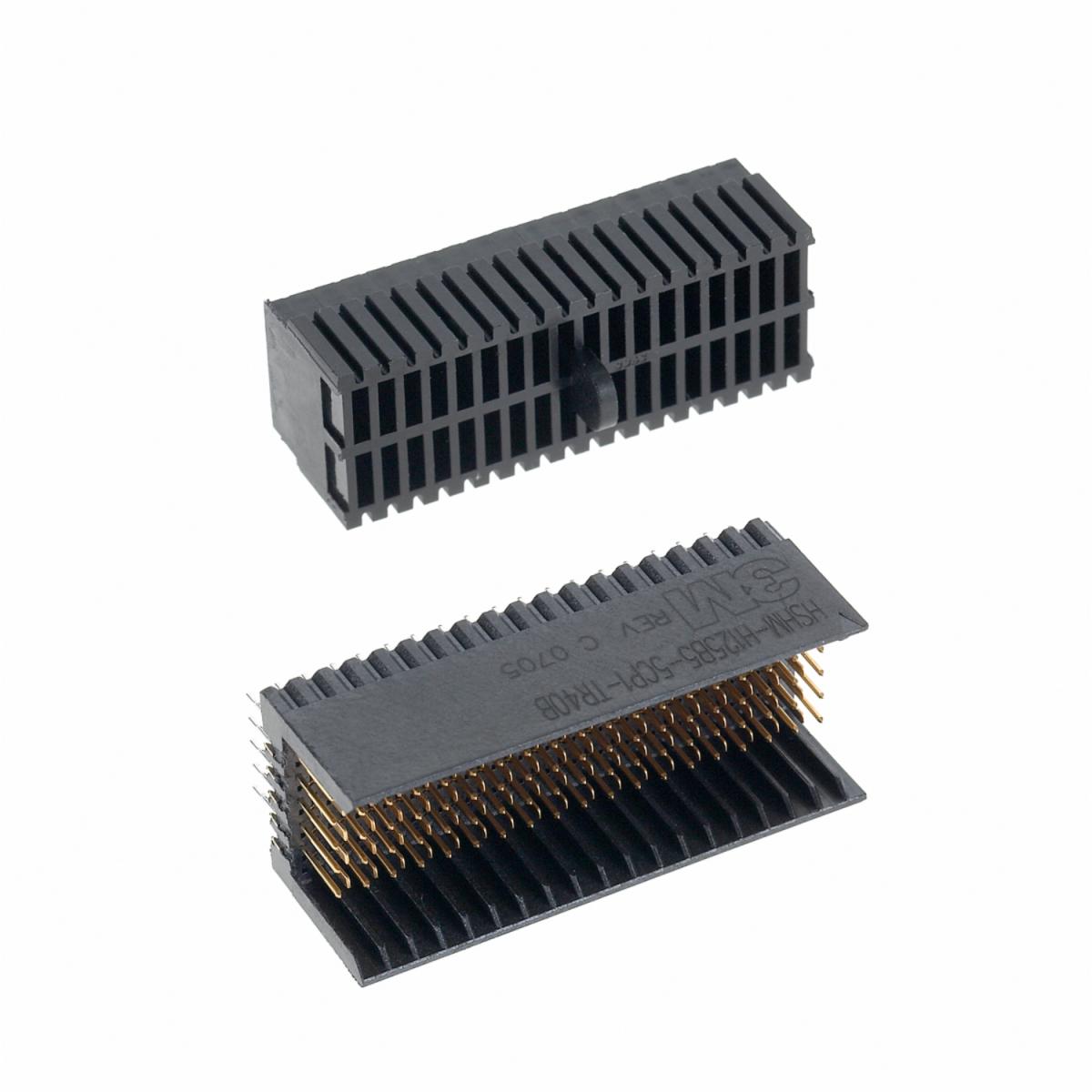

For high-speed hard metric applications
Resources
3D Models
- HSHM-H095B4-5CPX-XXXX, 3D Parasolid, rev. A (ZIP, 507.6KB)
- HSHM-H055CL4-5CPX, 3D Parasolid, Rev. 01 (ZIP, 356.5KB)
- HSHM-H095B4-5CPX-XXXX, 3D Step, rev. A (ZIP, 295.6KB)
- HSHM-H095B4-5CPX-XXXX, 3D IGES, rev. A (ZIP, 641.5KB)
- HSHM-H055CL4-5CPX, 3D IGES, Rev. 01 (ZIP, 345.5KB)
- HSHM-H095B4-5CPX-XXXX-Cap, 3D Parasolid, rev. A (ZIP, 127.3KB)
- HSHM-H095B4-5CPX-XXXX-Cap, 3D IGES, rev. A (ZIP, 240.6KB)
- HSHM-H055CL4-5CPX, 3D Step, Rev. 01 (ZIP, 229.7KB)
- HSHM-H095B4-5CPX-XXXX-Cap, 3D Step, rev. A (ZIP, 87.3KB)
