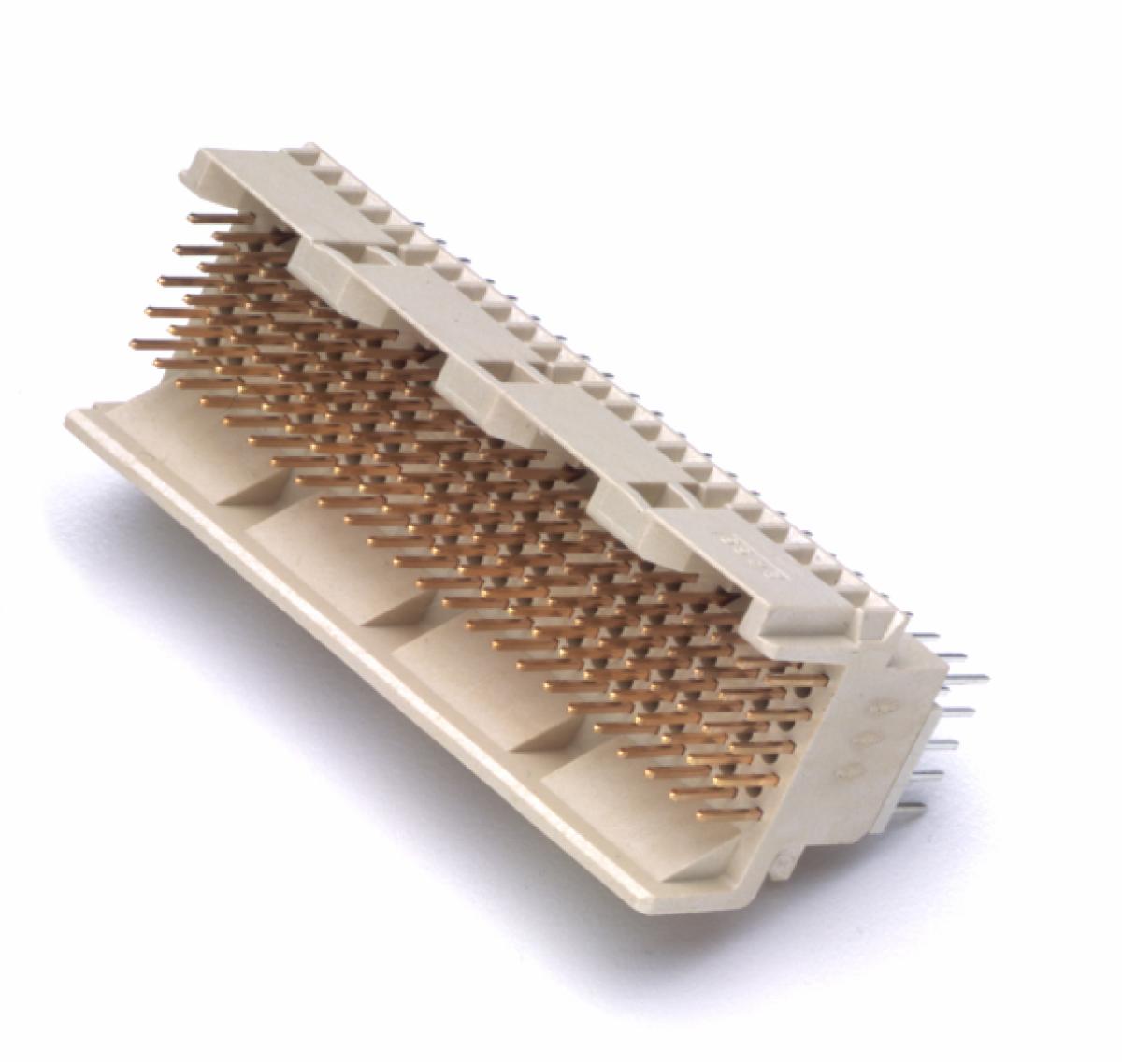

3M™ MetPak™ 2-FB Inverse Header, MP2 Series

16 mm to 18.5 mm high-profile stacking

Pin counts up to 300

Footprint compatible with standard Futurebus+®

16 mm to 18.5 mm high-profile stacking
Pin counts up to 300
Footprint compatible with standard Futurebus+®
Ideal for hot swapping applications
End-to-end stackable
Mates with MP2-R Series for parallel stacking applications
See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information
For more information, refer to Data Sheet TS1123 (TS-1123)

2 mm 5-Row, Stacking, Solder or Press-Fit Tail
