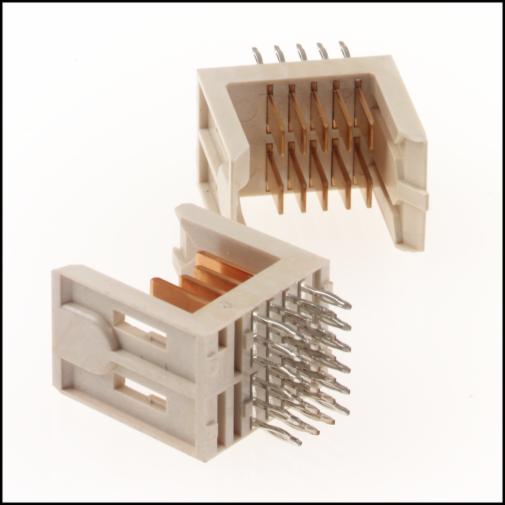

3M™ MetPak™ 2-FB Power Header, MP2 Series

  • 6.50 Amps per contact
  • Early mate late break (EMLB) for hot swap or selective loading options
  • End-to-end stackable
  • Optional feed-through tail (Press-Fit)
 More...
View all details
Find A Part
spinner
Specifications
Attribute Name
Value
Brand
MetPak™
Connector Style
Pin Header
Mounting Type
Boardmount
Number of Contact Rows
4, 5
Number of Contacts
10, 8
Pitch (Imperial)
0.079 in
Pitch (Metric)
2 mm
Tech Sheet Number
TS-1126
Withstanding Voltage
1,500 VAC for 60 seconds
Details
  • 6.50 Amps per contact
  • Early mate late break (EMLB) for hot swap or selective loading options
  • End-to-end stackable
  • Optional feed-through tail (Press-Fit)
  • Futurebus+® compatible
  • See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information
  • For more information, refer to Data Sheet TS1126 (TS-1126)

2 mm 4/5-Row, Vertical, Press-Fit Tail
