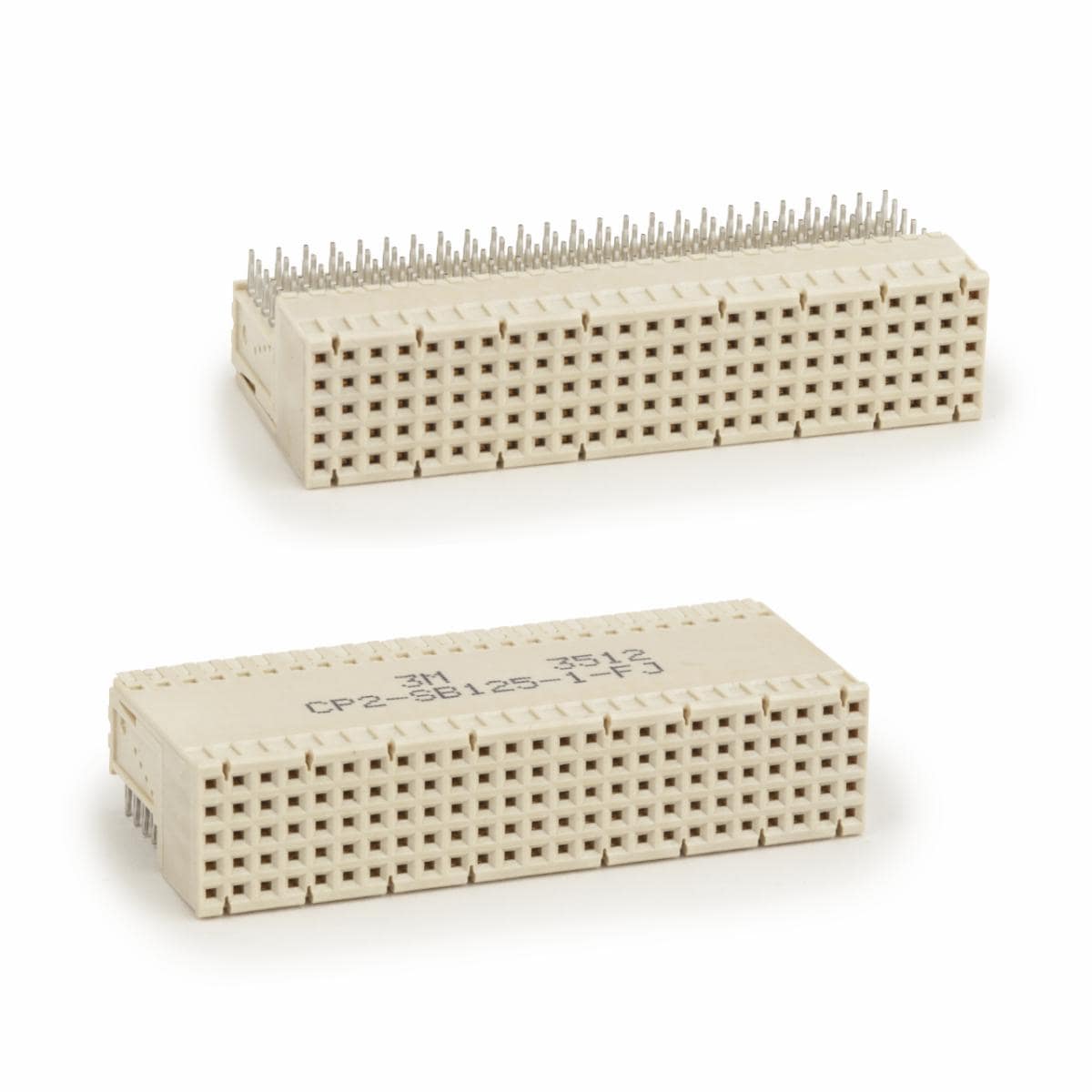

3M™ CP2 Press-Fit Socket CP2 Series

3M ID B00036504

25 mm basic system unit

50 mm module

Designed according to IEC 61076-4-101 and IEC 60352-5 Standards

Frequently viewed resources

Details

Highlights

25 mm basic system unit
50 mm module
Designed according to IEC 61076-4-101 and IEC 60352-5 Standards
2 mm grid spacing allows for high signal density at low cost
“Eye of the Needle” compliant pin press-fit design helps reduce manufacturing time and cost
Additional grounding row available for improved ground bounce and EMI immunity
Mates with 5 row 3M™ MetPak™ HM, and CP2 headers
End-to-end stackable with 5 row 3M™ MetPak™ HSHM, UHM, HM, and CP2 sockets
See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information
For more Information refer to Data Sheet TS2268 (TS-2268)

3M™ CP2 Press-Fit Socket, CP2 Series Mates with 5 row 3M™ HM, and CP2 Headers. Additional grounding row available for improved ground bounce and EMI immunity. 2 mm grid spacing allows for high signal density at low cost.
