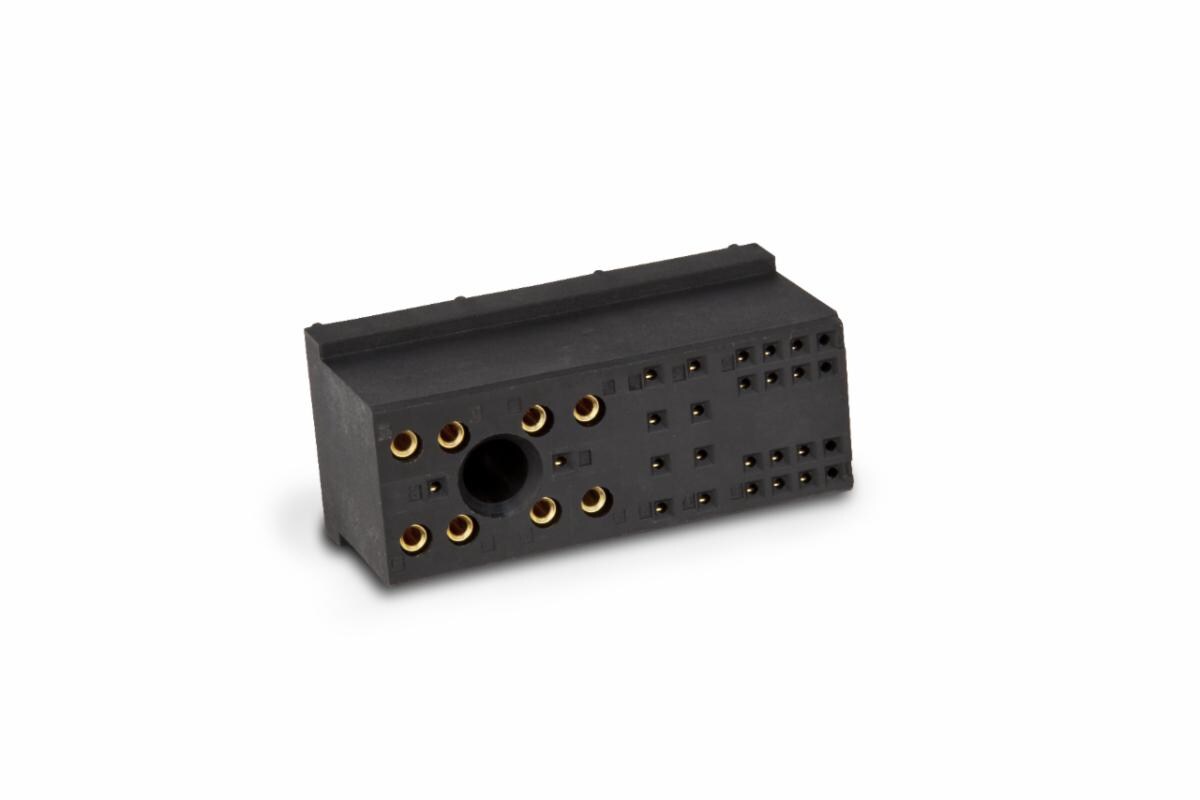

3M™ Power Backplane Female Connector for ATCA™ Application

  • 3M ID B00036407

ATCA™ Zone 1 power connector

Backplane right angle header

Daughtercard vertical socket

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 172KB)

spinner


Details

Highlights
  • ATCA™ Zone 1 power connector
  • Backplane right angle header
  • Daughtercard vertical socket
  • Compliant to PICMG 3.0 R2.0 (AdvancedTCA™) specification
  • High conductivity, precision formed contacts
  • Selective plating in compliance with RoHS requirements
  • Precision formed compliant pin offers excellent retention to ensure a reliable connection
  • ATCA and AdvancedTCA are trademarks of PICMG-PCI Industrial Computer Manufacturers Group, Inc
  • See Regulatory Information Appendix link for chemical compliance information
  • For more information, refer to Customer Drawing 78-5100-2378-7

Power, Female, Straight
