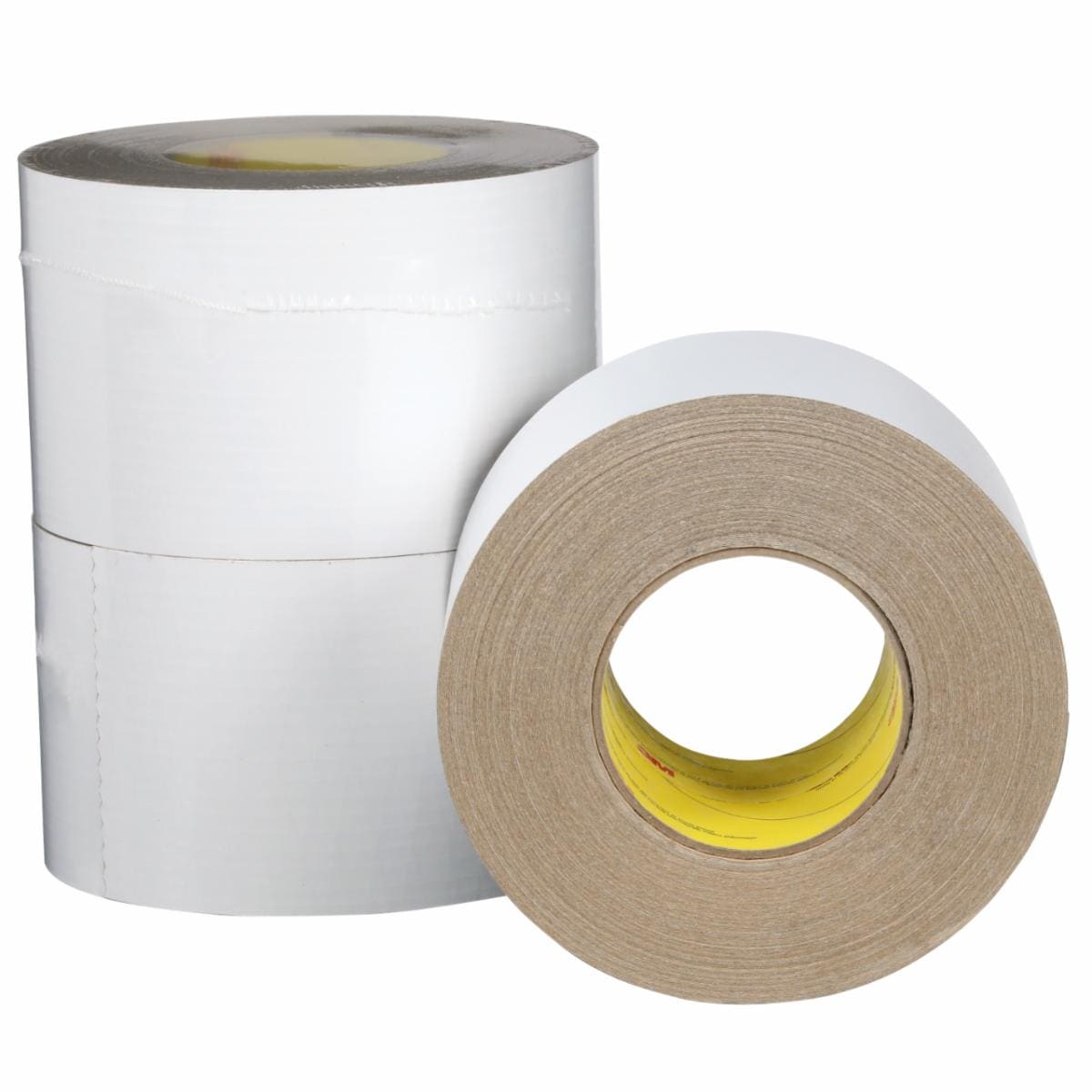

3M™ Venture Tape™ Film Faced ASJ Buttstrip Tape 106FXP

3M Product Number 106FXP
Products
  • Tough, flexible vapor seal on ductboard and pipe insulation butt joints
  • Polypropylene film facing adds durability in a range of temps and environments
  • Conforms well to curved or irregular surfaces
  • Cold weather acrylic adhesive is formulated for polypropylene surfaces
 More...
View all details
For industrial/occupational use only. Not for consumer sale or use.
Overall Width (Imperial)
Overall_Width_Imperial
Overall Width (Metric)
Overall_Width_Metric
Products Available
Available options:
 Overall Width (Imperial) and Overall Width (Metric)
All Options
  • Product Form
    Overall Length (Imperial)
    Overall Length (Metric)
    Overall Width (Imperial)
    Overall Width (Metric)
    Product Color
  • 3M™ Venture Tape™ Film Faced ASJ Tape 106FXP, White, 99 mm x 45.7 m, 12 rolls per case
    Product Form
    Roll
    Overall Length (Imperial)
    50 yd
    Overall Length (Metric)
    45.7 m
    Overall Width (Imperial)
    3.89 in
    Overall Width (Metric)
    98.806 mm
    Product Color
    White
  • 3M™ Venture Tape™ Film Faced ASJ Tape 106FXP, White, 72 mm x 45.7 m, 16 rolls per case
    Product Form
    Roll
    Overall Length (Imperial)
    50 yd
    Overall Length (Metric)
    45.7 m
    Overall Width (Imperial)
    2.83 in
    Overall Width (Metric)
    71.882 mm
    Product Color
    White
Close
Specifications
Attribute Name
Value
Adhesive Type
Acrylic
Brand
Venture Tape™
Color Family
White
Elongation at Break
3
Overall Length (Imperial)
50 yd
Overall Length (Metric)
45.7 m
Overall Width (Imperial)
2.83 in, 3.89 in
Overall Width (Metric)
71.882 mm, 98.806 mm
Product Color
White
Product Form
Roll
Tensile Strength (Imperial)
70 lb/in
Tensile Strength (Metric)
123 N/100mm
Volatile Organic Compounds (VOCs)
See Safety Data Sheet, Regulatory Data Sheet
Details
  • Tough, flexible vapor seal on ductboard and pipe insulation butt joints
  • Polypropylene film facing adds durability in a range of temps and environments
  • Conforms well to curved or irregular surfaces
  • Cold weather acrylic adhesive is formulated for polypropylene surfaces
  • Easy to install on site without special tools or application methods
  • Meets ASTM C1136, Type I, II, III, IV

3M™ Venture Tape™ Film Faced ASJ Tape 106FXP is a flexible, next generation white polypropylene/core/scrim/foil laminate facing coated with one of our 3M™ proprietary adhesives specifically formulated to adhere to polypropylene facings in both cold and hot humid temperatures. This adhesive also contains mold inhibiting agents to help prevent corrosion under the insulation.

Tough and Flexible for Duct Piping Butt Joints
3M™ Venture Tape™ Film Faced ASJ Tape 106FXP matches next generation insulation facings. It is a tri-directional reinforced tape that excels in demanding temperature and humidity applications. It is comprised of a tough white polypropylene film facing in a core/scrim/foil laminated backing coated with a cold weather acrylic adhesive. The facing is flexible and conforms to irregular surfaces and curves, excellent for butt joints. The aggressive pressure sensitive acrylic adhesive is formulated for polypropylene, and contains mold inhibiting agents to prevent mold build-up in humid and damp conditions. With excellent resistance to weathering, mold, UV and environmental conditions, this ASJ tape performs well in extremely cold and hot temperature applications.

Recommended Applications

  • All service jacket (ASJ) closure system on next generation duct piping butt joints
  • Butt joint vapor seal on ductboard and pipe insulation
  • Cold weather
  • Hot and humid conditions

Cold Weather Performance
3M™ Venture Tape™ Film Faced ASJ Tape 106FXP is coated with a proprietary, pressure sensitive, cold weather, solvent acrylic adhesive. This adhesive has been specifically designed for cold weather applications, though it performs well at normal and high temperatures as well. It delivers a quick stick at normal temperatures. With a service temperature ranging from -40°F/-40°C to 150°F/66°C, this tape can be applied in a variety of environmental conditions. It provides good holding power for extended periods with good aging properties that resist lifting and curling.

The Science of Better Adhesion from 3M
Since 1925 when one of our lab assistants invented masking tape, 3M has been applying science to life – developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each of our industrial tapes and adhesives, like 3M™ Venture Tape™ Film Faced ASJ Tape 106FXP, to help businesses like yours operate faster, better and more efficiently.
