3M™ Scotchkote™ Liquid Epoxy Coating 323+

  • Advanced Adhesion
  • Increased Flexibility
  • Strong Impact Resistance
  • Volume Mix Ratio 2A:1B
 More...
View all details
For industrial/occupational use only. Not for consumer sale or use.
All Options
Close
Typical Properties
Attribute Name
Value
Brand
Scotchkote™
Container Size (Imperial)
0.793 gal, 1.69 fl oz, 15.22 fl oz, 30.09 fl oz, 30.43 fl oz, 33.8 fl oz, 4.491 gal, 50 gal
Coverage Area
133.78 ft2
Dry to Touch Time at 75°F/25°C
180 min, 90 min
Flexibility @ 32°F/0°C
1.46°/PD
Flexibility @ 72°F/22°C
1.72°/PD
Package Configuration
1 Pail, 1A + 1B, 32 cartridges + 32 mix nozzles, 4 containers, 6 cartridges
Product Type
Activator, Activator & Base, Base, Base & Activator
Recommended Coating Thickness
25 - 60 mils, 25- 60 mils
Shelf Life
24 Month
Specific Gravity
1.36 mixed, 1.44 mixed
Viscosity in cps @20 rpm 77°F/25°C
16400, 24000, 27000, 8200, Part A: 27000 Part B: 8200
Details
  • Advanced Adhesion
  • Increased Flexibility
  • Strong Impact Resistance
  • Volume Mix Ratio 2A:1B
  • Formulated without nonylphenol
  • VOC free and REACH compliant
  • Meets global industry standards
  • Compatible with 3M™ Scotchkote™ Pipeline Coatings
  • Can be applied to a substrate as cold as 41°F/5°C
  • Resistant to damage from acids and bases in pH range 2 - 14

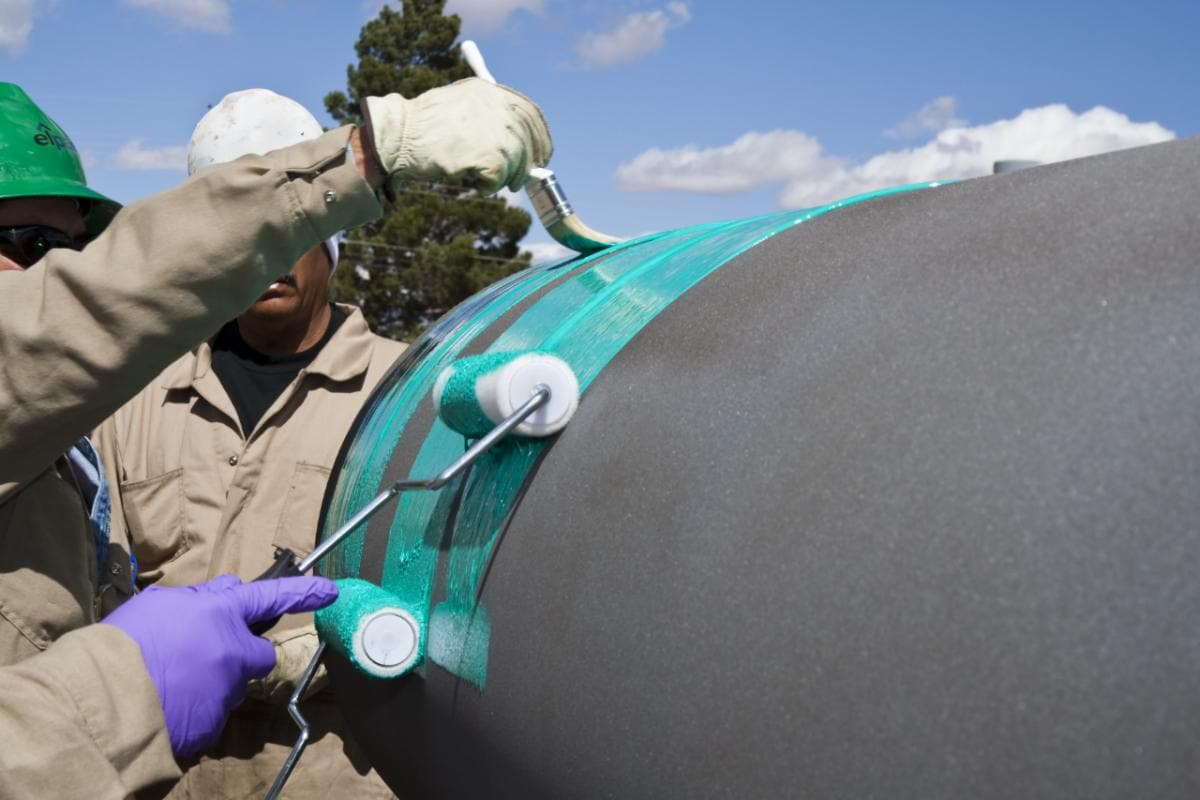

3M™ Scotchkote™ Liquid Epoxy Coating 323+ is the latest innovation in Liquid Epoxy Coatings from 3M. This two-part system features improved adhesion, flexibility and impact resistance to help prevent corrosion on steel pipes and other metal surfaces. Scotchkote 323+ DOES NOT CONTAIN NONYLPHENOL

For industrial/occupational use only. Not for consumer sale or use.

3M industrial and occupational products are intended, labeled, and packaged for sale to trained industrial and occupational customers for workplace use.  Unless specifically stated otherwise on the applicable product packaging or literature, these products are not intended, labeled, or packaged for sale to or use by consumers (e.g., for home, personal, primary or secondary school, recreational/sporting, or other uses not described in the applicable product packaging or literature), and must be selected and used in compliance with applicable health and safety regulations and standards (e.g., U.S. OSHA, ANSI), as well as all product literature, user instructions, warnings, and other limitations, and the user must take any action required under any recall, field action, or other product use notice.  Misuse of 3M industrial and occupational products may result in injury, sickness, death, or property damage.  For help with product selection and use, consult your on-site safety professional, industrial hygienist, or other subject matter expert.
