3M™ Ultra Hard Metric (UHM) Press-fit Socket Connectors, 5-Row, UHM-S110B3-5AP1-KR

  • 7+ Gbps data rates when mated to standard IEC 61076-4-101 headers
  • Low crosstalk at high frequencies.
  • 50/100 Ohm (single-ended/differential) impedance.
  • Modular/scalable format IEC 61076-4-101.
 More...
View all details
Product Details
  • 7+ Gbps data rates when mated to standard IEC 61076-4-101 headers
  • Low crosstalk at high frequencies.
  • 50/100 Ohm (single-ended/differential) impedance.
  • Modular/scalable format IEC 61076-4-101.
  • Press-fit headers and receptacles.
  • 63 mated lines per linear inch.
  • Dual beam contact construction for high-reliability.
  • End-to-end stackable with 5 row 3M™ CP2, HM, UHM and HSHM Sockets.
  • Mates with 3M™ CP2, HM, UHM, HSHM Headers, and cPCI™ type Headers.
  • See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information
  • For more information refer to Customer Drawing 78-5100-2533-7

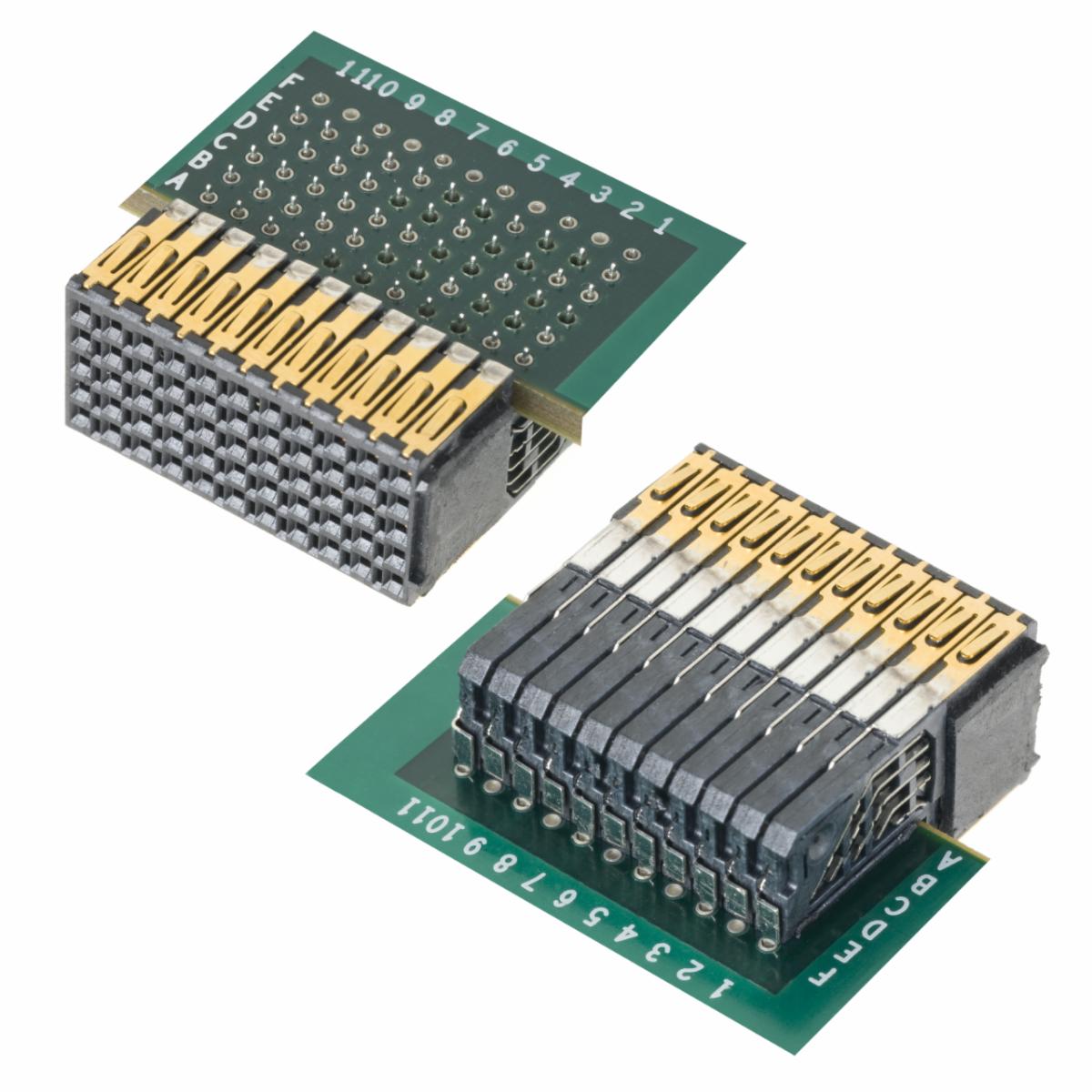

3M™ Ultra Hard Metric (UHM) Press-fit Socket Connectors

Specifications
Attribute Name
Value
Contact Material
Copper Alloy
Flammability
UL 94V-0
Insulation Material
High Temperature Thermoplastic (LCP)
Mounting Type
Boardmount
Tech Sheet Number
TS-2533
Temperature Rating
-55 Degree C to 125 Degree C
Withstanding Voltage
750 Vrms
