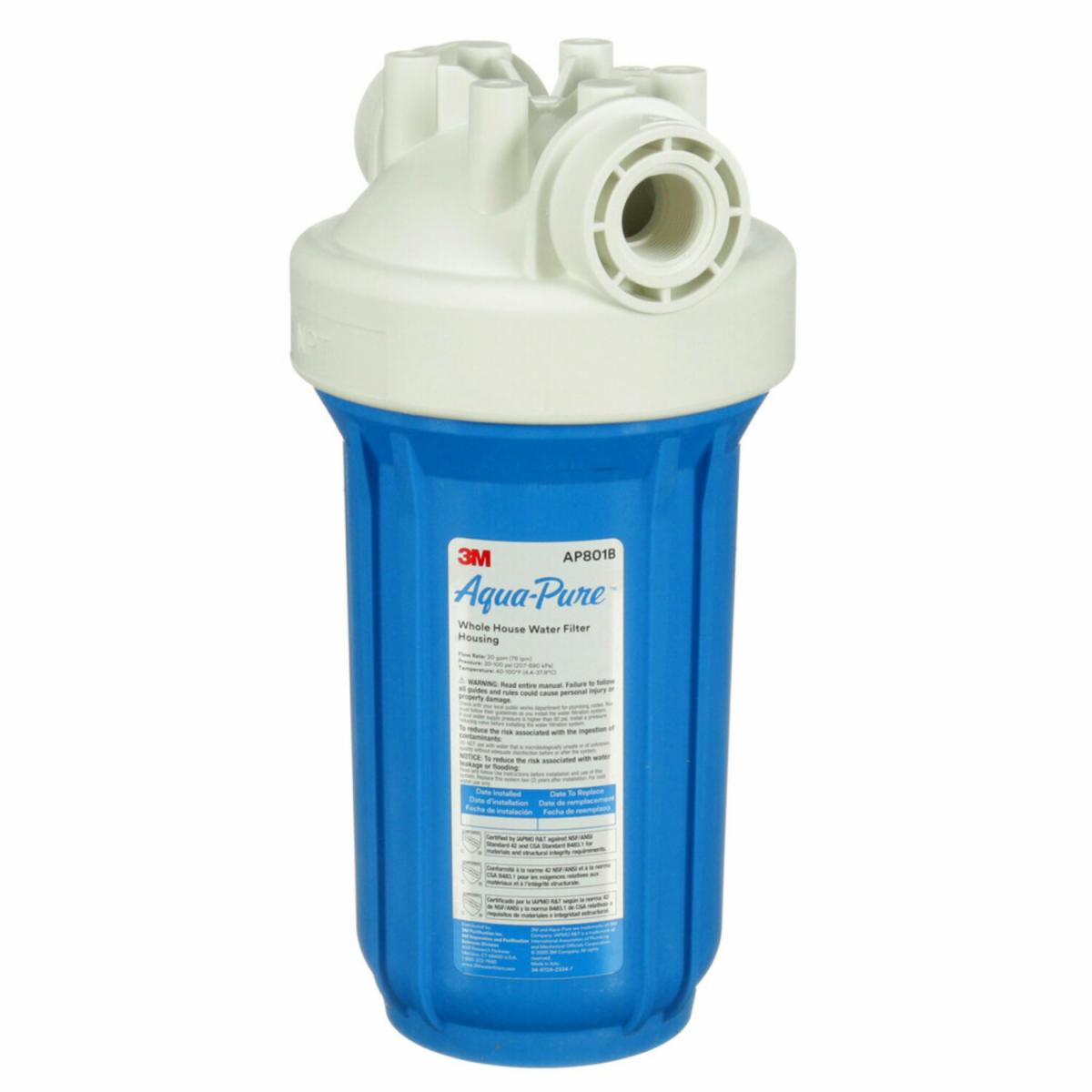

3M™ Aqua-Pure™ AP800 Series Whole House Filter Housing AP801B, 5639201, Large Diameter, Blue Sump, 10 in, 2/Case

Part Number 56392013M Product Number AP801B3M ID 70020351873UPC 00638060355312
  • Whole house water filter systems are great solutions to help protect your pipes and appliances as well as offer you great tasting drinking water from anywhere in the home.
  • Housings do not come with water filter cartridge. Drop-in cartridges sold separately. Flow rate and reduction claims vary with drop-in water filter cartridge used.
  • May use AP810, AP811, or AP817 drop-in cartridges in the AP800 series.
 More...
View all details
Specifications
Attribute Name
Value
Application
Whole House Water Filtration
Brand
Aqua-Pure™
Color Family
Blue
Flow Rate (Imperial)
20 GPM
Flow Rate (Metric)
75.7 Litre per minute
Industries
Home
Inlet Outlet Size
1" NPT
Maximum Operating Temperature (Celsius)
37.8 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
100 Degree Fahrenheit
Net Weight (Imperial)
5.5 lb
Net Weight (Metric)
2.5 kg
Overall Diameter (Imperial)
7.17 in
Overall Diameter (Metric)
18.2 cm
Overall Height (Imperial)
14.17 in
Overall Height (Metric)
36 cm
Overall Length (Imperial)
14.17 in
Overall Length (Metric)
36 cm
Pressure Range
30 -100 psi
Pressure Range (Metric)
207 - 690 kPa
Temperature Range (Celsius)
4.4 - 37.8°C
Temperature Range (Fahrenheit)
40 - 100°F
Units per Case
2
Product Details
  • Whole house water filter systems are great solutions to help protect your pipes and appliances as well as offer you great tasting drinking water from anywhere in the home.
  • Housings do not come with water filter cartridge. Drop-in cartridges sold separately. Flow rate and reduction claims vary with drop-in water filter cartridge used.
  • May use AP810, AP811, or AP817 drop-in cartridges in the AP800 series.

Housings do not come with water filter cartridge. Drop-in cartridges sold separately. Flow rate and reduction claims vary with drop-in water filter cartridge used.

The 3M™ Aqua-Pure™ Whole House Large Diameter Water Filter Housing includes 1” NPT inlet/outlet connections. The built-in pressure relief valve allows for convenient cartridge change-outs by depressurizing the housing, as well as eliminating air from the housing when cartridge change-out is complete. Accepts long-life AP810 and AP811 Series replacement cartridges for high filtration efficiency and sediment capacity and long-life granular activated carbon AP817 Series replacement cartidges for efficient reduction of chlorine taste and odor. Mounting bracket, screws, housing wrench and o-ring kit with lubricant included. Housing is certified by IAPMO R&T for material safety and structural integrity to NSF/ANSI standard 42 and CSA B483.1.
