3M™ Cold Shrink QT-II Outdoor Termination Kit 4605, LC Shielding, 46 kV

3M™ Cold Shrink QT-II Outdoor Termination Kit 4605, LC Shielding, 46 kV

Part Number 4605
3M ID 7000058252
UPC 00054007501930,50054007501935

For tape shield, wire shield and longitudinally corrugated power cables

High dielectric-constant material regulates the distribution of electric field stress

Suitable for outdoor, weather exposed applications

Frequently viewed resources

Voltage	46 kV
Conductor Sizes (Imperial)	1000 kcmil, 1500 kcmil, 800 kcmil, 700 kcmil, 1250 kcmil, 600 kcmil, 750 kcmil, 900 kcmil
Insulation Outer Diameter (Metric)	45.974 mm, 46.228 mm, 46.482 mm, 46.736 mm, 45.72 mm, 47.244 mm, 47.498 mm, 47.752 mm, 46.99 mm, 48.006 mm, 48.26 mm, 48.514 mm, 48.768 mm, 49.022 mm, 49.276 mm, 49.53 mm, 49.784 mm, 50.038 mm, 50.292 mm, 50.8 mm, 51.054 mm, 51.308 mm, 51.562 mm, 51.816 mm, 50.546 mm, 52.07 mm, 52.324 mm, 52.578 mm, 52.832 mm, 53.086 mm, 53.34 mm, 53.594 mm, 53.848 mm, 54.356 mm, 54.102 mm, 54.61 mm, 54.864 mm, 55.118 mm, 56.134 mm, 56.388 mm, 55.372 mm, 56.642 mm, 55.626 mm, 55.88 mm, 56.896 mm, 57.404 mm, 57.658 mm, 57.912 mm, 58.166 mm, 57.15 mm, 58.42 mm, 58.674 mm, 58.928 mm, 59.182 mm, 59.436 mm, 59.69 mm, 59.944 mm, 60.198 mm, 62.23 mm, 62.484 mm, 62.738 mm, 62.992 mm, 63.246 mm, 63.5 mm, 63.754 mm, 64.008 mm, 60.452 mm, 60.706 mm, 60.96 mm, 61.214 mm, 61.468 mm, 61.722 mm, 61.976 mm, 65.532 mm, 65.786 mm, 66.04 mm, 64.262 mm, 64.516 mm, 64.77 mm, 65.024 mm, 65.278 mm
Number of Conductors	1
Breakout Boot	No
Insulation Outer Diameter (Imperial)	1.81 in, 1.82 in, 1.84 in, 1.85 in, 1.83 in, 1.9 in, 1.99 in, 2.01 in, 2.02 in, 2.03 in, 2.04 in, 2.05 in, 2.06 in, 2.07 in, 1.87 in, 1.88 in, 1.89 in, 1.86 in, 1.94 in, 1.95 in, 1.96 in, 1.97 in, 1.93 in, 1.98 in, 1.8 in, 1.92 in, 1.91 in, 2.09 in, 2.08 in, 2.13 in, 2.11 in, 2.12 in, 2.14 in, 2.16 in, 2.19 in, 2.17 in, 2.1 in, 2.21 in, 2.18 in, 2.22 in, 2.23 in, 2.24 in, 2.15 in, 2.25 in, 2.26 in, 2.28 in, 2.29 in, 2.27 in, 2.2 in, 2.31 in, 2.32 in, 2.39 in, 2.3 in, 2.41 in, 2.42 in, 2.43 in, 2.33 in, 2.34 in, 2.35 in, 2.36 in, 2.37 in, 2.38 in, 2.44 in, 2.45 in, 2.46 in, 2.47 in, 2.48 in, 2.49 in, 2.4 in, 2.51 in, 2.52 in, 2.53 in, 2.54 in, 2.55 in, 2.56 in, 0.69 in, 2.59 in, 2.5 in, 2.6 in, 2 in, 2.57 in, 2.58 in

Where to Buy

Specifications

Details

Highlights

For tape shield, wire shield and longitudinally corrugated power cables
High dielectric-constant material regulates the distribution of electric field stress
Suitable for outdoor, weather exposed applications
Silicone rubber insulation is track-resistance and hydrophobic
Silicone cold shrink application provides constant radial pressure, "living seal"
Withstands voltages up to 46kV and is 250kV BIL-rated
Meets IEEE Standard 48, Class 1 for outdoor, weather-exposed applications

3M™ Cold Shrink QT II 4604 & 4605 Series Termination Kit includes a 12 skirt, 3 piece termination. It ensures a pliable, tight seal for tape shield, wire shield and longitudinally corrugated power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages up to 46kV.

3M™ Cold Shrink QT II 4604 & 4605 Series Termination Kit is designed for terminating medium voltage cables in outdoor applications. The track resistant, silicone rubber insulated termination has a hydrophobic property and offers a long lasting service life while minimizing leakage currents in wet conditions. The lower surface stress, high dielectric constant material offers an optimized BIL performance while ensuring a leak proof, compact fit. IEEE Standard 48 Approved for Class 1 terminations.

Resources

3M™ Medium Voltage Terminations, 5 kV–46 kV, 2013 Electrical Product Catalog

3M™ Medium Voltage Terminations, 5 kV–46 kV, 2013 EMD Catalog

Catalogs

(PDF , 5MB)

EMD Shelf Life Statement

Regulatory Material

(PDF , 90KB)

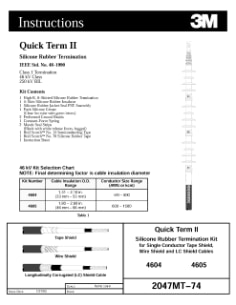

QT-II 4604 & 4605 Kits

Instructions

(PDF , 307KB)

QTII Silicone Rubber Termination Kit 4604-4605

Data Sheets

(PDF , 573KB)
