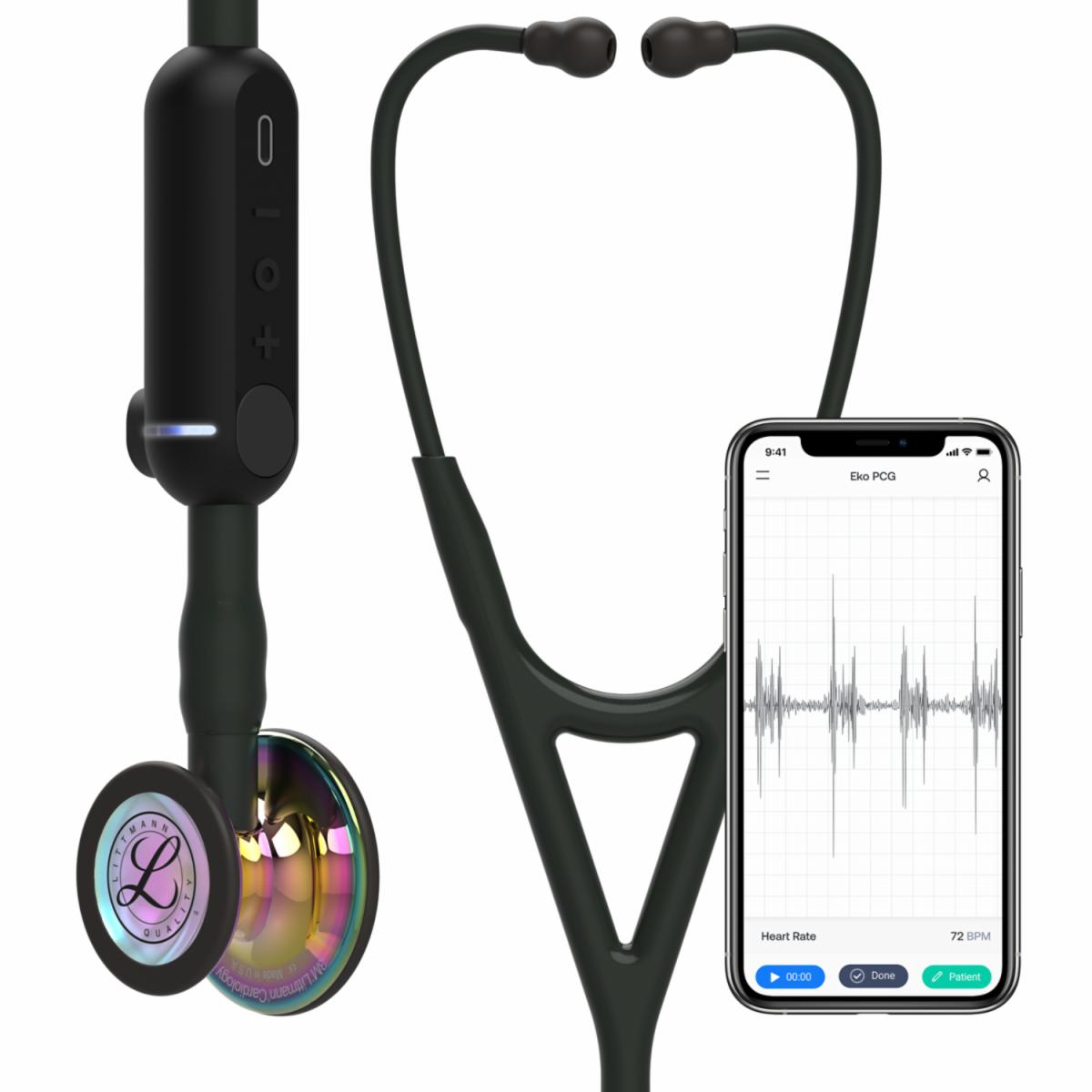

3M™ Littmann® CORE Digital Stethoscope, 8570, High Polish Rainbow Chestpiece, Black Tube, Stem and Headset, 27 inch

Catalog Number 8570UPC 00707387793685
  • Connects to Eko software to visualize and share heart sound waveforms
  • Up to 40x amplification (at peak frequency, vs. analog mode)
  • Active noise cancellation reduces unwanted background sounds
  • Toggle between analog and amplified listening modes
 More...
View all details
Specifications
Attribute Name
Value
Application
Cardiology/High Performance
Binaural Construction
Double Lumen
Brand
Littmann®
Chestpiece Finish
High Polish, Rainbow
Chestpiece Technology
Double Sided
Chestpiece Weight
3.1 Ounce
Chestpiece Weight (Metric)
87 g
Diaphragm Diameter (Metric)
4.3 cm
Diaphragm Material
Epoxy/Fiberglass
Diaphragm Type
Tunable, single-piece
Eartip Type
Soft Sealing
Extra Eartips
Yes
Headset Material
Wide diameter aerospace alloy / Anodized aluminum
Model
CORE
Net Weight (Metric)
230 g
Occupation
Anesthesiologist, Cardiologist, Emergency Physician, EMT/EMS, Family Practitioner, Internist, Medical Student, Nurse, Pediatrician
Performance
10
Product Color
Black, Rainbow
Small Diaphragm Diameter
1.3 in
Small Diaphragm Diameter (Metric)
3.3 cm
Special Adaptors
No
Tube Color
Black
Product Details
  • Connects to Eko software to visualize and share heart sound waveforms
  • Up to 40x amplification (at peak frequency, vs. analog mode)
  • Active noise cancellation reduces unwanted background sounds
  • Toggle between analog and amplified listening modes
  • Soft-sealing ear tips provide an excellent acoustic seal and comfortable fit
  • Tunable, dual-sided stainless steel chestpiece with open or closed bell
  • Designed for use with adult and pediatric patients
  • FDA-cleared and HIPAA compliant

A new class of clarity

The 3M™ Littmann® CORE Digital Stethoscope features the outstanding acoustics, comfort and quality of a Littmann cardiology-grade stethoscope enhanced by powerful digital technology. Features like up to 40x amplification1 and active noise cancellation can help you auscultate with greater confidence. The 3M Littmann CORE Stethoscope connects with Eko software on a smart device2 to visualize, record and share data.

Take listening to a whole new level

The FDA-cleared 3M Littmann CORE Stethoscope toggles between analog and amplified listening modes so you can listen how you want to during assessments. Tunable diaphragm technology—a 3M invention—lets you hear different frequency sounds by simply adjusting the pressure on the chestpiece. Hold the chestpiece with light pressure on the patient to hear low frequency sounds; press a little more to hear higher frequency sounds. Soft-sealing ear tips conform to individual ears for optimal comfort and excellent sound occlusion.

The 3M Littmann CORE Stethoscope works with Eko software on iOS and Android devices, giving you a HIPAA compliant means to save and annotate 15, 30, 60 or 120-second recordings in a secure dashboard. Create a library of heart sounds to monitor the progressions of a disease or for education, and securely share recordings with colleagues. The 3M Littmann CORE Stethoscope can be used with Eko Artificial Intelligence to aid in the detection of murmurs (AI purchased separately).

The 3M Littmann CORE Stethoscope combines the Eko CORE attachment and the 3M Littmann Cardiology IV Stethoscope. Please visit the respective User Manuals for product instructions and guidance.

Eko Core User Manual
3M Littmann Cardiology IV User Manual

140X amplification based on comparison of analog versus electronically assisted amplified listening with maximum volume at the peak frequency (125 Hz).
2Smart device not included
