  6. 3M™ DBI-SALA® Nano-Lok™ Self Retracting Lifeline with Anchor Hook, Web 3101238, 6 ft. (1.8m), 1 EA

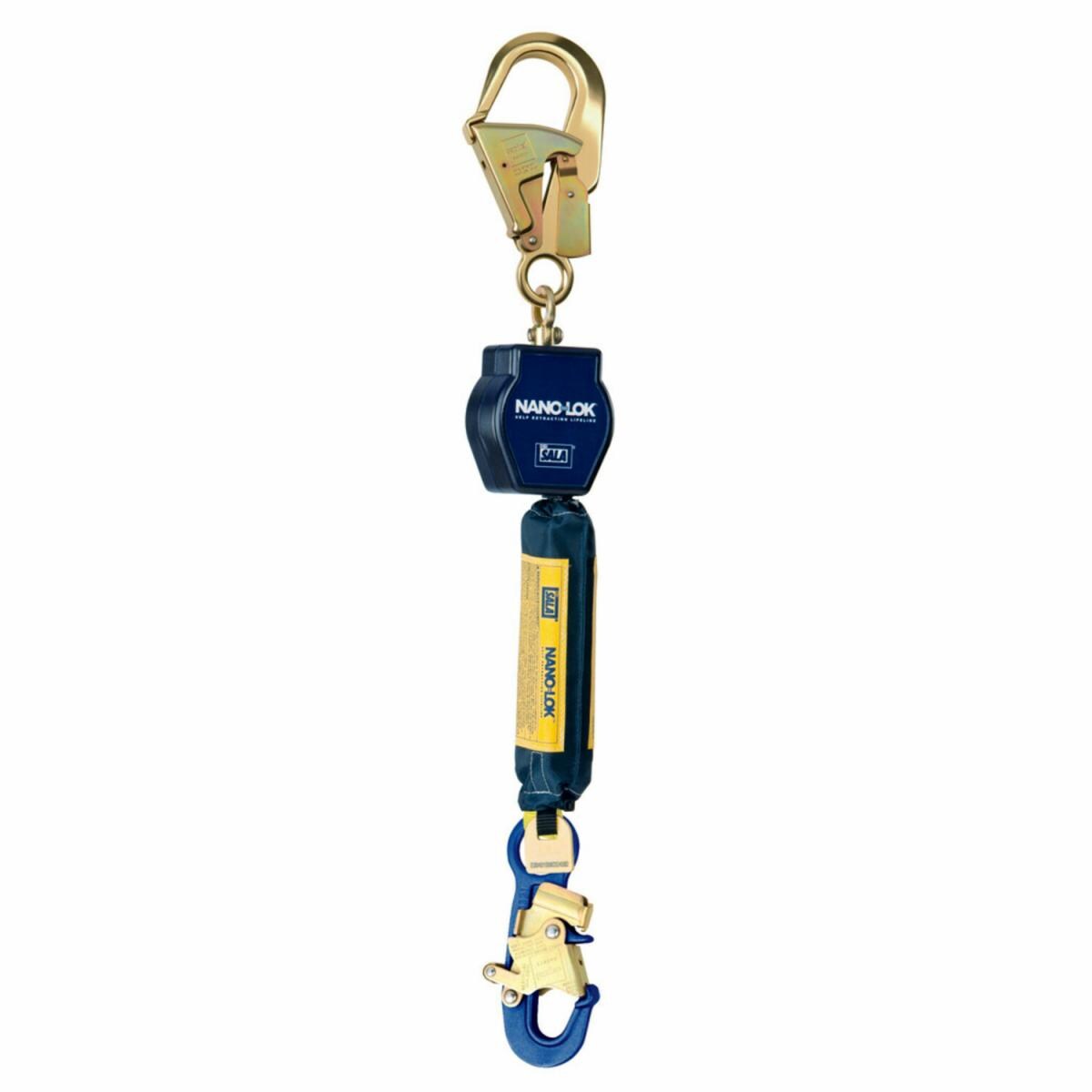

3M™ DBI-SALA® Nano-Lok™ Self Retracting Lifeline with Anchor Hook, Web 3101238, 6 ft. (1.8m), 1 EA

3M ID 70007454930UPC 008407790128243M Product Number 3101238
Discontinued
  • Swiveling anchorage loop with carabiner
  • Smart activating brake system combines ANSI Class A & B to provide fall clearance as low as 4 ft.
  • Self-locking snap hook on lifeline
  • Extremely compact, lightweight design
 More...
View all details
For industrial/occupational use only. Not for consumer sale or use.
Specifications
Attribute Name
Value
Anchor Connection Type
Snap Hook
Brand
DBI-SALA®
Case Quantity
1
Connected Safety ID Equipped
Yes
Dimensions
(26.50x3.50x2.00)in
Harness Connection Type
Rebar Hook
Housing Material
Nylon Thermoplastic
Lifeline Length (Imperial)
6 ft
Lifeline Length (Metric)
1.8 m
Lifeline Material
Web
Material
Polyester Web
Mounting Type
Overhead Anchor Point
Overall Length (Imperial)
6 ft
Product Type
Self Retracting Lifeline with Anchor Hook - Web
Recommended Industry
Construction, General Industrial
Specifications Met
ANSI A10.32, ANSI Z359.1, ANSI Z359.14, OSHA 1910.66, OSHA 1926.502
Weight (Imperial)
2.8 lb.
Weight Capacity
420 lbs. (190 kg)
Weight Capacity (Imperial)
420 lb.
Weight Capacity (Metric)
190 kg
Details
  • Swiveling anchorage loop with carabiner
  • Smart activating brake system combines ANSI Class A & B to provide fall clearance as low as 4 ft.
  • Self-locking snap hook on lifeline
  • Extremely compact, lightweight design
  • Tough and impact-resistant aluminum or thermoplastic housing
  • High capacity external energy absorber and impact indicator
  • Quick activating speed sensing brake system
  • 3M™ Connected Safety ID (CSID) equipped
  • Available in multiple styles and configurations

3M™ DBI-SALA® Nano-Lok™ Self-Retracting Lifeline (SRL) with Anchor Hook is designed for ease of use and is ideal for direct connection to most harnesses. The SRL’s extremely compact and lightweight design is virtually unnoticeable on one’s back, staying out of the worker’s way and making it ideal as a lanyard replacement. Focusing on strengthening the worker's comfort and safety as the highest priorities, 3M™ DBI-SALA® Nano-Lok™ Personal Self-Retracting Lifeline with Anchor Hook combines lightweight design with industrial-strength durability and function.

Nano Lok is ergonomically designed for ease of use and is ideal for direct connection to most harnesses. The extremely compact and lightweight design is virtually unnoticeable on your back, staying out of the worker’s way and making it ideal as a lanyard replacement. Whether your application requires single or twin leg configurations, mounting to an overhead anchor or for connection directly to harness, there are more than 30 models to choose from to suit almost any application. Nano Lok locks quickly—stopping a fall within inches—providing more protection at low heights. In addition, tension is always kept on the lifeline, which reduces dragging, snapping and trip falls. Both features are key safety improvements.
