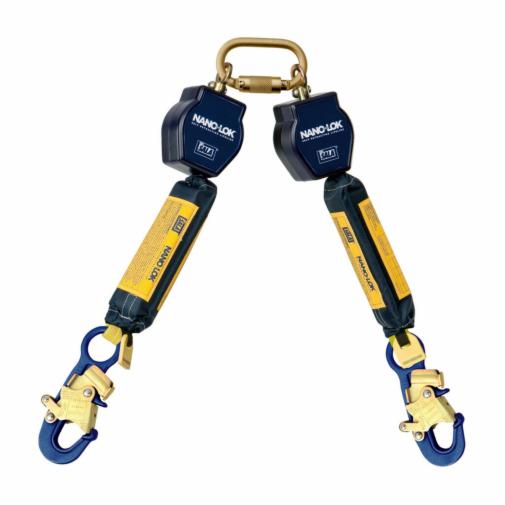

3M™ DBI-SALA® Nano-Lok™ Twin-Leg Quick Connect Self Retracting Lifeline, Web 3101272, 6 ft. (1.8 m), 1 EA

  • 3M Product Number 3101272
  • 3M ID 70007443909
  • UPC 00840779012886,008407790128

Compact & lightweight design

Quick activating speed sensing brake system

Durable thermoplastic housing

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 273KB)
Discontinued

Specifications

Details

Highlights
  • Compact & lightweight design
  • Quick activating speed sensing brake system
  • Durable thermoplastic housing
  • Swivelling anchorage loop
  • Built-in connector for direct attachment to harness
  • High capacity external energy absorber and impact indicator
  • RFID equipped and capatible with inventory management system
  • Available in multiple styles and configurations

3M™ DBI-SALA® Nano-Lok™ Self-Retracting Lifeline is lightweight with a compact design and industrial-strength durability. 3M™ DBI-SALA® Nano-Lok™ Self-Retracting Lifeline offers versatility for many different industrial applications.

Nano Lok is ergonomically designed for ease of use and is ideal for direct connection to most harnesses. The extremely compact and lightweight design is virtually unnoticeable on your back, staying out of the worker’s way and making it ideal as a lanyard replacement. Whether your application requires single or twin leg configurations, mounting to an overhead anchor or for connection directly to harness, there are more than 30 models to choose from to suit almost any application. Nano Lok locks quickly—stopping a fall within inches—providing more protection at low heights. In addition, tension is always kept on the lifeline, which reduces dragging, snapping and trip falls. Both features are key safety improvements.

Resources

Reviews

Related products

Anchor Connection Type Snap Hook
Brands DBI-SALA®
Connected Safety ID Equipped Yes
Dimensions 21.20x3.50x2.00in
Harness Connection Type Connector for Dorsal Attachment to Fixed D-ring Harnesses
Housing Material Nylon Thermoplastic
Lifeline Length (Imperial) 6 ft
Lifeline Length (Metric) 1.8 m
Lifeline Material Web
Mounting Type Direct to Harness Back
Overall Length (Imperial) 6 ft
Product Series Nano-Lok™
Product Type Twin-Leg Quick Connect Self Retracting Lifeline - Web
Recommended Industry Oil & Gas, Wind Energy, Transportation, Utilities, Construction, General Industrial
Specifications Met OSHA 1910.66, ANSI A10.32, OSHA 1926.502, ANSI Z359.1, ANSI Z359.14
Weight (Imperial) 4.3 lb.
Weight Capacity 420 lbs. (190 kg)
Weight Capacity (Imperial) 420 lb.
Weight Capacity (Metric) 190 kg
