  6. 3M™ DBI-SALA® Nano-Lok™ Order Picker Self Retracting Lifeline, Single-leg, Web 3101239, 6 ft. (1.8m)

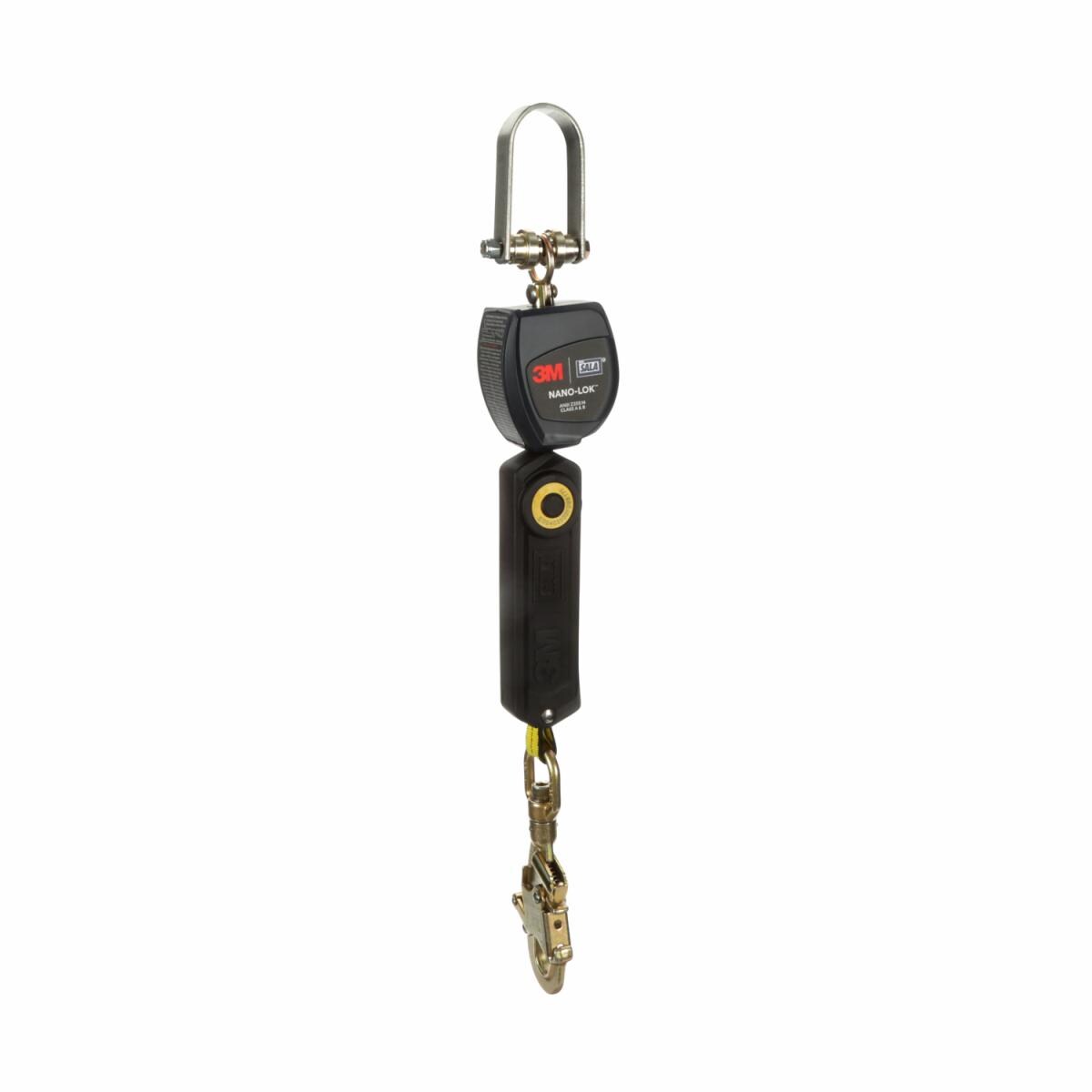

3M™ DBI-SALA® Nano-Lok™ Order Picker Self Retracting Lifeline, Single-leg, Web 3101239, 6 ft. (1.8m)

3M Product Number 31012393M ID 70007454948UPC 00840779012831
  • Lightest ANSI certified personal SRL that allows for knee level tie-off
  • Smart activating brake system combines ANSI Class A & B to provide fall clearance as low as 4 ft.- up to 13 ft. less than lanyards
  • Lightweight speed connect system reduces connect and disconnect time by up to 60%
  • Durable nitrile rubber energy absorber cover designed to last 4 times longer
 More...
View all details
For industrial/occupational use only. Not for consumer sale or use.

Specifications
Attribute Name
Value
Anchor Connection Type
Snap Hook
Anchor Hook Material
Steel & Stainless Steel
Brand
DBI-SALA®
Carabiner/Hook Material
Steel
Case Quantity
1
Connected Safety Identification (CSID) Equipped
Yes
Dimensions
21.00x3.50x2.00in
Harness Connection Type
Cab-mount Connector
Housing Material
Nylon Thermoplastic
Housing Type
Thermoplastic
Lifeline Hook Material
Steel
Lifeline Length (Imperial)
6 ft
Lifeline Length (Metric)
1.8 m
Lifeline Material
Web
Material
Dyneema Web
Mounting Type
Cab-Mount
Overall Length (Imperial)
6 ft
Product Type
Order Picker Self Retracting Lifeline - Web
Recommended Industry
Construction, General Industrial, Oil & Gas, Transportation, Utilities
Specifications Met
ANSI Z359.14 Class A/B, OSHA 1926.502
Style
Single Leg
Weight (Imperial)
2.927 lb.
Weight (Metric)
1.328 kg
Weight Capacity
420 lbs. (190 kg)
Weight Capacity (Imperial)
420 lb.
Weight Capacity (Metric)
190 kg
Details
  • Lightest ANSI certified personal SRL that allows for knee level tie-off
  • Smart activating brake system combines ANSI Class A & B to provide fall clearance as low as 4 ft.- up to 13 ft. less than lanyards
  • Lightweight speed connect system reduces connect and disconnect time by up to 60%
  • Durable nitrile rubber energy absorber cover designed to last 4 times longer
  • Reduced energy abosorber size is more user friendly and convenient
  • 6 ft. (1.8m) 3/4" (19mm) Dyneema® fiber and polyester web lifeline
  • AAF 900lbs and MAF 1,350lbs
  • Down to knee level tie-off for 310lbs. capacity, 420lbs. capcity shoulder height and higher
  • 3M™ Connected Safety ID (CSID) equipped
  • Equipped with 3M™ Connected Safety ID (CSID), a pre-programed RFID tag that makes it easier to track and manage equipment using the 3M™ Inspection and Asset Management System (system available by subscription, details here)

6 ft. (1.8m) of 3/4" (19mm) Dyneema® fiber and polyester web and steel swiveling snap hook on leg end, cab mount order picker connector.

Nano Lok™ is ergonomically designed for ease of use and is ideal for direct connection to most harnesses. The extremely compact and lightweight design is virtually unnoticeable on your back, staying out of the worker’s way and making it ideal as a lanyard replacement. Whether your application requires single or twin leg configurations, mounting to an overhead anchor or for connection directly to harness, there are more than 30 models to choose from to suit almost any application. Nano Lok™ locks quickly—stopping a fall within inches—providing more protection at low heights. In addition, tension is always kept on the lifeline, which reduces dragging, snapping and trip falls. Both features are key safety improvements.
