  6. 3M™ DBI-SALA® Saflok™ Mining Bolt Anchor with Swivelling O-ring 2100154, 1 EA

3M™ DBI-SALA® Saflok™ Mining Bolt Anchor with Swivelling O-ring 2100154, 1 EA

3M Product Number 21001543M ID 70007451050UPC 00648250160190
Discontinued
  • Installs into 1-7/8 in. (47mm) friction rock bolts
  • Use vertically in wall or horizontally in ceiling
  • Portable and reusable
  • Compact and lightweight design
 More...
View all details
For industrial/occupational use only. Not for consumer sale or use.
Specifications
Attribute Name
Value
Anchor Install Type
Reusable
Attachment Type
Wedge
Brand
DBI-SALA®
Case Quantity
1
Connected Safety ID Equipped
No
Dimensions
470.00x76.00x38.00mm
Install Type
Removable
Material
Zinc Plated Steel
Product Color
Silver
Product Type
Mining Bolt Anchor with Swivelling O-ring
Recommended Industry
Construction, General Industrial, Mining, Oil & Gas
Specifications Met
ANSI Z359.1, OSHA 1926.502
Weight (Imperial)
1.5 lb.
Weight Capacity
310 lbs. (141 kg)
Weight Capacity (Imperial)
310 lb.
Weight Capacity (Metric)
141 kg
Details
  • Installs into 1-7/8 in. (47mm) friction rock bolts
  • Use vertically in wall or horizontally in ceiling
  • Portable and reusable
  • Compact and lightweight design
  • High strength steel and aluminum construction
  • Swiveling O-ring tie-off point
  • Easy grip trigger for fast installation
  • Shielded load and chock release cables

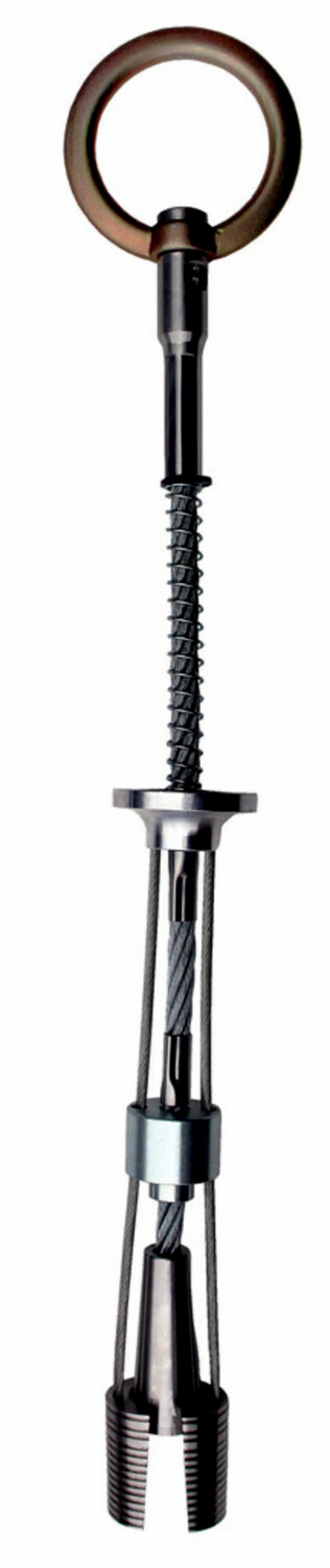

Mining wedge bolt anchor for 1-7/8 in. (47mm) friction bolts with swiveling O-ring.

Our anchorage connectors are built from top quality materials guaranteeing high strength and durability to stand up to the toughest environments. Anchorage connectors are the unsung heroes of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage. Your choice of anchor depends on the type of work being done. Anchorages are sold by what they connect to (general/all purpose, steel, concrete, roof or specialty), whether they are fixed or mobile, and whether they are permanent or portable. They all must provide a secure point of attachment for a complete personal fall arrest system, and must be capable of supporting a load of 5,000 lbs. (22kN) or of meeting OSHA’s criteria of a 2-to-1 safety factor.
