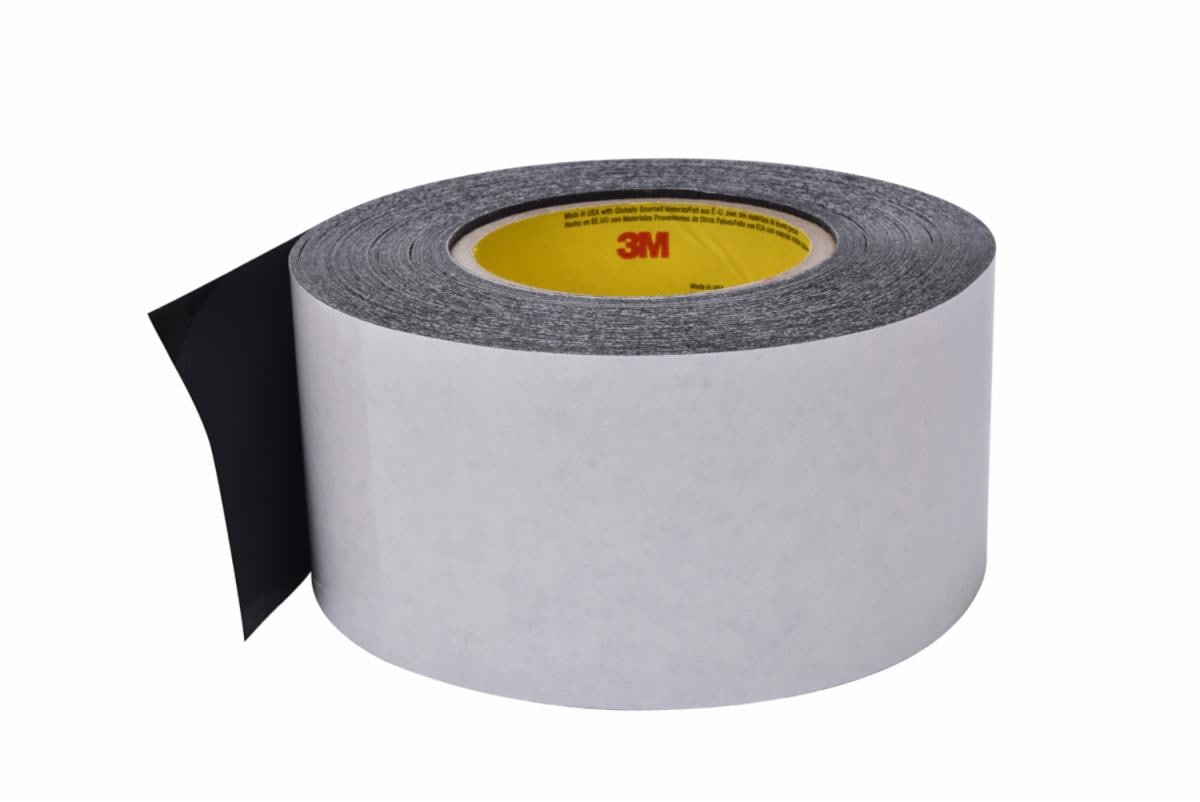

3M™ Double Coated Tape 97002, 2-3/8 in x 300 yd, 5 Roll/Case

  • Part Number 97002
  • 3M Product Number 97002
  • 3M ID 7010310813
  • UPC 00051125657440

Ideal for splicing heavy papers and other roll goods

Bonds to a variety of ether and ester foams, metals, plastics and composite materials

Offers excellent UV and temperature resistance

View more details

Details

Highlights
  • Ideal for splicing heavy papers and other roll goods
  • Bonds to a variety of ether and ester foams, metals, plastics and composite materials
  • Offers excellent UV and temperature resistance
  • Provides high peel and tack performance
  • 74# PCK liner adds stability and moisture resistance

3M™ Double Coated Tape 97002 is a 2 mil black polyester (PET) film tape coated on both sides with high performance pressure sensitive acrylic adhesive. This double sided tape provides permanent bond on foams, plastics, metals and composite materials subjected to a wide range of environmental conditions. The 74-lb. polycoated kraft paper liner adds stability for processing.

Bonds to Ether and Ester Foams, Metals, Plastics and More
Our 3M™ Double Coated Tape 97002 is a high performance tape specifically designed for the most demanding splicing and bonding applications. The acrylic adhesive is mounted on each side of a black polyester (PET) film carrier which improves the handling of the tape. The medium-firm acrylic delivers high initial and final adhesion for efficient laminating procedures. and adds stability during processes such as die-cutting and slitting.

Recommended Applications:

  • Splicing
  • Foam lamination
  • Gasket attachment
  • Blackout applications

What is Double Coated Tape?
In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that is removed at the time of application. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are available in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in electronics, automotive, aerospace, general industrial, web processing and fabrication markets.

Bringing Better Ideas to the Surface through Science
In our 3M Industrial Adhesives and Tapes Division, we apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, our technologies help customers like you deliver competitive products to the market faster and more efficiently.

Typical properties
