  6. 3M™ 9000 Series Retrofit Filter Cartridge CFS9110-S, 5631621, Standard Length, 5 um NOM, 1.5 gpm, 4/Case

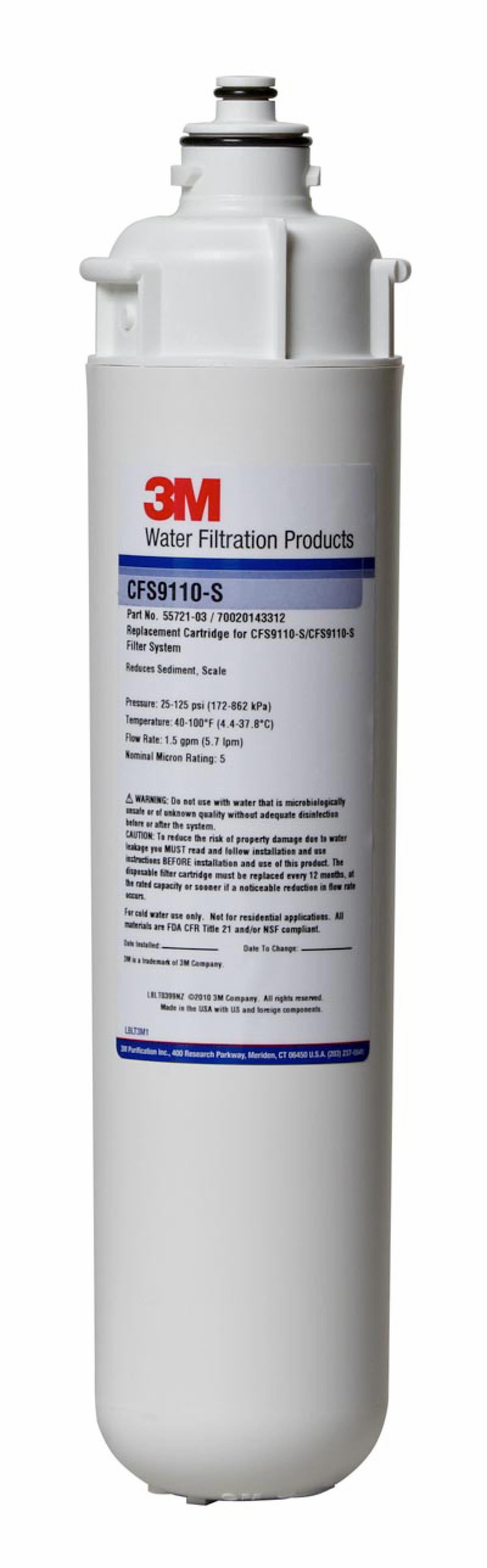

3M™ 9000 Series Retrofit Filter Cartridge CFS9110-S, 5631621, Standard Length, 5 um NOM, 1.5 gpm, 4/Case

Part Number 56316213M Product Number CFS9110-S3M ID 70020319490UPC 00051128889558
  • Cartridges fit in select competitive systems
  • No pre-activation required
  • Sanitary Quick Change (SQC) encapsulated cartridges reduce contamination during change-outs
  • SQC design allows for quick cartridge change-outs without a need for a filter wrench
 More...
View all details
Specifications
Attribute Name
Value
Application
Coffee and Hot Tea, Competitive Fit Applications, Ice
Brand
3M™
Filter Type
SQC Replacement Filter Cartridge
Flow Rate (Imperial)
1.5 GPM
Flow Rate (lpm)
5.7 Litre per minute
Flow Rate (Metric)
5.7 Litre per minute
Industries
Commercial
Maximum Operating Temperature (Celsius)
37.8 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
100 Degree Fahrenheit
Micron Rating
5 μm
Overall Diameter (Imperial)
3.4 in
Overall Diameter (Metric)
8.6 cm
Overall Length (Imperial)
14.4 in
Overall Length (Metric)
36.5 cm
Pressure Range
125 psi
Pressure Range (Metric)
862 kPa
Reduction Claims
Scale Inhibition, Sediment
Series
3M™ CFS Series
Units per Case
4
Product Details
  • Cartridges fit in select competitive systems
  • No pre-activation required
  • Sanitary Quick Change (SQC) encapsulated cartridges reduce contamination during change-outs
  • SQC design allows for quick cartridge change-outs without a need for a filter wrench
  • NSF Certified Cartridges*
  • FDA CFR-21 Compliant Materials**

3M™ Water Filtration Products 9000 Series Retrofit Filter Cartridges are for use in select competitive systems manufactured by Everpure®.

We designed the 3M™ Water Filtration Products 9000 Series Retrofit Filter Cartridges as an economical way to provide the benefits of 3M Water Filtration Products in select competitive systems without incurring additional capital expense. Our line of 9000 Series cartridges offer a choice of medias and micron ratings, as well as optional integrated scale inhibition that provides solutions for varying water conditions. They do not require activation prior to replacement and allow the operator to change the cartridge quickly.

*3M™ Water Filtration Product 9000 Series Retrofit Filter Cartridges are NSF certified (CFS9110, CFS9112, CFS9812X, CFS9720, CFS9110-S, CFS9112-S, CFS9812X-S, CFS9710-S, CFS9720-S, CFS9112EL, CFS9112EL-CL, CFS9812ELX, CFS9112EL-S, and CFS9812ELX-S). Visit www.nsf.org for specific claims associated with each product.

**Surfaces that are in contact with water are FDA CFR-21 Compliant.

An industry first, our innovative Sanitary Quick Change (SQC) design, allows for fast and easy cartridge change-outs in seconds without having to contact the filter media or the need for a filter wrench. Our High Flow SQC is one of the industry's most advanced water filtration system features.

9000 Series Best Features

    Filter cartridges are double o-ring seal type System maximum operating pressure of 125 psi (862 kPa) and operating temperature of 100°F (38°C) Some models incorporate carbon block media and scale inhibitor Cartridge body is constructed from high-impact glass-filled polypropylene Cartridges are sanitary in design, requiring no contact with the filter media during cartridge change-out Micron ratings from 0.5. to 5 nominal Filter cartridges require no pre-activation
